2032 A89 - Electrolux/AYP Walk-Behind Mower (1998) ENGINE BRIGGS AND STRATTON Parts Diagram

Walk-Behind Mower

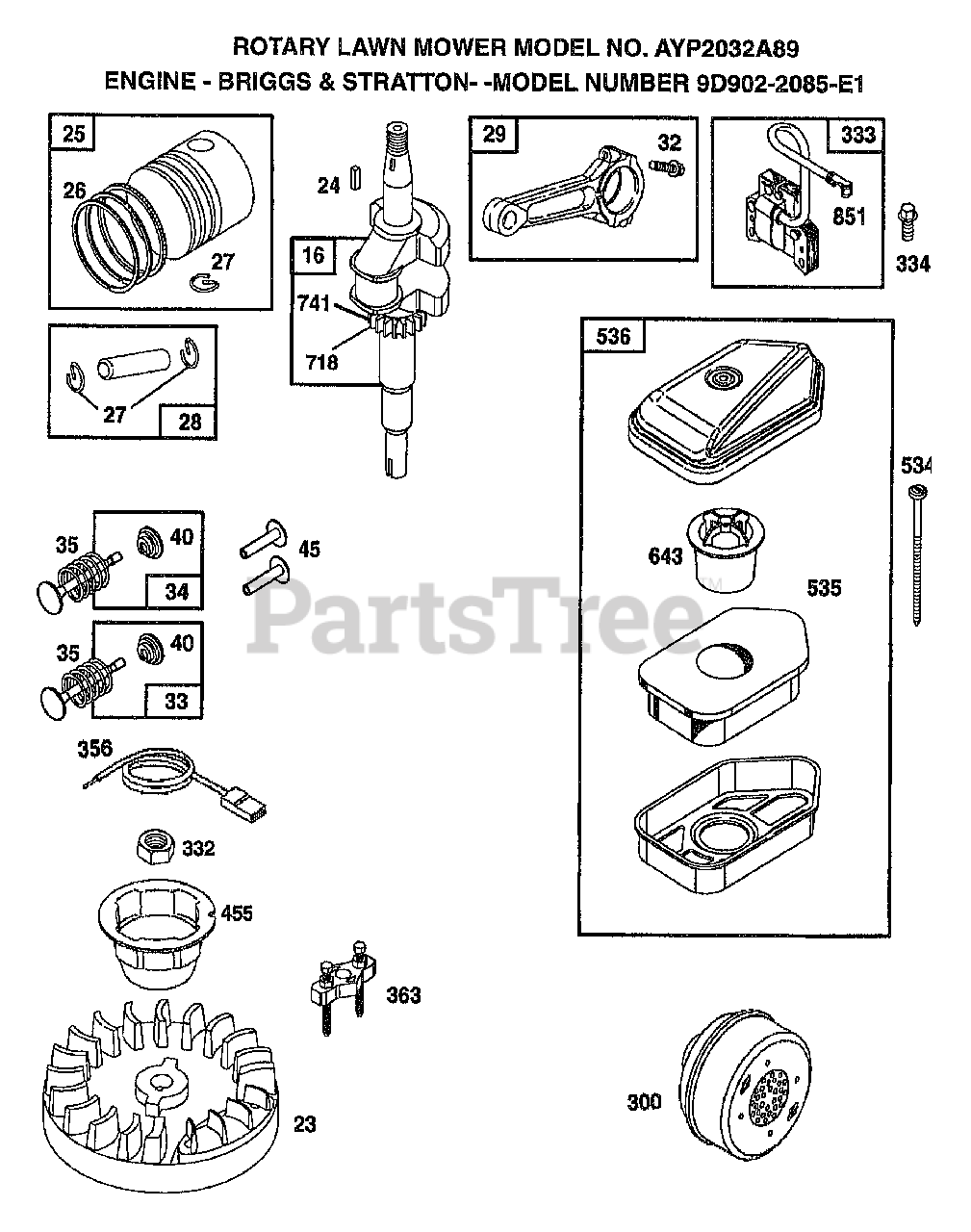

ENGINE BRIGGS AND STRATTON Parts Diagram

  • Title

1

Briggs & Stratton 399164

CYLINDER ASSEMBLY
(Superseded to 699653)

$

$

Not available

2

Briggs & Stratton 293708

BUSHING, CYLINDER
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

SEAL, OIL
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

4

Briggs & Stratton 395384

SUMP, ENGINE
(Superseded to 590569)

$104.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 214277

HEAD, CYLINDER
(Superseded to 790169)

$

$

Not available

7

Briggs & Stratton 272694

GASKET, CYLINDER HEAD
(Superseded to 698717)

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495785

BREATHER, VALVE CHAMBER
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272602

GASKET, VALVE COVER
(Superseded to 695890)

$4.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 94719

SCREW, SEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 231774

TUBE, BREATHER
(Superseded to 691245)

$8.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270833

GASKET, CRANKCASE, STANDARD .015"
(Superseded to 692218)

$

$

Not available

13

Briggs & Stratton 93111

SCREW, CYLINDER HEAD
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 94720

PLUG, OIL DRAIN
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 499014

CRANKSHAFT
(Superseded to 796211)

$155.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 293709

BUSHING, ENGINE SUMP

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 391483

SEAL, OIL
(Superseded to 391483S)

$5.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 94682

SCREW
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 495046

FLYWHEEL, MAGNETO ROD ASSY, CONNECTING
(Superseded to 799682)

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 498668

PISTON ASSEMBLY, STANDARD
(Superseded to 795691)

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498669

PISTON ASSEMBLY, .010" OVERSIZE

$54.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498670

PISTON ASSEMBLY, .020" OVERSIZE
(Superseded to 795689)

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 498671

PISTON ASSEMBLY, .030" OVERSIZE

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498680

RING SET, STANDARD SIZE

$

$

Not available

26

Briggs & Stratton 498681

RING SET, .010" OVERSIZE

$26.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498682

RING SET, .020" OVERSIZE

$42.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 498683

RING SET, .030" OVERSIZE

$21.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

LOCK, PISTON PIN
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

PIN ASSEMBLY, PISTON .005" OVERSIZE

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 294201

ROD ASSEMBLY, CONNECTING
(Superseded to 699655)

$39.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 296079

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN

$18.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 94699

SCREW
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 296676

VALVE, EXHAUST

$23.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 296677

VALVE, INTAKE

$24.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 260552

SPRING, INTAKE VALVE
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

37

Briggs & Stratton 225013

GUARD, FLYWHEEL
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 93312

RETAINER, VALVE SPRING
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 230173

TAPPET, VALVE
(Superseded to 691762)

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 493747

GEAR, CAM
(Superseded to 691998)

$61.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 491688

OIL SLINGER GEAR & BRACKET
(Superseded to 698690)

$15.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

GASKET, INTAKE ELBOW
(Superseded to 270345S)

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 93485

SCREW
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 499441

HOUSING, REWIND STARTER
(Superseded to 692144)

$45.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 499901

PULLEY, STARTER

$18.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280406

ROPE, REWIND STARTER
(Superseded to 280406S)

$8.49

$

In Stock, only 4 left!

0

59

Briggs & Stratton 396892

INSERT, HANDLE

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

HANDLE, REWIND STARTER

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94904

SCREW, SEMS
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

73

Briggs & Stratton 225381

SCREEN, ROTATING
(Superseded to 699850)

$35.99

$

Usually ships in 2-12 days

0

96

Briggs & Stratton 224412

VALVE THROTTLE
(Superseded to 691190)

$7.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 494409

SEAT, NEEDLE VALVE

$

$

Not available

116

Briggs & Stratton 271485

SEAL, FILLER TUBE
(Superseded to 691876)

$5.49

$

In Stock, Qty 11

0

125

Briggs & Stratton 498809

CARBURETOR ASSY

$52.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 281437

SHAFT THROTTLE
(Superseded to 691931)

$19.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

GASKET, AIR CLEANER
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

TANK ASSEMBLY, FUEL

$79.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 497929

CAP, FUEL TANK
(Superseded to 497929S)

$5.49

$

In Stock, Qty 8

0

190

Briggs & Stratton 93440

SCREW, FUEL TANK MOUNTING
(Superseded to 692200)

$

$

Not available

200

Briggs & Stratton 281024

BLADE, GOVERNOR
(Superseded to 691912)

$13.99

$

In Stock, only 1 left!

0

201

Briggs & Stratton 262753

LINK, GOVERNOR
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 263114

SPRING, GOVERNOR
(Superseded to 691297)

$7.49

$

In Stock, only 3 left!

0

209A

Briggs & Stratton 263109

SPRING, GOVERNOR
(Superseded to 691859)

$6.99

$

In Stock, Qty 20+

0

258

Briggs & Stratton 95120

SCREW
(Superseded to 691146)

$3.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 394569

MUFFLER, EXHAUST
(Superseded to 394569S)

$10.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 499165

HOUSING, BLOWER
(Superseded to 694236)

$83.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 221805

SHIELD, CYLINDER
(Superseded to 690400)

$6.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

SCREW HEX HD
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 94877

NUT, FLYWHEEL
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 496914

ARMATURE, MAGNETO
(Superseded to 591420)

$53.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 94731

SCREW, SEMS
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

335

Briggs & Stratton 94732

SCREW
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 497833

WIRE GROUND
(Superseded to 692390)

$

$

Not available

363

Briggs & Stratton 19069

PULLEY, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

369

Briggs & Stratton 263073

SPRING, RETAINER
(Superseded to 691855)

$4.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 92987

NUT, HEX
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

387

Briggs & Stratton 494408

PRIMER BULB
(Superseded to 694394)

$4.49

$

In Stock, Qty 7

0

390

Briggs & Stratton 262764

SPRING, DIAPHRAGM
(Superseded to 691839)

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 262734

SCREEN, CARBURETOR
(Superseded to 691837)

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 495770

DIAPHRAGM CARB
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

455

Briggs & Stratton 225502

CUP, FLYWHEEL
(Superseded to 691236)

$11.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 281503

RETAINER, STARTER
(Superseded to 692299)

$4.99

$

In Stock, only 3 left!

0

459

Briggs & Stratton 281505

PAWL, RATCHET
(Superseded to 281505S)

$3.49

$

In Stock, Qty 9

0

461

CHECK WITH SUPPLIER

$

$

Not available

482

Briggs & Stratton 94851

SCREW
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 281081

PLUG, OIL FILLER
(Superseded to 691913)

$9.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

GROMMET, BREATHER TUBE
(Superseded to 692189)

$4.49

$

In Stock, Qty 8

0

634

Briggs & Stratton 93865

SCREW
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 272235

ELEMENT, AIR CLEANER
(Superseded to 272235S)

$5.99

$

In Stock, Qty 5

0

536

Briggs & Stratton 493492

CLEANER ASSEMBLY, AIR
(Superseded to 698472)

$

$

Not available

608

Briggs & Stratton 499706

STARTER, REWIND

$65.99

$

In Stock, only 2 left!

0

612

Briggs & Stratton 496046

PIPE FUEL
(Superseded to 496046S)

$8.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

SEAL, FUEL INTAKE TUBE
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 498207

BRACKET, CONTROL
(Superseded to 691446)

$39.99

$

In Stock, only 4 left!

0

625

Briggs & Stratton 298775

TUBE, FUEL INTAKE
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 280566

WASHER THROTTLE SHAFT
(Superseded to 691321)

$4.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

643

Briggs & Stratton 280972

CUP, AIR CLEANER
(Superseded to 691911)

$9.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94047

SPACER
(Superseded to 691633)

$4.99

$

In Stock, only 1 left!

0

718

Electrolux/AYP 231993

P/N CONFLICT - CHECK WITH SUPPLIER

$

$

Not available

729

Briggs & Stratton 280470

CLIP, WIRE
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

741

Briggs & Stratton 261533

GEAR, TIMING
(Superseded to 691805)

$15.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 211172

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

GUIDE, EXHAUST VALVE

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

GUIDE, INTAKE VALVE

$14.99

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 281715

COVER, LINKAGE
(Superseded to 691349)

$6.49

$

Usually ships in 2-12 days

0

942

Briggs & Stratton 499260

BRACKET, BRAKE
(Superseded to 691487)

$34.99

$

In Stock, only 1 left!

0

973

Briggs & Stratton 281661

RING, TRIM
(Superseded to 694394)

$4.49

$

In Stock, Qty 7

0

1036

Briggs & Stratton 499332

LABEL KIT, EMISSIONS

$3.99

$

Usually ships in 2-12 days

0

2500

Electrolux/AYP 98902-1516

ENGINE

$

$

Not available

Briggs & Stratton 398211

SHORTBLOCK

$158.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298989

GASKET SET
(Superseded to 590777)

$

$

Not available
