20318 - Toro 20" Recycler Walk-Behind Mower (SN: 313000001 - 313999999) (2013) ENGINE AND BLADE ASSEMBLY Parts Diagram

20" Recycler Walk-Behind Mower

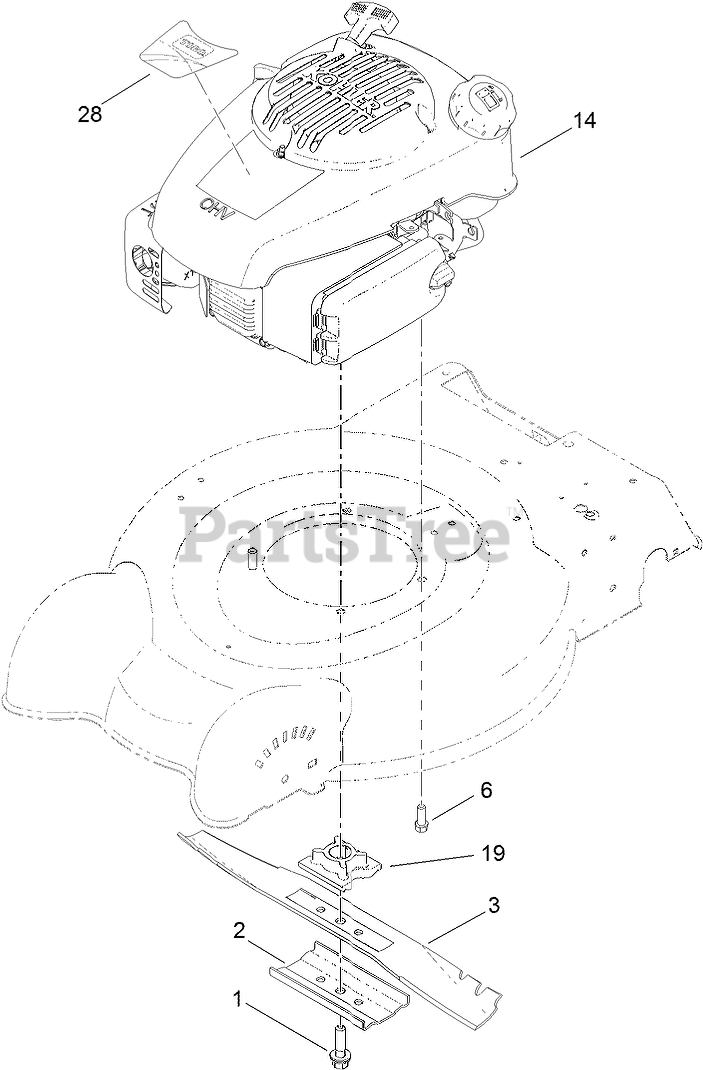

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Toro 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

14

ENGINE-KOHLER, PH-XT149-0225

Note: Not serviced separately

$

$

Not available

14

ENGINE-KOHLER, PH-XT149-0225

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

19

Toro 104-1007

RETAINER-BLADE

$72.99

$

In Stock, only 1 left!

0

28

Toro 125-5052

DECAL-ENGINE

$7.49

$

Usually ships in 3-6 days

0
