20316 - Toro 20" Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) ENGINE AND BLADE ASSEMBLY Parts Diagram

20" Recycler Walk-Behind Mower

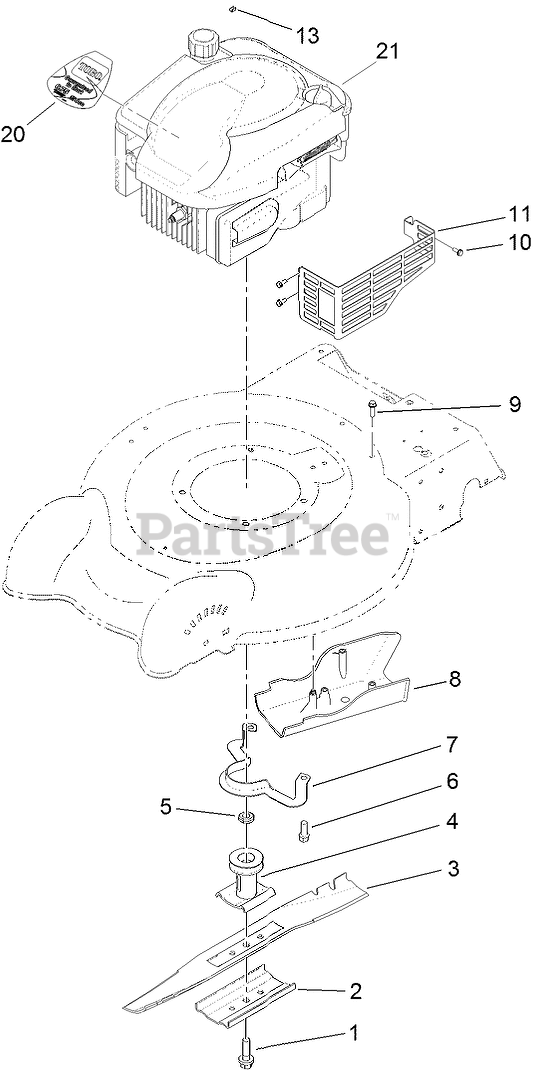

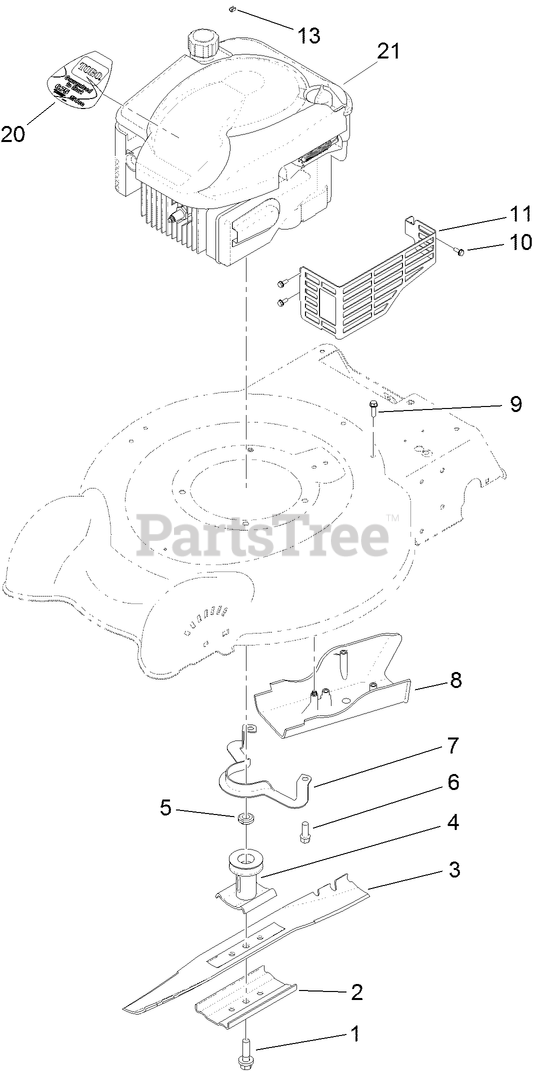

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Toro 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

8

Toro 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

11

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

13

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

20

Toro 117-1017

DECAL

$10.99

$

Usually ships in 3-6 days

0

21

ENGINE-BRIGGS, 126T05-0362-B1

Note: Not serviced separately

$

$

Not available

21

ENGINE-BRIGGS, 126T05-0362-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available
