20314 - Toro 20" Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) HOUSING ASSEMBLY Parts Diagram

20" Recycler Walk-Behind Mower

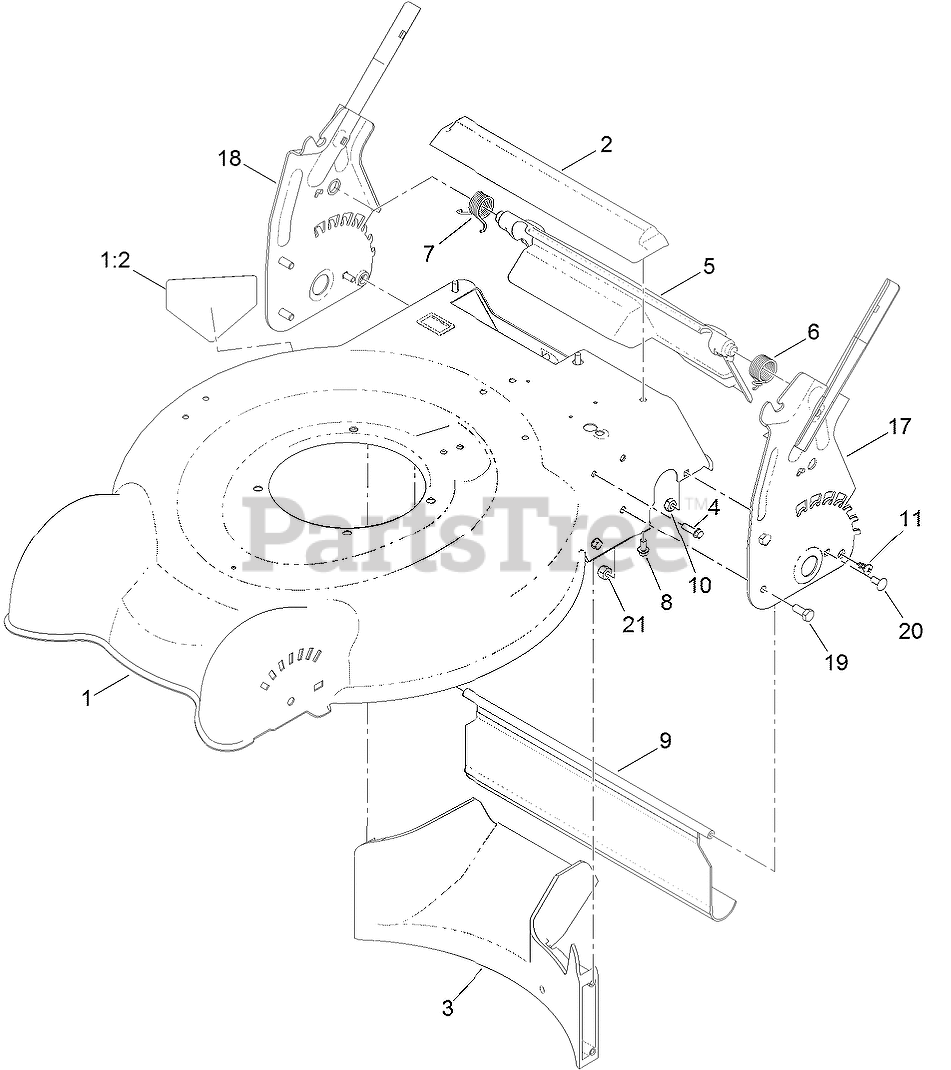

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 120-9482

HOUSING ASM

$231.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

2

Toro 112-8845

CHUTE-REAR

$12.99

$

Usually ships in 3-6 days

0

3

Toro 112-8821

BAFFLE-REAR

$31.99

$

In Stock, only 1 left!

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 119-7029

Rear Deflector ASM

$22.99

$

In Stock, only 1 left!

0

6

Toro 119-7015

SPRING-TORSION, LH

$3.49

$

In Stock, only 1 left!

0

7

Toro 119-7016

SPRING-TORSION, RH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

9

Toro 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$39.99

$

In Stock, only 1 left!

0

10

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 4 left!

0

11

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

17

Toro 119-3804-03

HOC-LH

$30.99

$

Usually ships in 3-6 days

0

18

Toro 119-3805-03

HOC-RH

$

$

Not available

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0
