20314 - Toro 20" Recycler Walk-Behind Mower (SN: 311000001 - 311999999) (2011) ENGINE AND BLADE ASSEMBLY Parts Diagram

20" Recycler Walk-Behind Mower

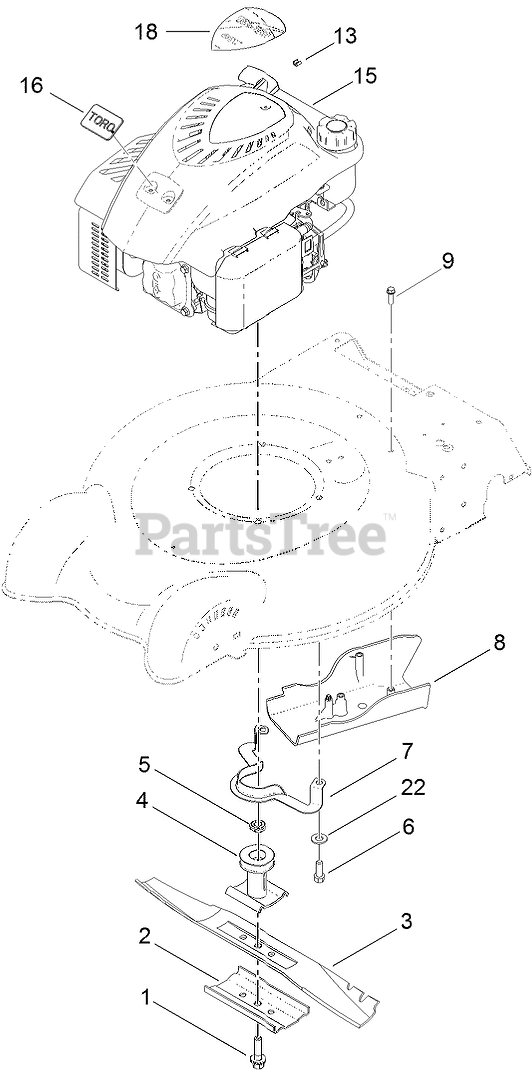

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Toro 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

8

Toro 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

13

Toro 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

15

Toro 119-1989

ENGINE-LC1P65FA
(Superseded to 139-0607)

$543.99

$

Usually ships in 3-6 days

0

16

Toro 119-3808

PLATE-LOGO, TORO

$8.49

$

Usually ships in 3-6 days

0

18

Toro 120-3315

DECAL-SHROUD
(Superseded to 121-5822)

$11.99

$

Usually ships in 3-6 days

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
