20311 - Toro 21" Whirlwind Implement (SN: 008000001 - 008999999) (1968) 21" WHIRLWIND S.P. IMPLEMENT Parts Diagram

21" Whirlwind Implement

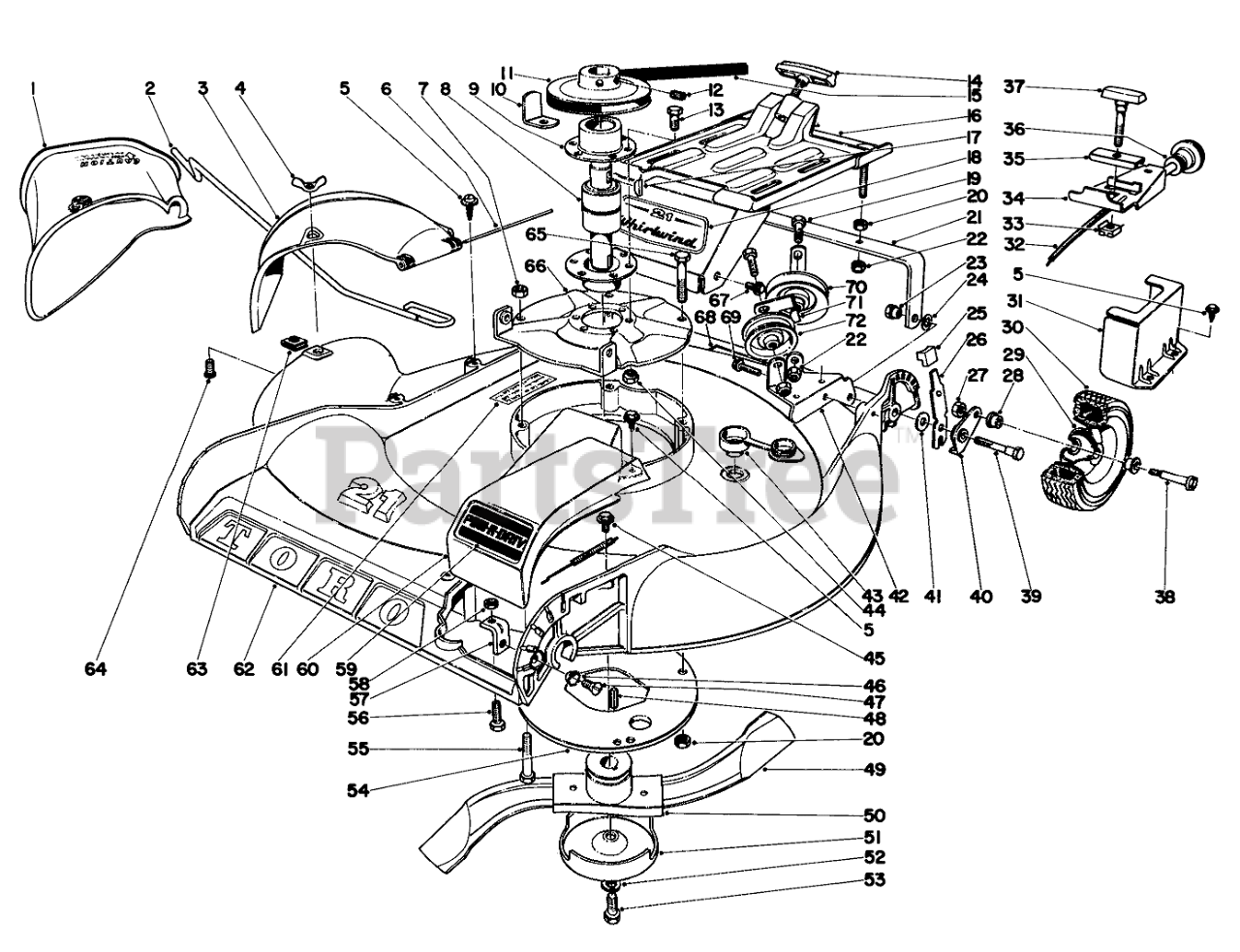

21" WHIRLWIND S.P. IMPLEMENT Parts Diagram

  • Title

1

Toro 5-3442

Attachment Bag
(Superseded to 11-0460)

$201.99

$

Usually ships in 3-6 days

0

2

Toro 3-2734

Bag Hanger

$

$

Currently unavailable

3

Toro 5-3311

Deflector
(Superseded to 71-8640)

$

$

Not available

4

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

5

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

6

Toro 3-2644

HINGE PIN

$

$

Not available

7

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3-5295

Spindle Bearing

$

$

Currently unavailable

9

Toro 3-1931

BEARING HOUSING

$

$

Not available

10

Toro 3-4815

Belt Retainer

$

$

Currently unavailable

11

Toro 3-4575

Pulley

$

$

Currently unavailable

12

Toro 3246-2

SCREW-SET, HSH

$0.99

$

Usually ships in 3-6 days

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3-7454

Clamp Assy.

$

$

Currently unavailable

15

Toro 3-4577

V-Belt

$

$

Not available

16

Toro 3-6480

Adapter Plate

$

$

Currently unavailable

17

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

18

Toro 3-7313

Decal

$

$

Currently unavailable

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

21

Toro 3-4568

Rear Support

$

$

Currently unavailable

22

Toro 32127-43

Nut

$

$

Currently unavailable

23

Toro 3-4566

Pivot Nut

$

$

Currently unavailable

24

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

25

Toro 5-0656

Knob

$

$

Not available

26

Toro 3-2637

Spring Arm

$

$

Currently unavailable

27

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

28

Toro 3-5116

Bushing
(Superseded to 5-4504)

$

$

Not available

29

Toro 3-7350

Wheel Assy. (Incl. No. 28)

$

$

Not available

30

Toro 4-2600

8 TIRE

$

$

Not available

31

Toro 3-4573

Belt Guard

$

$

Currently unavailable

32

Toro 5-3438

Control Assy

$

$

Not available

33

Toro 3290-198

Retaining Nut

$

$

Currently unavailable

34

Toro 3-5690

Angle Bracket

$

$

Currently unavailable

35

Toro 2-0330

Strap

$

$

Currently unavailable

36

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 2-0470

Clamp Assembly

$

$

Currently unavailable

38

Toro 3-2652

Bolt

$

$

Not available

39

Toro 3-4567

Pivot Screw

$

$

Currently unavailable

40

Toro 3-2634

Pivot Arm

$

$

Currently unavailable

Toro 3-2635

Pivot Arm

Note: Not illustrated

$

$

Currently unavailable

41

Toro 3-5956

Washer
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 20+

0

42

Toro 3-4574

Idler Bracket

$

$

Currently unavailable

43

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

44

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Toro 32104-82

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

46

Toro 3255-12

Lockwasher

$

$

Not available

47

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

48

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

49

Toro 5-610

Blade

$

$

Currently unavailable

50

Toro 3-7287

Retainer

$

$

Not available

51

Toro 3-6292

Scalp Cup
(Superseded to 5-9530)

$

$

Not available

52

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

53

Toro 3-5246

SPECIAL SCREW

$

$

Not available

54

Toro 3-7626

Grass Guard

$

$

Not available

55

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

56

Toro 3-7281

SCREW

$

$

Not available

57

Toro 3-7278

ADJ BRACKET

$

$

Not available

58

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

59

Toro 5-3303

Decal

$

$

Currently unavailable

60

Toro 5-3475

Belt Guard

$

$

Currently unavailable

61

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

62

Toro 5-3440

Housing

$

$

Currently unavailable

63

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

64

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

65

Toro 32140-49

Screw
(Superseded to 11-0580)

$18.99

$

Usually ships in 3-6 days

0

66

Toro 3-9750

Mounting Plate

$

$

Currently unavailable

67

Toro 32140-33

Sems Screw

$

$

Currently unavailable

68

Toro 3-5586

Serial Number Plate

$

$

Currently unavailable

69

Toro 32140-14

Sems Screw

$

$

Currently unavailable

70

Toro 3-4243

IDLER PULLEY R

$

$

Not available

71

Toro 3-4814

Belt Retainer

$

$

Currently unavailable

72

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

Toro 81064

Bag-Set of 2

Note: Not illustrated

$

$

Currently unavailable
