2027 (2690388) - AGCO 54" Garden Tractor, 27hp Briggs & Stratton Diesel Electrical Group - 27HP Briggs & Stratton Diesel Parts Diagram

54" Garden Tractor, 27hp Briggs & Stratton Diesel

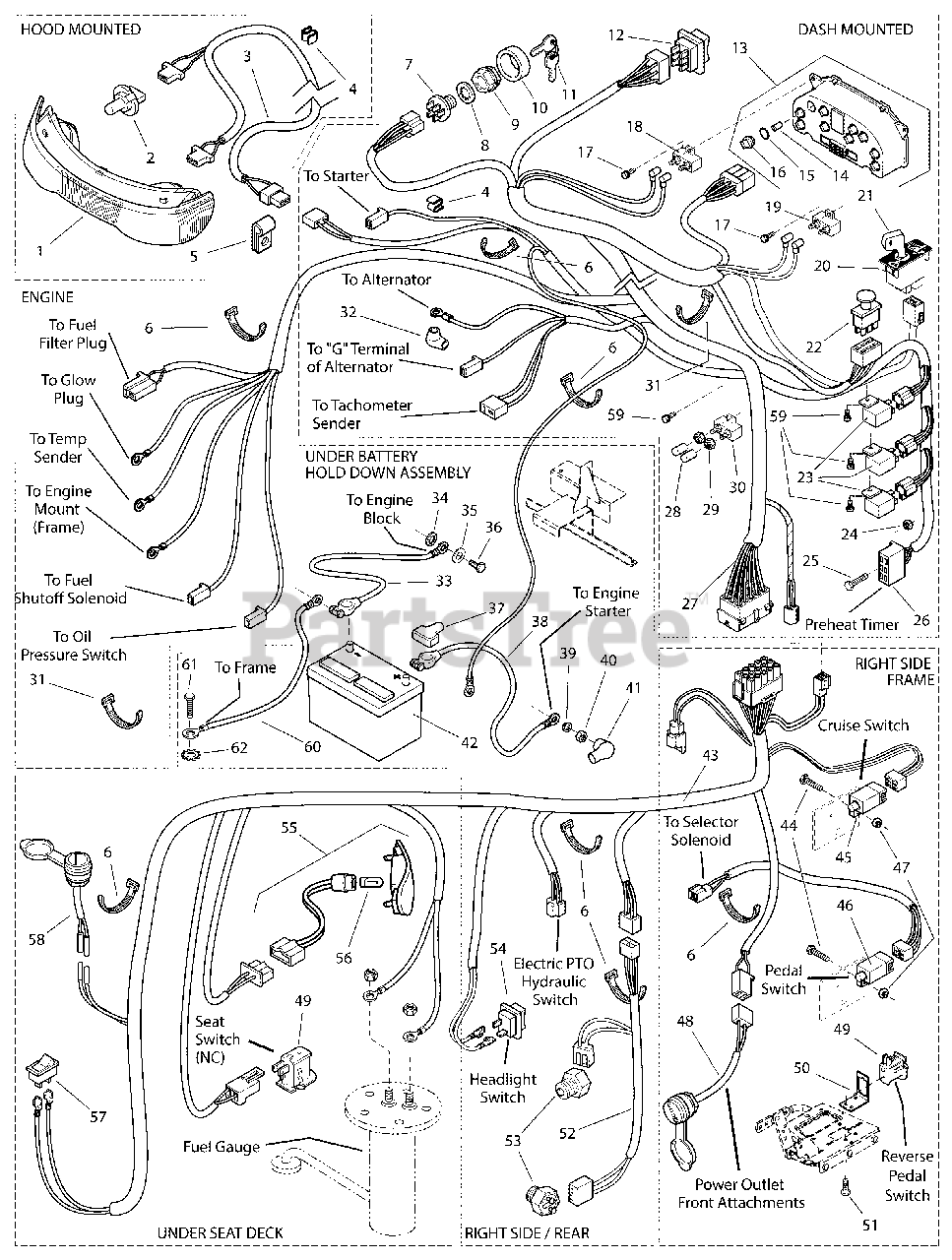

Electrical Group - 27HP Briggs & Stratton Diesel Parts Diagram

  • Title

1

Simplicity 1715923SM

HEADLIGHT

$164.99

$

In Stock, only 1 left!

0

2

Simplicity 1717649SM

BULB, Headlight, Halogen

$60.99

$

In Stock, only 2 left!

0

3

Simplicity 1726997SM

HARNESS, Headlight

$41.99

$

In Stock, only 1 left!

0

4

Simplicity 2172434SM

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1708007SM

CLAMP, Wire 3/8 Diameter

$7.49

$

Usually ships in 2-12 days

0

6

Simplicity 1701011SM

TIE, Self Locking 7 in. Long

$5.49

$

In Stock, only 2 left!

0

7

Simplicity 1737853YP

SWITCH ASSEMBLY, Ignition 5/8-32, 6 Pin INDAK

$35.99

$

In Stock, Qty 20+

0

8

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8, Thin

$4.49

$

In Stock, only 4 left!

0

9

Simplicity 1717549SM

NUT, Hex Flange 5/8-32 Ignition Switch
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 1717550SM

COVER, Ignition Switch, Black
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

11

Simplicity 1717163SM

KEYS, Set of 2

$8.99

$

In Stock, Qty 20+

0

12

Simplicity 1716329SM

SWITCH, Electric Lift, 6 Terminal

$47.99

$

In Stock, Qty 20+

0

13

Simplicity 1724967SM

PANEL, Instrument

Note: (Includes Ref. Nos. 14, 15 & 16) Used on Briggs & Stratton Engines

$866.99

$

Usually ships in 2-12 days

0

14

Simplicity 1717634SM

BULB, Instrument Panel

$6.99

$

Usually ships in 2-12 days

0

15

Simplicity 1729948SM

SEAL, Lamp Socket Plug

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 1722061SM

HOLDER, Bulb, Instrument Panel (Includes Ref. No. 15)

$

$

Not available

17

Simplicity 1960578SM

SCREW, Hex Washer Head, Thread Cutting, #12-24 x 5/8

$

$

Not available

18

Simplicity 1725534SM

BREAKER, Circuit 12VOLT 10AMP

$34.99

$

Usually ships in 2-12 days

0

19

Simplicity 1665238SM

BREAKER, Circuit 12VOLT 20AMP with Tab

$14.99

$

In Stock, Qty 20+

0

20

Simplicity 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

21

Simplicity 1726557SM

KEY, RMO Module, Plastic

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 1722887SM

SWITCH, PTO Push/Pull, Yellow

$33.99

$

In Stock, Qty 20+

0

23

Simplicity 1726829SM

RELAY, 12VOLT 5 Blade

$15.99

$

In Stock, only 1 left!

0

24

Simplicity 1933896SM

NUT, Hex Lock 10-24 with Nylock Insert, NC3B
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 1960589SM

SCREW, Round Head Phillips #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 1726829SM

RELAY, Glow Plug

$15.99

$

In Stock, only 1 left!

0

27

Simplicity 1726776SM

HARNESS, Main Diesel

$301.99

$

Usually ships in 2-12 days

0

28

Simplicity 1719680SM

COVER, Wire, Black, Vynil

$2.99

$

Usually ships in 2-12 days

0

29

Simplicity 1928919SM

NUT, Hex & Washer Assembly, KEPS

$3.99

$

In Stock, only 3 left!

0

30

Simplicity 1719311SM

BREAKER, Circuit 30AMP 12VOLT

$30.99

$

Usually ships in 2-12 days

0

31

Simplicity 1701011SM

TIE, Self Locking 15 in. Long

$5.49

$

In Stock, only 2 left!

0

32

Simplicity 2122023SM

COVER, Terminal Red

$5.99

$

In Stock, Qty 12

0

33

Simplicity 1725263SM

CABLE, Battery, # 4 x 10 in Long, Black

$20.99

$

In Stock, only 1 left!

0

34

Simplicity 2820426SM

LOCKWASHER, External Tooth 5/16

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

36

Simplicity 2850017SM

CAPSCREW, Hex Head M08-1.25 x 16MM
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 1713534SM

INSULATOR, Battery Terminal, Red

$5.99

$

Usually ships in 2-12 days

0

38

Simplicity 1725262SM

CABLE, Battery, # 4 x 15 in Long, Red

$

$

Not available

39

Simplicity 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

40

Simplicity 2860433SM

NUT, Hex Flange M08-1.25

$3.49

$

Usually ships in 2-12 days

0

41

Simplicity 1724588SM

BOOT, Cable Terminal

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1686714SM

BATTERY, 12VOLT 6CELL 500AMPS CCA

$

$

Not available

43

Simplicity 1727679SM

HARNESS, Rear

$148.99

$

Usually ships in 2-12 days

0

44

Simplicity 1933737SM

SCREW, Hew Washer Head Slot, #10-24 x 5/8

$3.49

$

In Stock, only 2 left!

0

45

Simplicity 1717050SM

SWITCH, Push Button, Cuise Control

$17.99

$

In Stock, Qty 20+

0

46

Simplicity 1701521SM

SWITCH, Push Button, Foot Pedal
(Superseded to 5022438SM)

$20.99

$

In Stock, Qty 7

0

47

Simplicity 1960591SM

NUT, Hex KEPS #10-24

$3.49

$

In Stock, Qty 8

0

48

Simplicity 1716987SM

HARNESS ASSEMBLY, Power Outlet

$91.99

$

Usually ships in 2-12 days

0

49

Simplicity 1732004SM

SWITCH-PUSH BUTTON (NO) REGENT

$8.99

$

In Stock, Qty 20+

0

50

Simplicity 1726810ASM

BRACKET, Switch Mounting, Reverse Pedal

$12.99

$

Usually ships in 2-12 days

0

51

Simplicity 1929000SM

CAPSCREW, Hex Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

52

Simplicity 1724963SM

HARNESS, Trasnmission, PTO Lights (540 PTO Only)

$21.99

$

Usually ships in 2-12 days

0

53

Simplicity 1654634SM

SWITCH, Interlock Ball Check 5/16 (540 PTO Only)

$46.99

$

Usually ships in 2-12 days

0

54

Simplicity 1716951SM

SWITCH, Headlights, 2 Terminal

$21.99

$

In Stock, Qty 6

0

55

Simplicity 1715915SM

TAIL LIGHT ASSEMBLY

$68.99

$

Usually ships in 2-12 days

0

56

Simplicity 1717650SM

BULB, Tail Light

$15.99

$

In Stock, only 2 left!

0

57

Simplicity 1725212SM

SWITCH, Rocker, Solenoid Select

$39.99

$

Usually ships in 2-12 days

0

58

Simplicity 1725302SM

OUTLET, 12 Volt

$26.99

$

Usually ships in 2-12 days

0

59

Simplicity 1704351SM

FASTENER, Panel

$4.99

$

In Stock, only 4 left!

0

60

Simplicity 1733112SM

CABLE-# 6 X 15.0 LG (2) RING TERMINALS BLACK

$9.49

$

Usually ships in 2-12 days

0

61

Simplicity 2827187SM

SCREW-HEX WASHER HD TAPTT 3/8-16 X 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

62

Simplicity 2820427SM

LOCKWASHER-EXTERNAL TOOTH .375 YELLOW
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

--

Simplicity 1727291SM

HARNESS, Diode

Note: (Not Shown, 1687069SM used on Model Nos. 1694639, Serial Nos. 00001-00012)

$

$

Not available
