2027 (2690212) - AGCO 48" Garden Tractor, 27hp Briggs & Stratton Diesel Engine Group - 27HP Briggs & Stratton Diesel Diagram 1 Parts Diagram

48" Garden Tractor, 27hp Briggs & Stratton Diesel

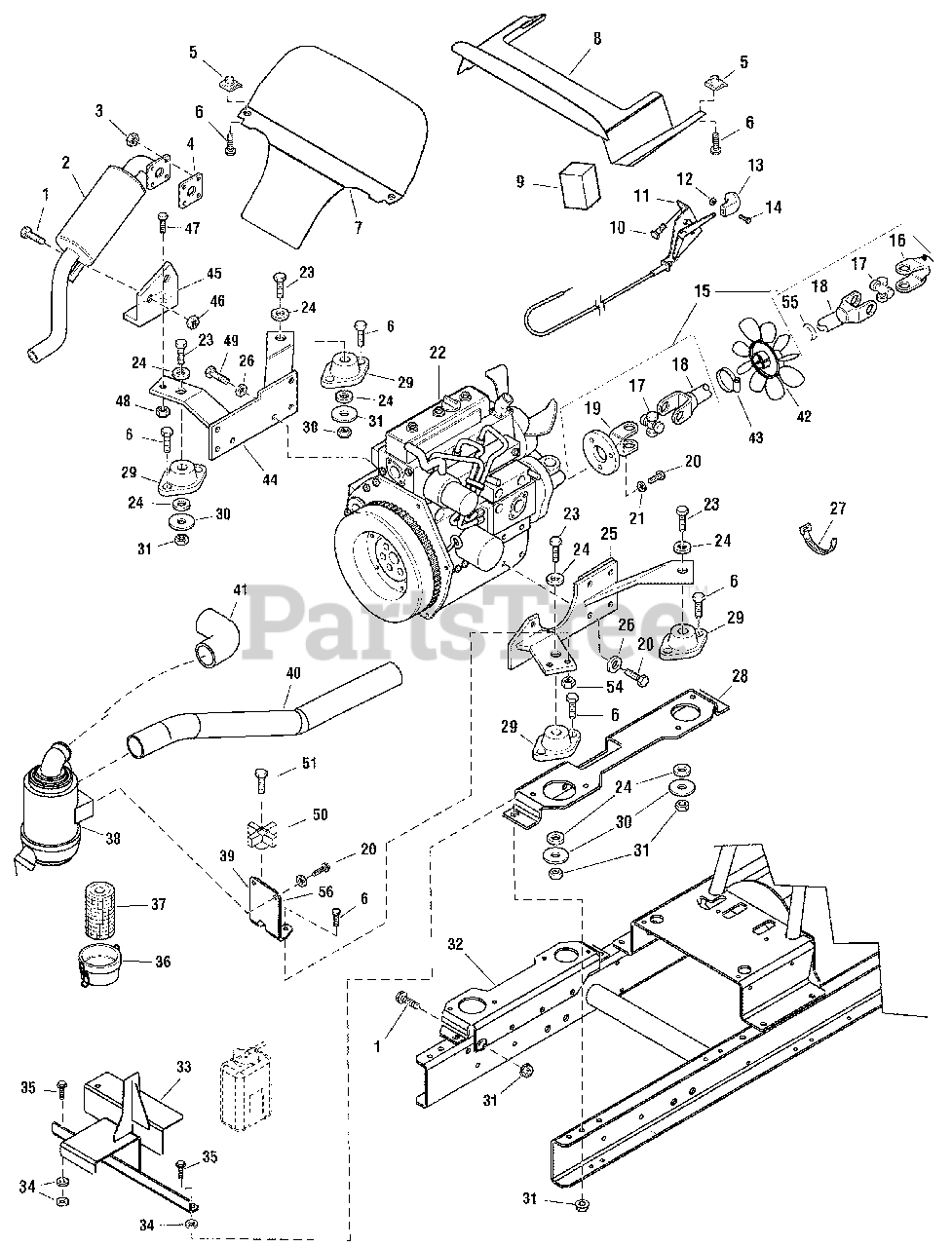

Engine Group - 27HP Briggs & Stratton Diesel Diagram 1 Parts Diagram

  • Title

1

Simplicity 1934654SM

SCREW, Hex Whiz Lock Flange, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

2

Simplicity 1727859SM

MUFFLER

$744.99

$

Usually ships in 2-12 days

0

3

NUT

$

$

Not available

4

BRACKET

$

$

Not available

5

Simplicity 1926018SM

NUT, Speed, 1/4-20, U Type

$4.49

$

In Stock, Qty 12

0

6

Simplicity 1664847SM

SCREW, Hex, Washer, Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1725627ASM

SHIELD, Hood 18GA

$31.99

$

Usually ships in 2-12 days

0

8

Simplicity 1725590ASM

BAFFLE, Hood 18GA

$48.99

$

Usually ships in 2-12 days

0

9

Simplicity 1725731SM

SEAL, Foam 1-1/2 x 1-1/2, 2.8LG

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 1960578SM

SCREW, Hex, Washer Head, Taptite, 12-24 x 5/8

$

$

Not available

11

Simplicity 1725328SM

CONTROL, Throttle

$90.99

$

In Stock, only 1 left!

0

12

Simplicity 1933896SM

NUT, Hex Lock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

13

Simplicity 1725337SM

KNOB, Slot

$12.99

$

In Stock, only 1 left!

0

14

Simplicity 1960393SM

SCREW, Pan Head, PHILLIPS, 10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 1724571SM

SHAFT ASSEMBLY, Drive (Includes Ref. Nos. 16, 17, 18 & 19)

$524.99

$

In Stock, only 1 left!

0

16

YOKE, Drive Shaft

$

$

Not available

17

CROSS & BEARING KIT, Includes Grease Fitting

$

$

Not available

18

YOKE & TUBE ASSEMBLY

$

$

Not available

19

YOKE & FLANGE, Drive Shaft

$

$

Not available

20

Simplicity 1960347SM

CAPSCREW, Hex Head,
(Superseded to 703989)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

ENGINE, 26.5HP Briggs & Stratton Diesel, Model # 582447, Type # 0424, Trim # E2

$

$

Not available

23

Simplicity 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, G5
(Superseded to 703873)

$4.49

$

In Stock, only 2 left!

0

24

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1726580ASM

MOUNT ASSEMBLY, Engine, L.H.

$113.99

$

Usually ships in 2-12 days

0

26

Simplicity 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

27

Simplicity 1701011SM

TIE, Self Locking, 7.31LG

$5.49

$

In Stock, only 2 left!

0

28

Simplicity 1724813ASM

MOUNT, Engine, L.H.

$43.99

$

Usually ships in 2-12 days

0

29

Simplicity 1718655SM

MOUNT, Engine, Rear

$35.99

$

Usually ships in 2-12 days

0

30

Simplicity 1718640SM

WASHER, 1/2

$8.49

$

Usually ships in 2-12 days

0

31

Simplicity 1960680SM

NUT, Hex KEPS, 3/8-16 Conical Washer

$6.49

$

Usually ships in 2-12 days

0

32

Simplicity 1724812ASM

MOUNT, Engine, R.H.

$43.99

$

Usually ships in 2-12 days

0

33

Simplicity 1725598ASM

HOLD DOWN ASSEMBLY, Battery

$82.99

$

Usually ships in 2-12 days

0

34

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

35

Simplicity 1928727SM

SCREW, Hex, Whiz Lock, Flange, 3/8-16 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

36

Simplicity 1734572SM

CAP, Air Cleaner

$

$

Not available

37

Simplicity 1734571SM

FILTER, Air Cleaner

$

$

Not available

38

Simplicity 1719546SM

AIR CLEANER ASSEMBLY

$148.99

$

Usually ships in 2-12 days

0

39

Simplicity 1725588ASM

BRACKET, Air Cleaner

$27.99

$

Usually ships in 2-12 days

0

40

Simplicity 1725630SM

HOSE, Air Inlet, 28LG

$59.99

$

Usually ships in 2-12 days

0

41

Simplicity 1726042SM

HOSE, Inlet

$66.99

$

Usually ships in 2-12 days

0

42

Simplicity 1725661SM

FAN

$

$

Not available

43

Simplicity 1725746SM

CLAMP, Hose, Worm

$4.49

$

In Stock, only 1 left!

0

44

Simplicity 1726581ASM

MOUNT ASSEMBLY, Engine R.H.

$90.99

$

Usually ships in 2-12 days

0

45

Simplicity 1718639ASM

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

46

Simplicity 1960687SM

NUT, Hex, Flange, 3/8-16, ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

47

Simplicity 1930591SM

SCREW, Hex, Whiz Lock, Flange 5/16-18 x 1-1/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 6

0

48

Simplicity 1960686SM

NUT, Hex, Flange, 5-16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 1950018SM

CAPSCREW, Hex Head

$2.99

$

Usually ships in 2-12 days

0

50

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

51

Simplicity 1921677SM

CAPSCREW, Hex Head 5/16-18 x 1.500

$3.49

$

Usually ships in 2-12 days

0

52

Simplicity 1919326SM

WASHER, 11/32 x 3/4 x 1/16

$4.49

$

In Stock, Qty 5

0

53

Simplicity 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

54

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

55

Simplicity 17526600SM

TAPE, Double Sided Foam .88 x 4.71
(Superseded to 1726600SM)

$4.99

$

Usually ships in 2-12 days

0

56

Simplicity 1726932SM

DECAL, Air Cleaner

$19.99

$

Usually ships in 2-12 days

0
