2025 - Poulan Chainsaw Internal Power Unit Parts Diagram

Chainsaw

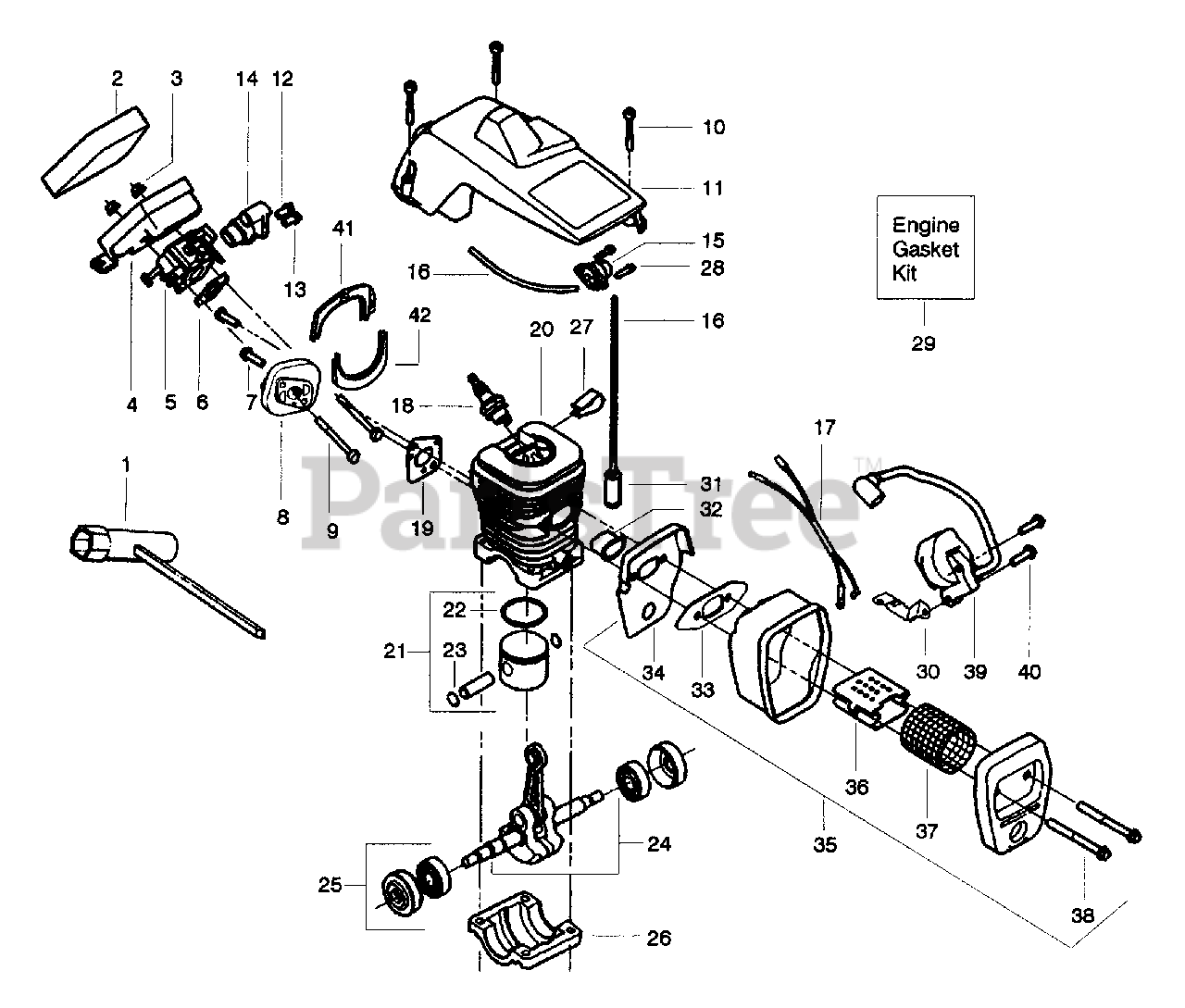

Internal Power Unit Parts Diagram

  • Title

1

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

2

Poulan 530037793

Foam - Air Filter

$4.99

$

In Stock, Qty 7

0

3

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530037804

Air Filter Housing
(Superseded to 530057480)

$

$

Not available

5

Poulan 530069703

Carburetor Kit
(Superseded to 545081885)

Note: (Incl. 12 & 13)

$34.99

$

Usually ships in 3-10 days

0

6

Poulan 530019239

Carb. Gasket
(Superseded to 530019271)

$6.49

$

In Stock, only 1 left!

0

7

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

8

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

9

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

10

Poulan 530016102

Screw

$

$

Not available

11

Poulan 530053184

Cylinder Shield

$

$

Not available

12

Poulan 530038318

Limiter Cap - High

$3.99

$

In Stock, Qty 20+

0

13

Poulan 530038317

Limiter Cap - Low

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530049244

Grommet - Carb Adjust

$4.99

$

In Stock, only 3 left!

0

15

Poulan 530047213

Air Purge Ass'y.
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

16

Poulan 530069247

Fuel Line Kit (Small)

$7.99

$

In Stock, Qty 20+

0

17

Poulan 530052296

Wire Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

18

Poulan 530030153

Spark Plug (CJ-7Y)

$

$

Not available

19

Poulan 530019249

Gasket - Carb Adaptor

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530069606

Cylinder Kit
(Superseded to 530071252)

$34.61

$

Usually ships in 3-10 days

0

21

Poulan 530069604

Piston Kit

Note: (Incl. 22 & 23)

$

$

Not available

22

Poulan 530029805

Piston Ring

$6.49

$

In Stock, Qty 17

0

23

Poulan 530015697

Retainer - Piston Pin

$6.49

$

In Stock, Qty 6

0

24

Poulan 530047062

Crankshaft Ass'y.
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

25

Poulan 530047827

Seal & Bearing Ass'y.
(Superseded to 530056363)

$18.99

$

In Stock, only 2 left!

0

26

Poulan 530037935

Cap - Crankcase

$10.99

$

Usually ships in 3-10 days

0

27

Poulan 530016136

Clip - High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

29

Poulan 530069608

Engine Gasket Kit

Note: (Incl. 6, 19 & 33)

$8.99

$

In Stock, Qty 13

0

30

Poulan 530047442

Ground Strap

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530095646

Fuel Pick - up Ass'y.

$6.99

$

In Stock, Qty 20+

0

32

Poulan 530037652

Heat Insulator

$

$

Not available

33

Poulan 530019221

Muffler Gasket

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530049870

Muffler Backplate

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 530047207

Muffler Ass'y.
(Superseded to 530071904)

Note: (Incl. 33 - 34 & 36 - 38)

$20.99

$

Usually ships in 3-10 days

0

36

Poulan 530037813

Muffler Diffuser

$4.99

$

In Stock, only 1 left!

0

37

Poulan 530036103

Spark Screen

$

$

Not available

38

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

39

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

40

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

41

Poulan 530049715

Seal - Carb Adapter - (Upper)

$

$

Not available

42

Poulan 530049714

Seal - Carb Adapter - (Lower)

$

$

Not available

Poulan 530087857

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530038257

Decal Instruction

Note: Not Shown

$

$

Not available

Poulan 530038486

Decal Stop (Not a serviceable part)

Note: Not Shown

$

$

Not available

Poulan 530031112

Clutch Ass'y. Tool

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

Poulan 530031097

Air Gap Gauge

Note: Not Shown

$

$

Not available

Poulan 530031160

Insert Tool - Limiter Cap

Note: Not Shown

$21.99

$

Usually ships in 3-10 days

0

Poulan 952031164

Carrying Case

Note: Not Shown

$43.99

$

Usually ships in 3-10 days

0
