2024791 - Simplicity ST62 Snow Thrower Attachment PTO Electric Clutch - Front Mount Group (3482I133) Parts Diagram

ST62 Snow Thrower Attachment

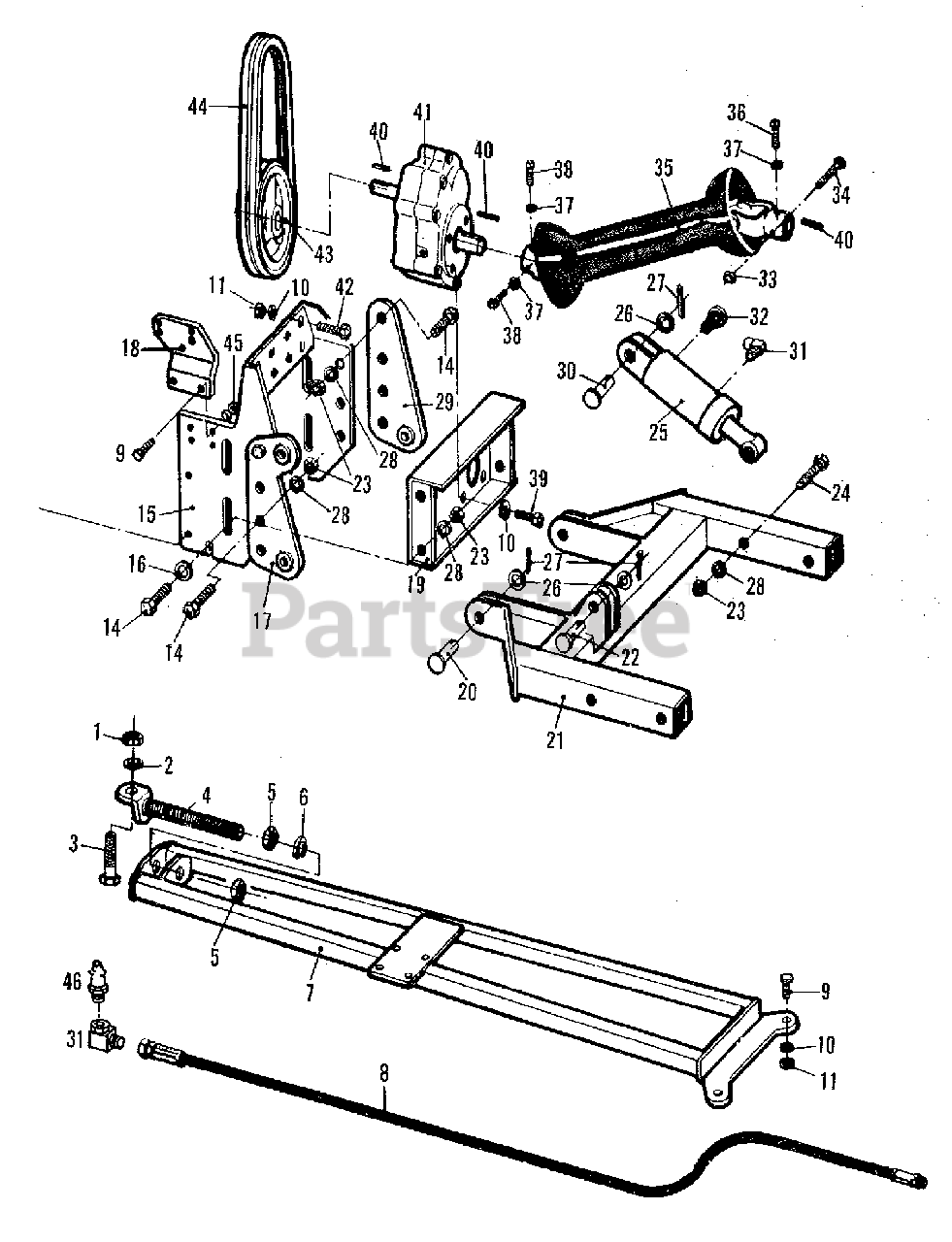

PTO Electric Clutch - Front Mount Group (3482I133) Parts Diagram

  • Title

1

Simplicity 0913160-8

NUT, 3/4NC

$

$

Not available

2

Simplicity 0919332-7

LOCKWASHER, 3/4

$

$

Not available

3

Simplicity 0925707-2

CAPSCREW, 3/4NC x 3

$

$

Not available

4

Simplicity 2109701-9

BOLT, Adjuster

$

$

Not available

5

Simplicity 0922009-6

NUT, Jam, 1" NC

$

$

Not available

6

Simplicity 0922020-3

LOCKWASHER, 1"

$

$

Not available

7

Simplicity 2109702-7

FRAME, Under

$

$

Not available

8

Simplicity 2109703-5

HOSE ASSEMBLY (105")

$

$

Not available

8

Simplicity 0594977-1

COUPLER, Hydraulic - Tractor (Use w/Quick Disconnect Coupler)

$

$

Not available

9

Simplicity 0920328-2

CAPSCREW, 1/2NC x 1-1/2

$

$

Not available

10

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

11

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

12

Simplicity 0921210-1

CAPSCREW 3/8NC x 1

$

$

Not available

13

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

14

Simplicity 0922664-8

CAPSCREW, 5/8NC x 2

$

$

Not available

15

Simplicity 2109704-3

FRAME, Mounting

$

$

Not available

16

Simplicity 0919328-5

WASHER, 5/8

$

$

Not available

17

Simplicity 2109705-0

BRACKET, Hanger, Cylinder

$

$

Not available

18

Simplicity 2109706-8

BRACKET SET, Spacer (5030)

$

$

Not available

18

Simplicity 2109707-6

BRACKET SET, Spacer (5020)

$

$

Not available

19

Simplicity 2109708-4

FRAME, Gearbox

$

$

Not available

20

Simplicity 2109709-2

PIN, Frame, 5/8 x 2

$

$

Not available

21

Simplicity 2109710-0

FRAME, Front

$

$

Not available

22

Simplicity 2109711-8

PIN, Cylinder, 5/8 x 2-1/2

$

$

Not available

23

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

24

Simplicity 0925703-1

CAPSCREW, 5/8NC x 4

$

$

Not available

25

Simplicity 2109712-6

CYLINDER ASSEMBLY, Hydraulic, 2 x 4

$

$

Not available

26

Simplicity 0919387-1

WASHER, 5/8" I.D. x 1/16" Thick

$

$

Not available

27

Simplicity 0925719-7

PIN, Cotter, 1/8 x 1-1/2

$

$

Not available

28

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

29

Simplicity 2109713-4

HANGER, Bracket

$

$

Not available

30

Simplicity 2109714-2

PIN, Cylinder, 5/8 x 2-1/4

$

$

Not available

31

Simplicity 2109715-9

ELBOW, Steet, 3/8NPT

$

$

Not available

32

Simplicity 2109716-7

BREATHER ASSEMBLY, 3/8NPT

$

$

Not available

33

Simplicity 0923422-0

LOCKNUT, 5/16NC

$

$

Not available

34

Simplicity 0925689-2

CAPSCREW, 5/16NC x 3

$

$

Not available

35

Simplicity 2109717-5

SHAFT ASSEMBLY, PTO, Complete

$

$

Not available

36

Simplicity 2109756-3

SETSCREW, 3/8NC x 1

$

$

Not available

37

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

38

Simplicity 2109756-3

SETSCREW, 3/8NC x 1

$

$

Not available

39

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

40

Simplicity 0920217-7

KEY, 1/4 x 1/4 x 1-1/2

$

$

Not available

41

Simplicity 2109720-9

GEAR ASSEMBLY, Parallel Shaft (3.6:1 Ratio)

$

$

Not available

42

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

43

Simplicity 2109721-7

SHEAVE, F.H.P.

$

$

Not available

43

Simplicity 2109723-3

BUSHING, 1" Bore

$

$

Not available

44

Simplicity 2109722-5

BELT

$

$

Not available

45

Simplicity 0930356-1

NUT, Hex, Jam, Heavy, 1/2NC (Use w/SPACER)

$

$

Not available
