2024791 - Simplicity ST62 Snow Thrower Attachment Hydraulic Lift Cylinder Group (3482I141) Parts Diagram

ST62 Snow Thrower Attachment

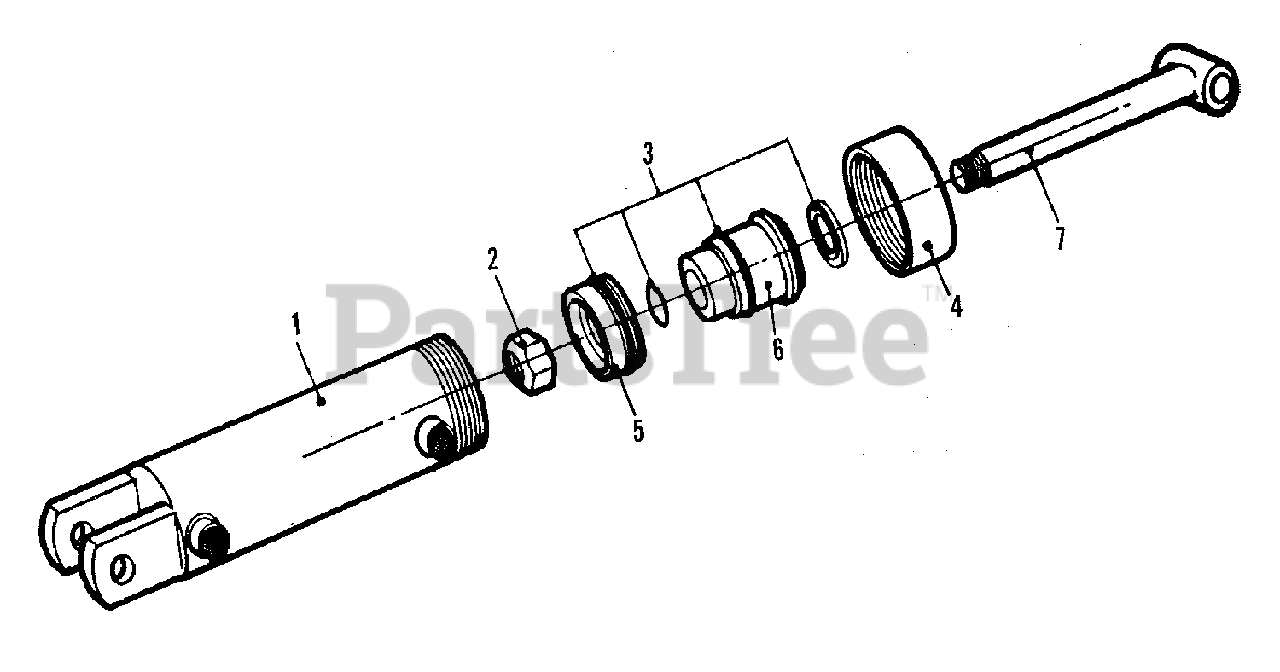

Hydraulic Lift Cylinder Group (3482I141) Parts Diagram

  • Title
1

Simplicity 2109779-5

CASING, Cylinder

$

$

Not available

2

Simplicity 2109780-3

NUT, Piston

$

$

Not available

3

Simplicity 2109781-1

SEAL KIT, Hydraulic Lift Cylinder

$

$

Not available

4

$

$

Not available

5

Simplicity 2109783-7

PISTON (w/SEAL KIT)

$

$

Not available

6

Simplicity 2109784-5

GLAND (w/SEAL KIT)

$

$

Not available

7

Simplicity 2109785-2

ROD, Lift Cylinder

$

$

Not available
