2024791 - Simplicity ST62 Snow Thrower Attachment Gear Reduction Box Group (3482I139) Parts Diagram

ST62 Snow Thrower Attachment

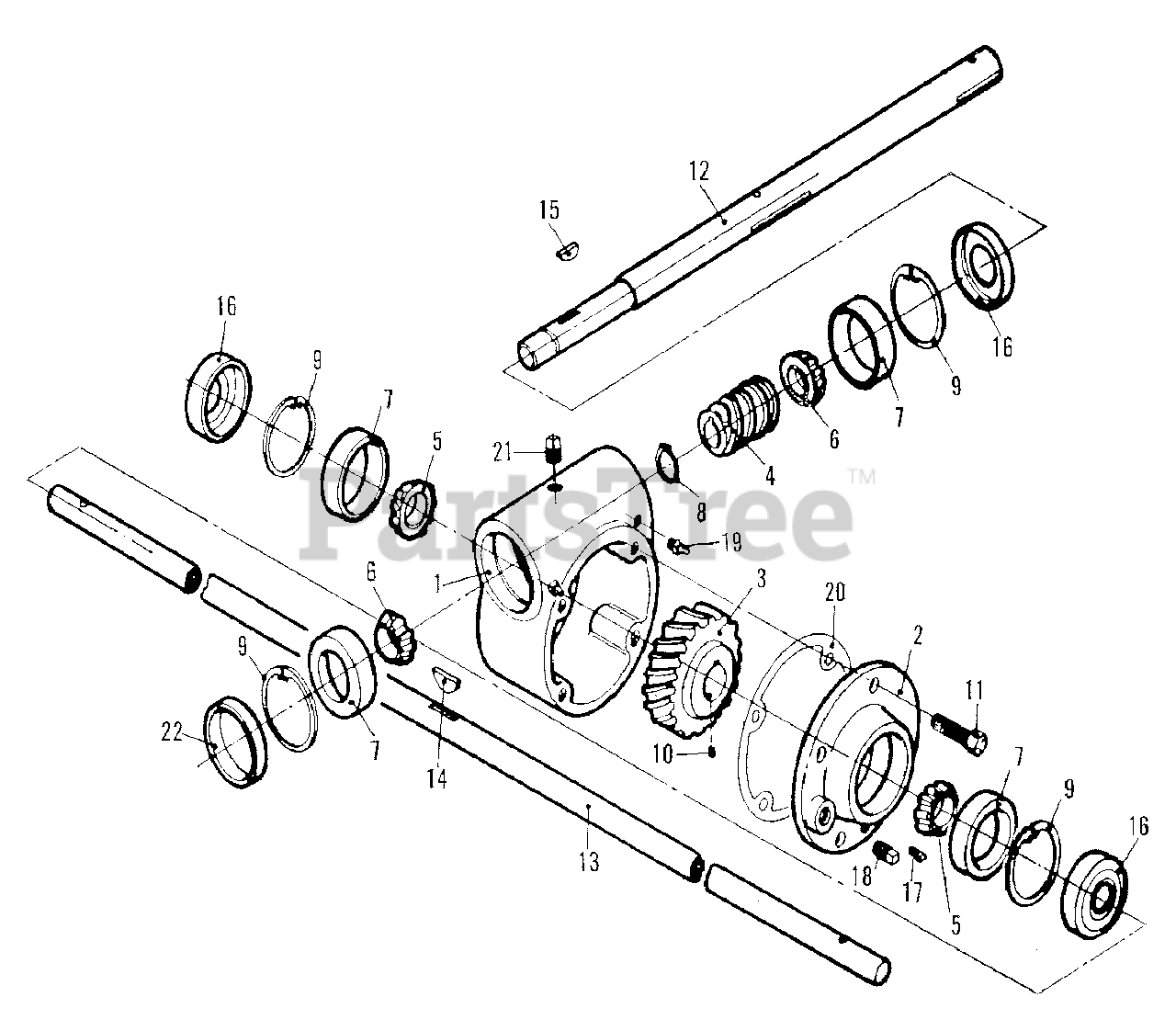

Gear Reduction Box Group (3482I139) Parts Diagram

  • Title

1

Simplicity 2109763-9

HOUSING, Gear

$

$

Not available

2

Simplicity 2109764-7

COVER, Gear

$

$

Not available

3

Simplicity 2109765-4

GEAR, Worm

$

$

Not available

4

Simplicity 2109766-2

WORM

$

$

Not available

5

Simplicity 0323297-2

CONE, Bearing (#15126)

$

$

Not available

6

Simplicity 0225608-9

CONE, Bearing (#15101)

$

$

Not available

7

Simplicity 0241380-5

CUP, Bearing, (#15245)

$

$

Not available

8

Simplicity 2109767-0

RING, Retaining, External

$

$

Not available

9

Simplicity 2109768-8

RING, Retaining, Internal

$

$

Not available

10

Simplicity 2109769-6

SETSCREW, Worm Gear

$

$

Not available

11

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

12

Simplicity 2109771-2

SHAFT ASSEMBLY, Input

$

$

Not available

13

Simplicity 2109772-0

SHAFT ASSEMBLY, Output (60")

$

$

Not available

14

Simplicity 0910536-2

KEY, Woodruff, Hard (No. 18)

$

$

Not available

15

Simplicity 0922772-9

KEY, Woodruff, Hard ("A")

$

$

Not available

16

Simplicity 2109774-6

SEAL, Shaft Cover

$

$

Not available

17

Simplicity 0901651-0

PLUG, Pipe, 1/8NPT

$

$

Not available

18

Simplicity 0901653-6

PLUG, Level, 3/8NPT

$

$

Not available

19

Simplicity 0912494-2

FITTING, Grease

$

$

Not available

20

Simplicity 2109775-3

GASKET, Cover

$

$

Not available

21

Simplicity 2109776-1

PLUG, Vent, 3/8NPT

$

$

Not available

22

Simplicity 2109777-9

CAP, Input Bearing

$

$

Not available

23

Simplicity 2109778-7

SHIM

$

$

Not available
