2024791 - Simplicity ST62 Snow Thrower Attachment 3-Point Hitch PTO Assembly Group (3482I137) Parts Diagram

ST62 Snow Thrower Attachment

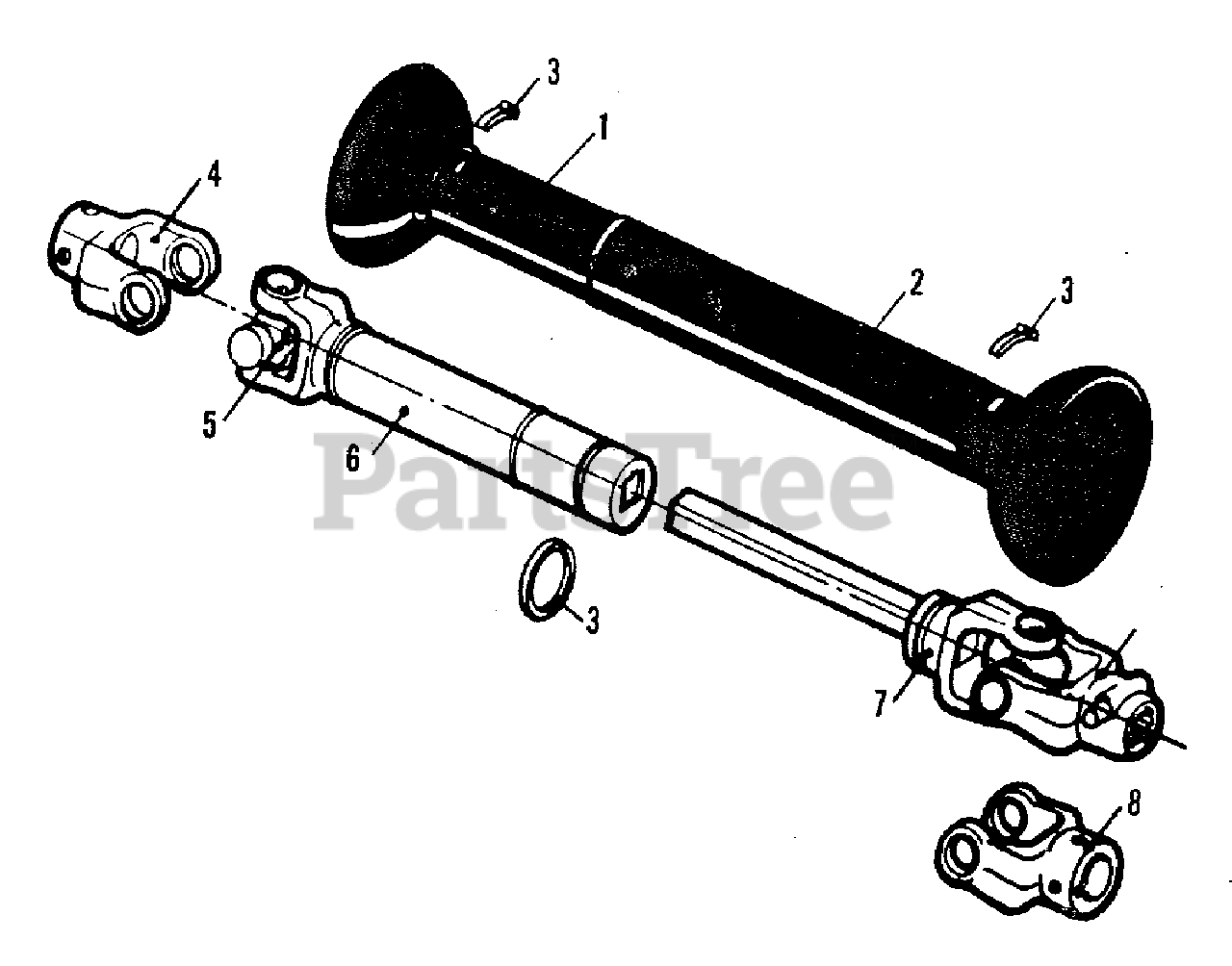

3-Point Hitch PTO Assembly Group (3482I137) Parts Diagram

  • Title

1

Simplicity 2109794-4

SHIELD, Inner, Front

$

$

Not available

2

Simplicity 2109795-1

SHIELD, Outer, Front

$

$

Not available

3

Simplicity 2109788-6

BEARING KIT, Shield

$

$

Not available

4

Simplicity 2109789-4

YOKE, End, 1-1/4" Bore, 5/16" Cross Hole

$

$

Not available

5

Simplicity 2109790-2

CROSS KIT, U-Joint

$

$

Not available

6

Simplicity 2109796-9

SLEEVE ASSEMBLY, P.T.O. Front

$

$

Not available

7

Simplicity 2109797-7

SHAFT ASSEMBLY, PTO, Front

$

$

Not available

8

Simplicity 2109798-5

YOKE, 1-1/4" Bore (w/ 3/8NC SETSCREWS)

$

$

Not available
