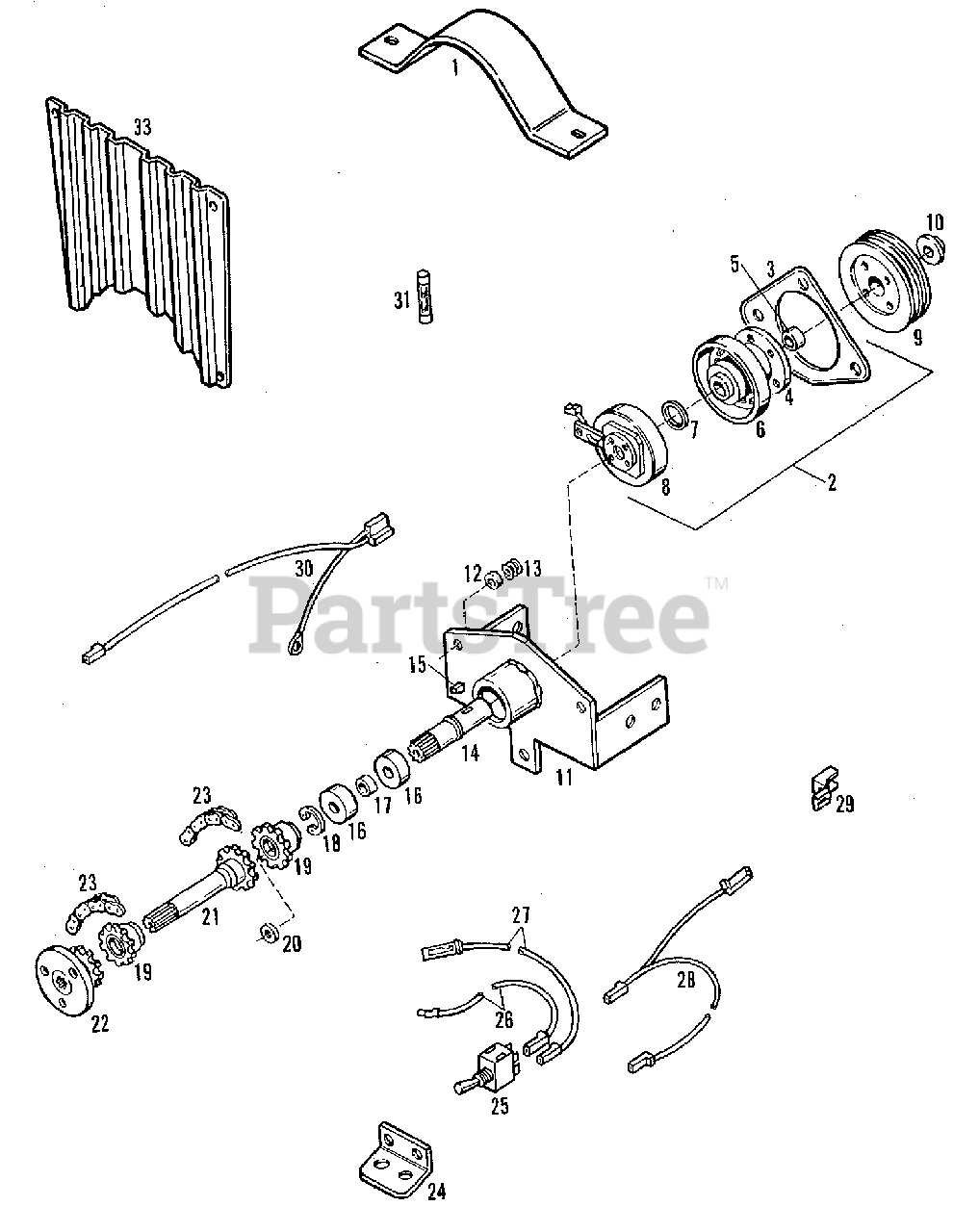

2024780 - Simplicity 54" Mower Deck, Center-Mounted PTO Electric Clutch (3482I58) Parts Diagram

54" Mower Deck, Center-Mounted

PTO Electric Clutch (3482I58) Parts Diagram

  • Title

1

Simplicity 1671413-1

GUARD, Belt

$

$

Not available

1

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

1

Simplicity 0919326-9

WASHER, Plain, 11/32 x 3/4 x 16 Ga.

$

$

Not available

1

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

1

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

2

Simplicity 1685118-0

BRAKE & CLUTCH ASSEMBLY

$

$

Not available

3

Simplicity 1664630-9

DRUM, Brake

$

$

Not available

4

Simplicity 1665039-2

FLANGE ASSEMBLY, Brake Shoe

$

$

Not available

5

Simplicity 1663355-4

BEARING

$

$

Not available

6

Simplicity 1665038-4

ROTOR & ARMATURE ASSEMBLY

$

$

Not available

7

Simplicity 1665035-0

SPACER, Rotor

$

$

Not available

8

Simplicity 1652356-5

FIELD ASSEMBLY

$

$

Not available

8

Simplicity 0930613-5

CAPSCREW, Hex Socket Head, No 10NF x 1/2, Gr.8

$

$

Not available

8

Simplicity 0909055-6

LOCKWASHER, Internal Tooth, No. 10

$

$

Not available

9

Simplicity 1664639-0

PULLEY, Electric Clutch

$

$

Not available

9

Simplicity 0925359-2

SCREW, Taptite, 5/16NC x 3/4

$

$

Not available

10

Simplicity 1664909-7

RETAINER

$

$

Not available

10

Simplicity 0928727-7

CAPSCREW, Large Flange, Whizlock, 3/8NC x 1-1/4

$

$

Not available

11

Simplicity 1671364-6

SUPPORT ASSEMBLY, Clutch

$

$

Not available

11

Simplicity 0933766-8

CAPSCREW, 3/8NF x 2-1/2

$

$

Not available

11

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

11

Simplicity 0930628-3

NUT, Lock, 3/8NF

$

$

Not available

11

Simplicity 0916602-6

NUT, 3/8NF

$

$

Not available

11

Simplicity 0921212-7

CAPSCREW, 7/16NC x 1-1/2

$

$

Not available

11

Simplicity 0918199-1

LOCKWSHER, 7/16

$

$

Not available

11

Simplicity 0918213-0

NUT, 7/16NC

$

$

Not available

12

Simplicity 2026002-2

SPACER

$

$

Not available

13

Simplicity 1664416-3

SPRING, Compression

$

$

Not available

14

Simplicity 1664624-2

SHAFT

$

$

Not available

15

Simplicity 2028571-4

KEY, Shaft

$

$

Not available

16

Simplicity 0528126-6

BEARING

$

$

Not available

17

Simplicity 1664615-0

SPACER

$

$

Not available

18

Simplicity 0925996-1

RING, Retaining

$

$

Not available

19

Simplicity 1664617-6

SPROCKET ASSEMBLY

$

$

Not available

19

Simplicity 0933260-2

CAPSCREW, Large Flange, Whizlock, 3/8NC x 3/4

$

$

Not available

20

Simplicity 2087585-2

WASHER

$

$

Not available

21

Simplicity 1671366-1

SPROCKET ASSEMBLY

$

$

Not available

22

Simplicity 1671361-2

DRIVE ASSEMBLY, Crankshaft

$

$

Not available

22

Simplicity 0950928-2

CAPSCREW, M10 x 1-1/4 x 25MM

$

$

Not available

22

Simplicity 0918199-1

LOCKWASHER, 7/16

$

$

Not available

23

CHAIN, Coupling, #60

$

$

Not available

23

Simplicity 0921050-1

CHAIN, Bulk, 3/4 Pitch

$

$

Not available

23

Simplicity 0926364-1

CHAIN, Bulk, 3/4 Pitch

$

$

Not available

23

Simplicity 0914584-8

LINK, Connecting

$

$

Not available

24

Simplicity 1670900-8

BRACKET, Switch

$

$

Not available

25

Simplicity 2028809-8

SWITCH

$

$

Not available

26

Simplicity 1671494-1

WIRE ASSEMBLY, Switch

$

$

Not available

27

Simplicity 1671493-3

WIRE ASSEMBLY, Switch

$

$

Not available

28

Simplicity 1671480-0

WIRE ASSEMBLY

$

$

Not available

29

Simplicity 2087614-0

ADAPTER, 2-Way

$

$

Not available

30

Simplicity 1671367-9

WIRE ASSEMBLY, Clutch

$

$

Not available

31

Simplicity 0931771-0

FUSE, 20Amp

$

$

Not available

32

Simplicity 1671543-5

DECAL, Switch

$

$

Not available

33

Simplicity 1672681-2

SCREEN, Grille-Cut-Out

$

$

Not available
