2024780 - Simplicity 54" Mower Deck, Center-Mounted Belly Mounting & Linkage Group (3482I56) Parts Diagram

54" Mower Deck, Center-Mounted

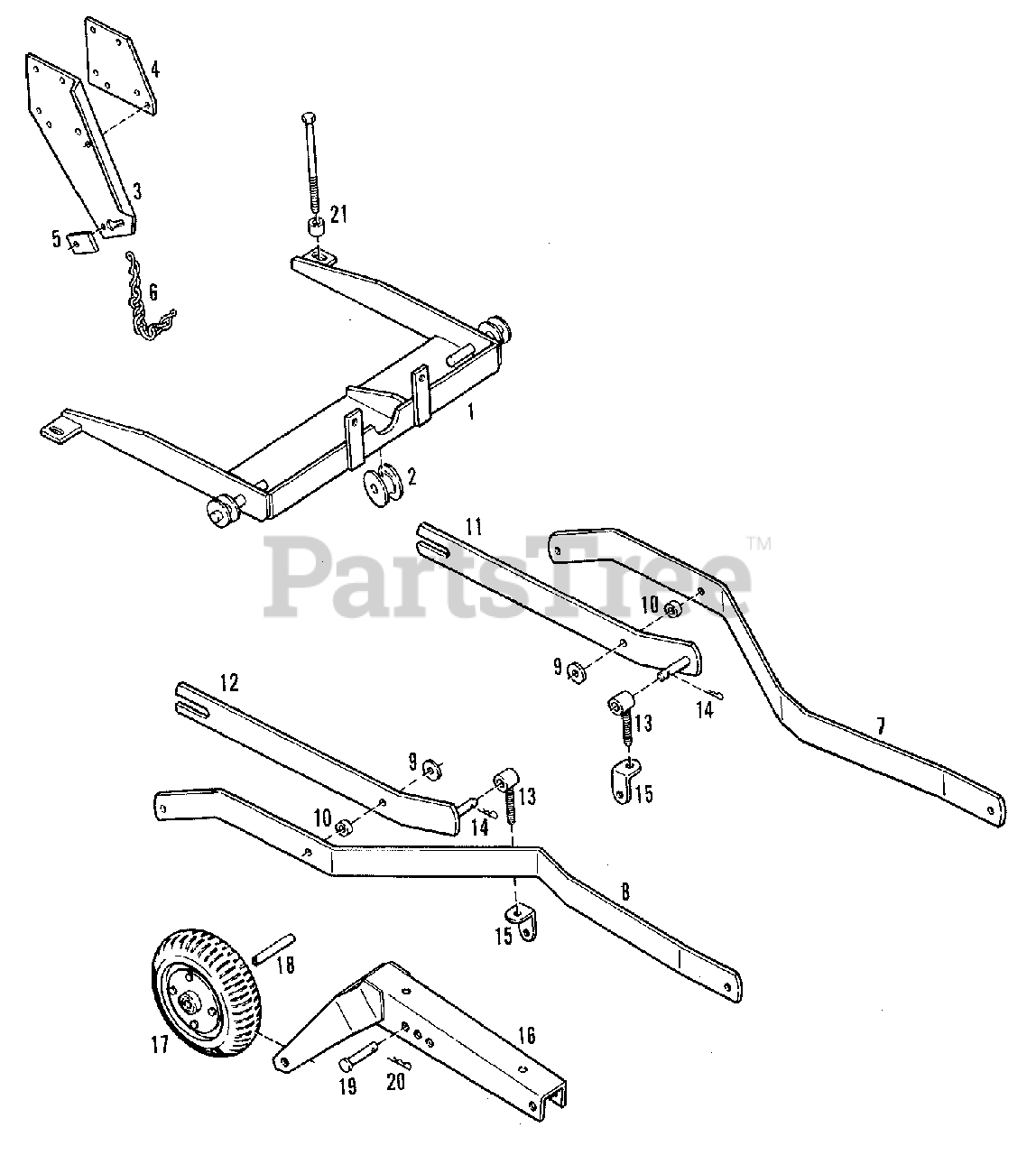

Belly Mounting & Linkage Group (3482I56) Parts Diagram

  • Title

1

Simplicity 2107353-1

BRACKET ASSEMBLY, Belly Mouting

$

$

Not available

2

Simplicity 2107352-3

SHEAVE, Chain

$

$

Not available

2

Simplicity 0926155-3

CAPSCREW, 1/2NC x 3

$

$

Not available

2

Simplicity 0923352-9

NUT, Lock, 1/2NC

$

$

Not available

3

Simplicity 2107354-9

ARM, Lift

$

$

Not available

3

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

3

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 2107355-6

PLATE, Lift Arm

$

$

Not available

5

Simplicity 2107356-4

TAB, Chain Lock

$

$

Not available

5

Simplicity 0921960-1

CAPSCREW, 1/4NC x 1

$

$

Not available

5

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

5

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

6

Simplicity 2107351-5

CHAIN, Lift, 42"

$

$

Not available

7

Simplicity 2107338-2

BAR, Linkage, L.H.

$

$

Not available

7

Simplicity 0921898-3

CAPSCREW, 1/2NC x 2

$

$

Not available

7

Simplicity 0923352-9

NUT, Lock, 1/2NC

$

$

Not available

8

Simplicity 2107339-0

BAR, Linkage, R.H.

$

$

Not available

8

Simplicity 0921898-3

CAPSCREW, 1/2NC x 2

$

$

Not available

8

Simplicity 0923352-9

NUT, lock, 1/2NC

$

$

Not available

9

Simplicity 2107316-8

WASHER, Flat, Spindle

$

$

Not available

10

Simplicity 2107340-8

BUSHING, Pivot

$

$

Not available

11

Simplicity 2107342-4

BAR ASSEMBLY, Linkage, L.H.

$

$

Not available

12

Simplicity 2107343-2

BAR ASSEMBLY, Linkage, R.H.

$

$

Not available

13

Simplicity 2107345-7

SCREW, Leveling

$

$

Not available

14

Simplicity 2107337-4

PIN, Hair, Cotter, No. 6

$

$

Not available

15

Simplicity 2107344-0

LINK, Leveling

$

$

Not available

15

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

15

Simplicity 0923352-9

NUT, Lock, 1/2NC

$

$

Not available

16

Simplicity 2107346-5

ARM ASSEMBLY, Guage Wheel

$

$

Not available

16

Simplicity 0920990-9

CAPSCREW, 1/2NC x 3-1/2

$

$

Not available

16

Simplicity 0923352-9

NUT, Lock, 1/2NC

$

$

Not available

17

Simplicity 2107350-7

TIRE & WHEEL, Gauge

$

$

Not available

18

Simplicity 2107349-9

BUSHING, Guage Wheel

$

$

Not available

18

Simplicity 0923161-4

CAPSCREW, 1/2NC x 4-1/2

$

$

Not available

18

Simplicity 0923352-9

NUT, Lock, 1/2NC

$

$

Not available

19

Simplicity 2107347-3

PIN, Clevis, 1/2 x 3

$

$

Not available

20

Simplicity 2107348-1

PIN, Hair, Cotter, No. 4

$

$

Not available

21

Simplicity 2107367-1

SPACER, Mounting

$

$

Not available

21

Simplicity 0926133-0

CAPSCREW, 1/2NC x 7

$

$

Not available

-

Simplicity 2107303-6

HARDWARE KIT (For ROPS-Equipped Tractor)

$

$

Not available
