2024750 - Simplicity Model 68 Rotor Tiller Frames - Main Frame & Shields Group (3482I126) Parts Diagram

Model 68 Rotor Tiller

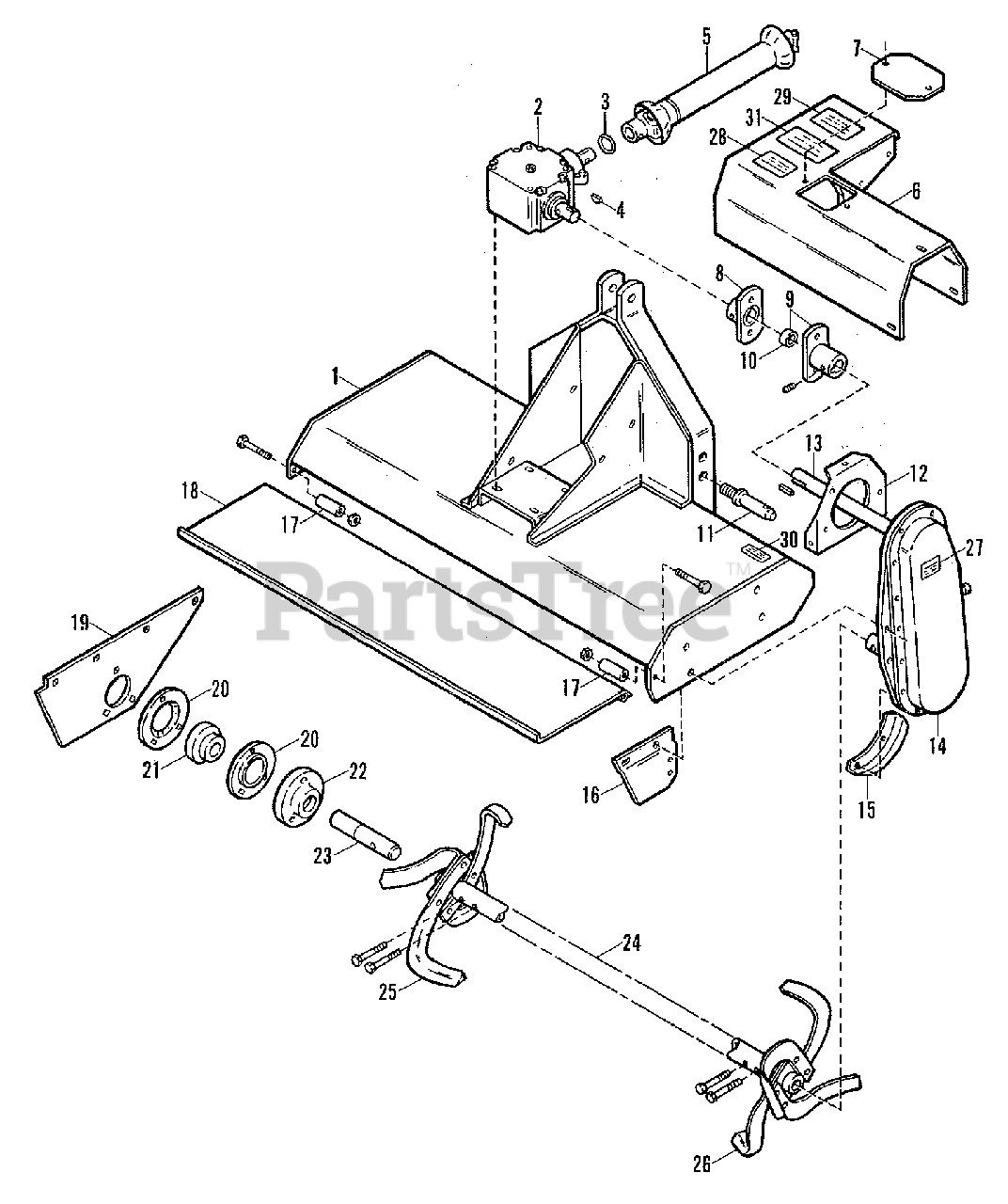

Frames - Main Frame & Shields Group (3482I126) Parts Diagram

  • Title

1

Simplicity 2070014-2

HOUSING, Tiller

$

$

Not available

2

Simplicity 2069904-7

GEARBOX ASSEMBLY, Complete

$

$

Not available

2

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

2

Simplicity 0919382-2

WASHER, Plain, 3/8 x 1 x 12 Ga.

$

$

Not available

2

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

3

Simplicity 2069908-8

RING, Retaining

$

$

Not available

4

Simplicity 0905126-9

KEY, Woodruff, 1/4 x 1

$

$

Not available

5

Simplicity 2069905-4

UNIVERSAL ASSEMBLY, Complete

$

$

Not available

5

Simplicity 0921494-1

CAPSCREW, Socket Head, 5/16NC x 2, Gr. 8

$

$

Not available

5

Simplicity 0923422-0

NUT, Lock, 5/16nc

$

$

Not available

6

Simplicity 2070015-9

SHIELD, Drive

$

$

Not available

6

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

6

Simplicity 0920787-9

CAPSCREW, 5/16NC x 1/2

$

$

Not available

6

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

6

Simplicity 0924817-0

WASHER, Plain, 5/16 x 3/4 x 14 Ga.

$

$

Not available

7

Simplicity 2069906-2

PLATE, Inspection Cover

$

$

Not available

7

Simplicity 0920787-9

CAPSCREW, 5/16NC x 1/2

$

$

Not available

7

Simplicity 0917356-8

LOCKWSHER, 5/16

$

$

Not available

8

Simplicity 2069909-6

FLANGE, Shear Plate

$

$

Not available

8

Simplicity 0922837-0

CAPSCREW, 1/4NC x 1-1/2

$

$

Not available

8

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

8

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

8

Simplicity 0921494-1

CAPSCREW, Socket Head, 5/16NC x 2, Gr. 8

$

$

Not available

8

Simplicity 0923422-0

NUT, Lock, 5/16NC

$

$

Not available

9

Simplicity 2069911-2

FLANGE, Shear Plate

$

$

Not available

9

Simplicity 0923326-3

SETSCREW, Square Head, Cup Point, 3/8NC x 1

$

$

Not available

9

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

10

Simplicity 2070017-5

BUSHING, Flange

$

$

Not available

11

Simplicity 2069910-4

PIN, Link

$

$

Not available

11

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

11

Simplicity 0920747-3

NUT, 7/8NF

$

$

Not available

12

Simplicity 2069912-0

PLATE, End, Drive Shield

$

$

Not available

13

Simplicity 2070019-1

SHAFT, Input

$

$

Not available

13

Simplicity 0933353-5

KEY, Woodruff, 5/16 Square x 2

$

$

Not available

14

CHAINCASE ASSEMBLY

$

$

Not available

14

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

14

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

14

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

14

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

14

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

14

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

15

Simplicity 2069913-8

SKID, Shoe

$

$

Not available

16

Simplicity 2069921-1

DEFLECTOR, Spill

$

$

Not available

17

Simplicity 2069902-1

BUSHING, Hinge

$

$

Not available

17

Simplicity 0923903-9

CAPSCREW, 3/8NC x 3

$

$

Not available

17

Simplicity 0916954-1

NUT, Lock, 3/8NC

$

$

Not available

18

Simplicity 2070013-4

SHIELD, Rear

$

$

Not available

19

Simplicity 2069900-5

PLATE, Mounting, L.H.

$

$

Not available

19

Simplicity 0922786-9

BOLT, Carriage, 3/8NC x 1

$

$

Not available

19

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

19

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

20

Simplicity 2069919-5

FLANGE, Bearing

$

$

Not available

20

Simplicity 0922787-7

BOLT, Carriage, 3/8NC x 1-1/2

$

$

Not available

20

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

20

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

21

Simplicity 2069918-7

BEARING

$

$

Not available

22

Simplicity 2069917-9

COVER, Dust Excluder

$

$

Not available

23

Simplicity 2069920-3

SHAFT, Support

$

$

Not available

24

Simplicity 2070016-7

TUBE, Tine Mounting

$

$

Not available

24

Simplicity 0923320-6

CAPSCREW, 1/2NC x 3

$

$

Not available

24

Simplicity 0930648-1

NUT, Lock, 1/2NC

$

$

Not available

25

Simplicity 2069914-6

TINE, R.H.

$

$

Not available

25

Simplicity 0918903-6

CAPSCREW, 7/16NF x 1-1/2

$

$

Not available

25

Simplicity 0930734-9

NUT, Crown Lock, 7/16NF

$

$

Not available

26

Simplicity 2069915-3

TINE, L.H.

$

$

Not available

26

Simplicity 0918903-6

CAPSCREW, 7/16NF x 1-1/2

$

$

Not available

26

Simplicity 0930734-9

NUT, Crown Lock, 7/16NF

$

$

Not available

27

Simplicity 2070005-0

DECAL, Caution (Stand Clar)

$

$

Not available

28

Simplicity 2070006-8

DECAL, Warning (Shields)

$

$

Not available

29

Simplicity 2070007-6

DECAL, Warning (P.T.O.)

$

$

Not available

30

Simplicity 2070008-4

DECAL, Warning

$

$

Not available

31

Simplicity 2070009-2

DECAL, Notice (Shear Pin)

$

$

Not available

-

Simplicity 2070004-3

DECAL KIT, Repaint

$

$

Not available
