2024750 - Simplicity Model 68 Rotor Tiller Drives - Gearbox Group (3482I129) Parts Diagram

Model 68 Rotor Tiller

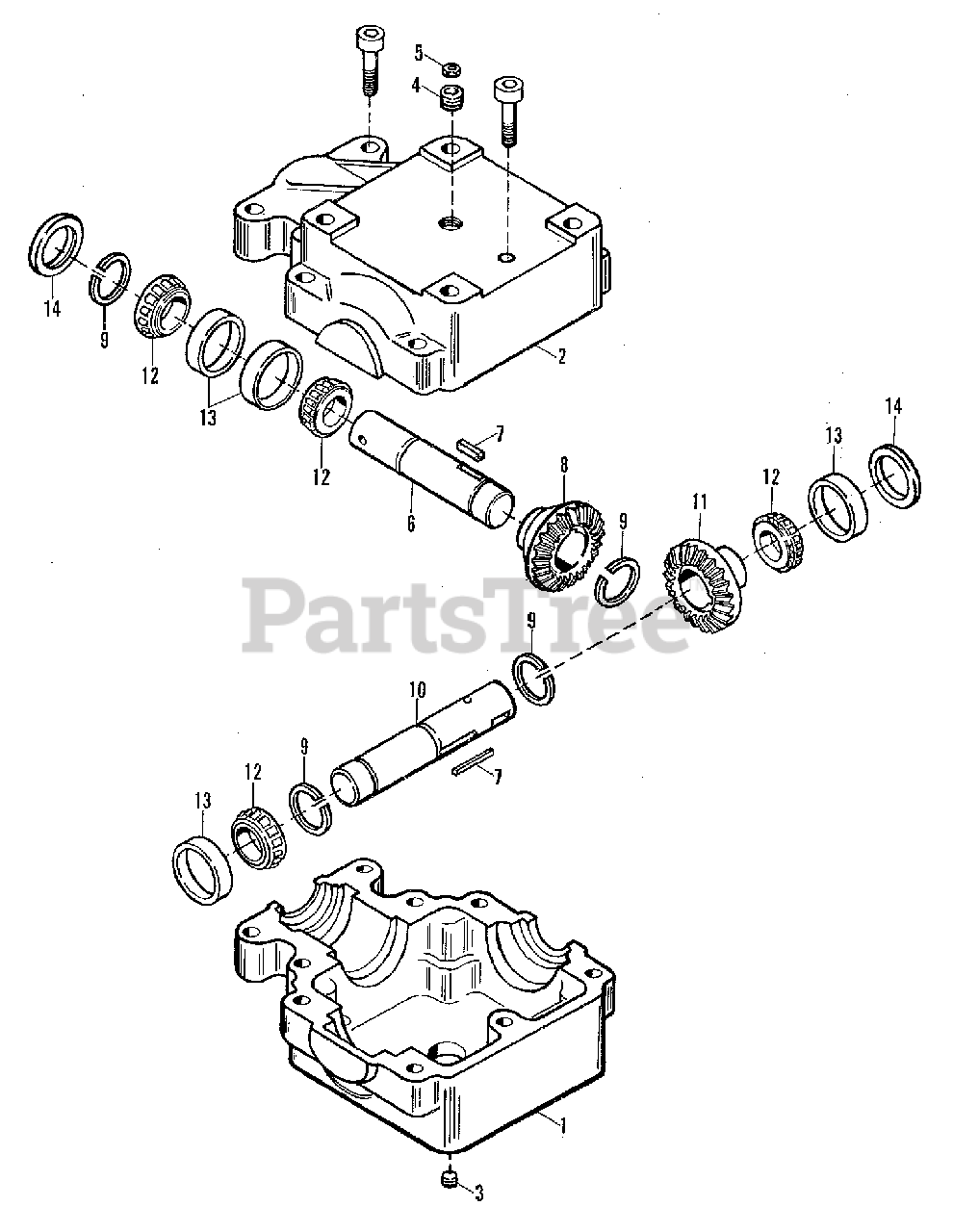

Drives - Gearbox Group (3482I129) Parts Diagram

  • Title

-

Simplicity 2069904-7

GEARBOX ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2108591-5

HOUSING, Half (Treaded Holes)

$

$

Not available

2

Simplicity 2108592-3

HOUSING, Half (Thru Holes)

$

$

Not available

2

Simplicity 0912268-0

CAPSCREW, Socket Head, 3/8NC x 1-1/2

$

$

Not available

2

Simplicity 0923136-6

CAPSCREW, Socket Head, 3/8NC x 2-1/2

$

$

Not available

3

Simplicity 2108598-0

PLUG, Pipe

$

$

Not available

4

Simplicity 2069942-7

BUSHING, Pipe Adapter

$

$

Not available

5

Simplicity 2108545-1

PLUG, Pressure Relief (5 P.S.I.)

$

$

Not available

6

Simplicity 2069938-5

SHAFT, Pinion

$

$

Not available

7

Simplicity 2108597-2

KEY, Woodruff

$

$

Not available

8

Simplicity 2069944-3

GEAR, Pinion

$

$

Not available

9

Simplicity 2108596-4

RING, Retaining

$

$

Not available

10

Simplicity 2069943-5

SHAFT, Cross

$

$

Not available

11

Simplicity 2069934-4

GEAR (24T)

$

$

Not available

12

Simplicity 2069940-1

CONE, Bearing

$

$

Not available

13

Simplicity 2069941-9

CUP, Bearing

$

$

Not available

14

Simplicity 2108595-6

SEAL

$

$

Not available

-

Simplicity 0930239-9

PRIMER, Loctite (4 oz.)

$

$

Not available

-

Simplicity 0935257-6

LOCTITE 515 (10cc)

$

$

Not available
