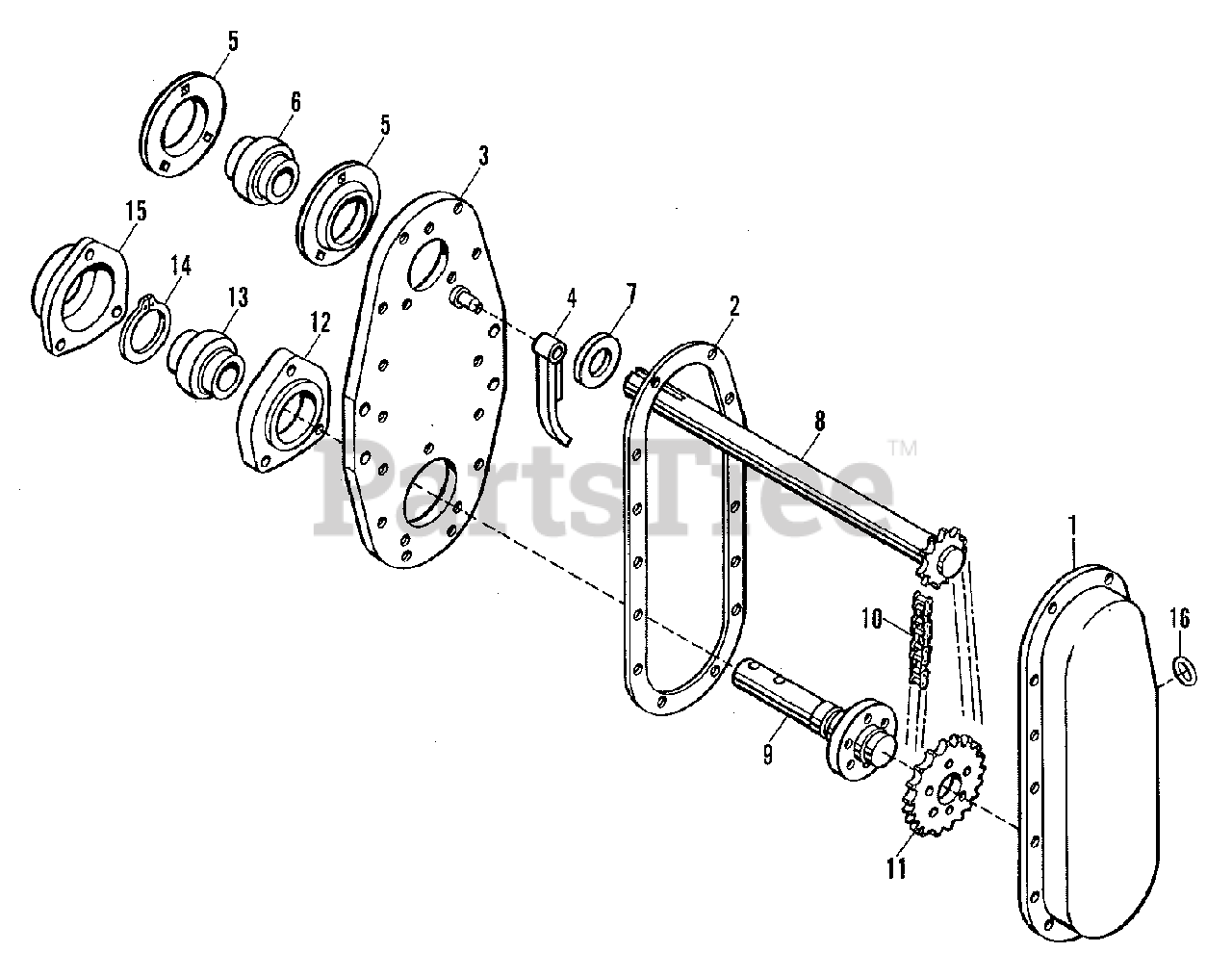

2024750 - Simplicity Model 68 Rotor Tiller Drives - Chaincase Group (3482I128) Parts Diagram

Model 68 Rotor Tiller

Drives - Chaincase Group (3482I128) Parts Diagram

  • Title

1

Simplicity 2069929-4

COVER, Chaincase

$

$

Not available

1

Simplicity 0920787-9

CAPSCREW, 5/16NC x 1/2

$

$

Not available

1

Simplicity 0921333-1

CAPSCREW, 5/16NC 1

$

$

Not available

1

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

1

Simplicity 0929299-6

CAPSCREW, Full Thread, 1/2NC x 2

$

$

Not available

1

Simplicity 0923912-0

WASHER, Plain, 1/2 x 1 x 14 Ga.

$

$

Not available

1

Simplicity 0913744-9

NUT, Jam, 1/2NC

$

$

Not available

2

Simplicity 2069924-5

GASKET, Cover

$

$

Not available

3

Simplicity 2069937-7

PLATE, Chaincase

$

$

Not available

4

Simplicity 2069927-8

TIGHTENER, Chain

$

$

Not available

5

Simplicity 2069923-7

FLANGE, Bearing

$

$

Not available

5

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

5

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 2069922-9

BEARING

$

$

Not available

7

Simplicity 2070018-3

SPACER

$

$

Not available

8

Simplicity 2070019-1

SHAFT, Input

$

$

Not available

9

Simplicity 2069932-8

SHAFT, Output

$

$

Not available

10

Simplicity 2069931-0

CHAIN ASSEMBLY, Roller, #60 Heavy

$

$

Not available

11

Simplicity 2069930-2

SPROCKET

$

$

Not available

11

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

11

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

12

Simplicity 2069933-6

HOUSING, Bearing

$

$

Not available

13

Simplicity 2069934-4

BEARING

$

$

Not available

14

Simplicity 2069935-1

RING, Retaining

$

$

Not available

15

Simplicity 2069936-9

SHIELD, Dust

$

$

Not available

15

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

15

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

16

Simplicity 2069928-6

O-RING

$

$

Not available
