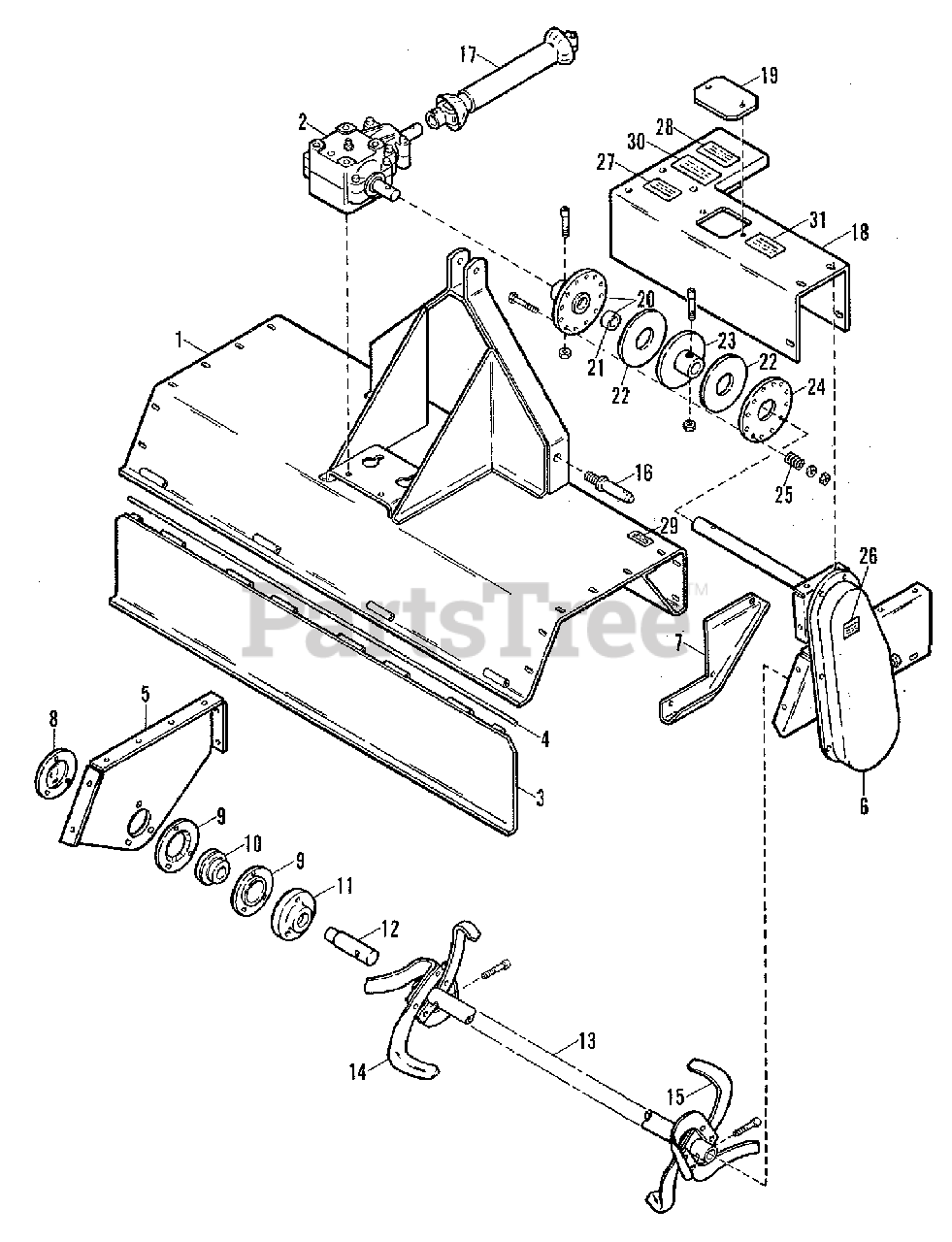

2024749 - Simplicity Model 67 Rotor Tiller Frames - Main Frame & Shields Group (3482I121) Parts Diagram

Model 67 Rotor Tiller

Frames - Main Frame & Shields Group (3482I121) Parts Diagram

  • Title

1

Simplicity 2069951-8

HOUSING, Tiller

$

$

Not available

2

Simplicity 2069962-5

GEARBOX ASSEMBLY, Complete

$

$

Not available

2

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

2

Simplicity 0923912-0

WASHER, Plain, 1/2 x 1 x 14 Ga.

$

$

Not available

2

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 2069953-4

SHIELD, Rear

$

$

Not available

4

Simplicity 2069956-7

ROD, Rear Shield

$

$

Not available

4

Simplicity 0918452-4

PIN, Cotter, 1/8 x 1

$

$

Not available

5

Simplicity 2069952-6

PLATE, End, L.H.

$

$

Not available

5

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 0917642-1

WASHER, Plain, 3/8 x 3/4 x 16 Ga.

$

$

Not available

5

Simplicity 0916956-6

LOCKWASHER, 3/8

$

$

Not available

6

CHAINCASE ASSEMBLY

$

$

Not available

6

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

6

Simplicity 0917642-1

WASHER, Plain, 3/8 x 3/4 x 16 Ga.

$

$

Not available

6

Simplicity 0916956-6

LOCKWASHER, 3/8

$

$

Not available

7

Simplicity 2069966-6

SHOE

$

$

Not available

7

Simplicity 0921926-2

BOLT, Carriage, 5/16NC x 1-1/4

$

$

Not available

7

Simplicity 0919326-9

WASHER, Plain, 11/32 x 3/4 x 16 Ga.

$

$

Not available

7

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

7

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

8

Simplicity 2069967-4

CAP, End

$

$

Not available

8

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

8

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

8

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

9

Simplicity 2069919-5

FLANGE, Bearing

$

$

Not available

10

Simplicity 2069918-7

BEARING

$

$

Not available

11

Simplicity 2069968-2

COVER, Dust Excluder

$

$

Not available

12

Simplicity 2069957-5

SHAFT, L.H.

$

$

Not available

13

Simplicity 2069958-3

TUBE, Tine Mounting

$

$

Not available

13

Simplicity 0912281-3

CAPSCREW, Socket Head, 1/2NC x 2-1/2, Gr. 8

$

$

Not available

13

Simplicity 0930648-1

NUT, Lock, 1/2

$

$

Not available

14

Simplicity 2069959-1

TINE, L.H.

$

$

Not available

14

Simplicity 0918903-6

CAPSCREW, 7/16NF x 1-1/2

$

$

Not available

14

Simplicity 0930734-9

NUT, Crown Lock, 7/16NF

$

$

Not available

15

Simplicity 2069960-9

TINE, R.H.

$

$

Not available

15

Simplicity 0918903-6

CAPSCREW, 7/16NF x 1-1/2

$

$

Not available

15

Simplicity 0930734-9

NUT, Crown Lock, 7/16NF

$

$

Not available

16

Simplicity 2069910-4

PIN, Link

$

$

Not available

16

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

16

Simplicity 0920747-3

NUT, 7/8NC

$

$

Not available

17

Simplicity 2069961-7

UNIVERSAL ASSEMBLY, Complete

$

$

Not available

17

Simplicity 0923136-6

CAPSCREW, Socket Head, 3/8NC x 2-1/2, Gr. 8

$

$

Not available

17

Simplicity 2069969-0

NUT, Flange Lock, 3/8NC

$

$

Not available

18

Simplicity 2070029-0

SHIELD, Clutch

$

$

Not available

18

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

18

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

18

Simplicity 0919326-9

WASHER, Plain, 11/32 x 3/4 x 16 Ga.

$

$

Not available

18

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

18

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

19

Simplicity 2069906-2

COVER, Inspection Hole

$

$

Not available

19

Simplicity 0921332-3

CAPSCREW, 5/16NC x 3/4

$

$

Not available

19

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

20

Simplicity 2070028-2

HUB ASSEMBLY

$

$

Not available

20

Simplicity 0912281-3

CAPSCREW, Socket Head, 1/2NC x 2-1/2, Gr. 8

$

$

Not available

20

Simplicity 0930648-1

NUT, Lock, 1/2NC

$

$

Not available

20

Simplicity 0922918-8

CAPSCREW, 3/8NC x 3-1/4

$

$

Not available

20

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 14 Ga.

$

$

Not available

20

Simplicity 0916954-1

NUT, Lock, 3/8NC

$

$

Not available

21

Simplicity 2069964-1

BEARING, Bronze

$

$

Not available

22

Simplicity 2070027-4

DISK, Clutch

$

$

Not available

23

Simplicity 2070031-6

HUB, Inner Clutch

$

$

Not available

23

Simplicity 0912281-3

CAPSCREW, Socket Head, 1/2NC x 2-1/2, Gr. 8

$

$

Not available

23

Simplicity 0930648-1

NUT, Lock, 1/2NC

$

$

Not available

24

Simplicity 2070026-6

PLATE, Clutch

$

$

Not available

25

Simplicity 2070030-8

SPRING, Compression

$

$

Not available

26

Simplicity 2070005-0

DECAL, Caution (Stand Clear)

$

$

Not available

27

Simplicity 2070006-8

DECAL, Warning (Shield)

$

$

Not available

28

Simplicity 2070007-6

DECAL, Warning (P.T.O.)

$

$

Not available

29

Simplicity 2070008-4

DECAL, Warning (Storage Support)

$

$

Not available

30

Simplicity 2070009-2

DECAL, Notice (Shear Pin)

$

$

Not available

31

Simplicity 2070012-6

DECAL, Caution (Slip Clutch

$

$

Not available

-

Simplicity 2070004-3

DECAL KIT, Repaint

$

$

Not available
