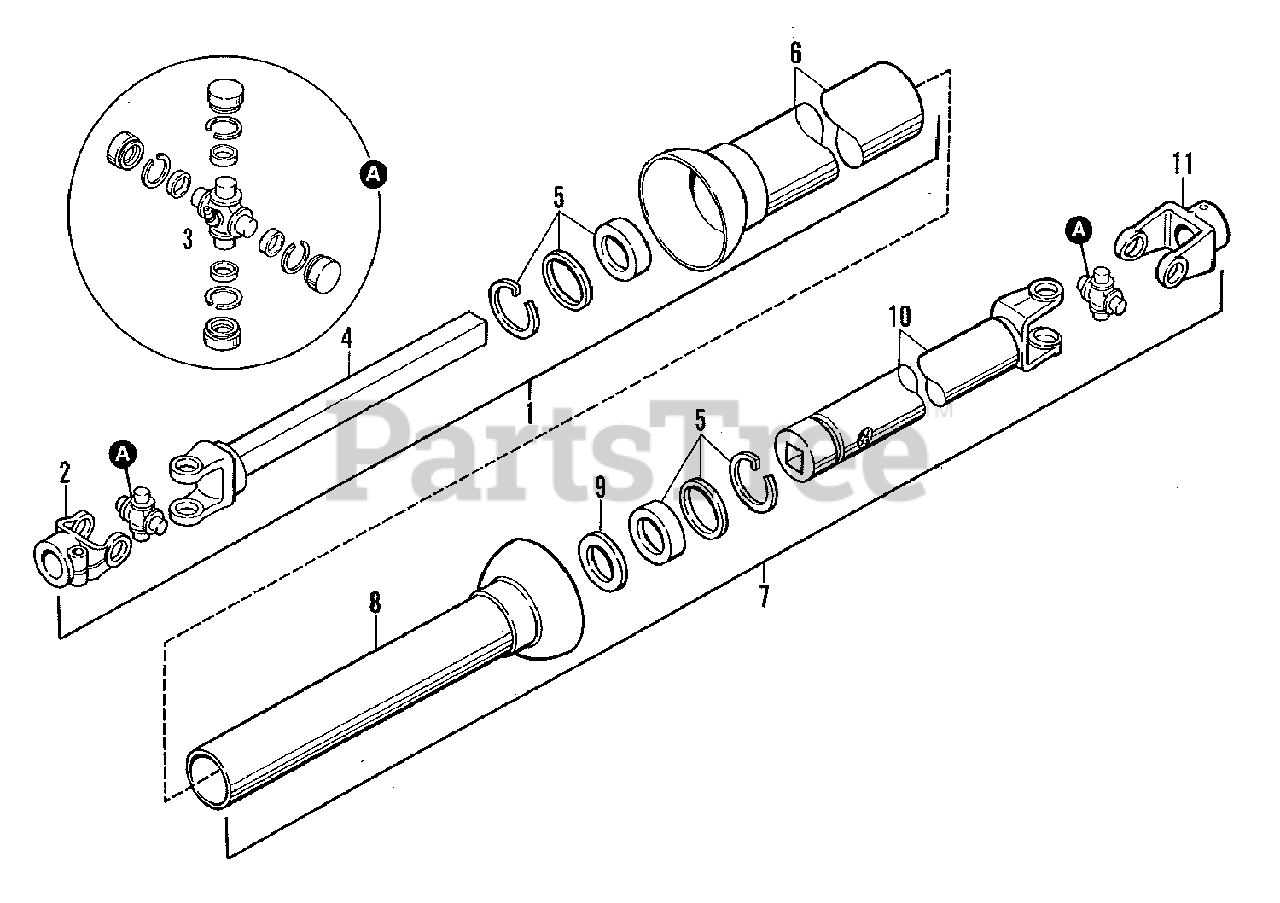

2024749 - Simplicity Model 67 Rotor Tiller Drives - PTO Shafts & Joints Group (3482I125) Parts Diagram

Model 67 Rotor Tiller

Drives - PTO Shafts & Joints Group (3482I125) Parts Diagram

  • Title

1

Simplicity 2069997-1

PTO ASSEMBLY, Tractor End (Use 2018551 PTO Assembly)

$

$

Not available

1

Simplicity 2108551-9

PTO ASSEMBLY, Tractor End

$

$

Not available

2

Simplicity 2108553-5

YOKE, Tractor End

$

$

Not available

3

Simplicity 2069946-8

U-JOINT KIT

$

$

Not available

3

Simplicity 1174981-9

U-JOINT KIT

$

$

Not available

3

Simplicity 9002035-5

FITTING, Lube, Special Shoft, 1/4 x 65 Degrees

$

$

Not available

4

Simplicity 2069999-7

SHAFT & YOKE ASSEMBLY

$

$

Not available

4

Simplicity 2108554-3

SHAFT & YOKE ASSEMBLY

$

$

Not available

5

Simplicity 2108555-0

SHIELD KIT

$

$

Not available

6

Simplicity 2070000-1

SHIELD, Outer (Use SHIELD 2108557)

$

$

Not available

6

Simplicity 2108556-8

SHIELD, Outer

$

$

Not available

7

Simplicity 2069998-9

PTO ASSEMBLY, Implement End

$

$

Not available

7

Simplicity 2108552-7

PTO ASSEMBLY, Implement End

$

$

Not available

8

Simplicity 2070001-9

SHIELD, Inner

$

$

Not available

8

Simplicity 2108557-6

SHIELD, Inner

$

$

Not available

9

Simplicity 2069947-6

BEARING, Nylon

$

$

Not available

9

Simplicity 2108558-4

BEARING, Nylon

$

$

Not available

10

Simplicity 2070002-7

TUBE & YOKE ASSEMBLY (Use TUBE & YOKE ASSEMBLY 2108559)

$

$

Not available

10

Simplicity 2108559-2

TUBE & YOKE ASSEMBLY

$

$

Not available

11

Simplicity 2070003-5

YOKE, Implement End

$

$

Not available

11

Simplicity 0923136-6

CAPSCREW, Socket Head, 3/8NC x 2-1/2, Gr. 8

$

$

Not available

11

Simplicity 2069969-0

NUT, Lock, Flange, 3/8NC

$

$

Not available

11

Simplicity 2108560-0

YOKE, Implement End (Type l)

$

$

Not available

11

Simplicity 2108609-5

YOKE, Implement End (Type ll)

$

$

Not available

11

Simplicity 0912269-8

CAPSCREW, Socket Head, 3/8NC x 2, Gr. 8

$

$

Not available
