2024749 - Simplicity Model 67 Rotor Tiller Drives - Chaincase Group (3482I123) Parts Diagram

Model 67 Rotor Tiller

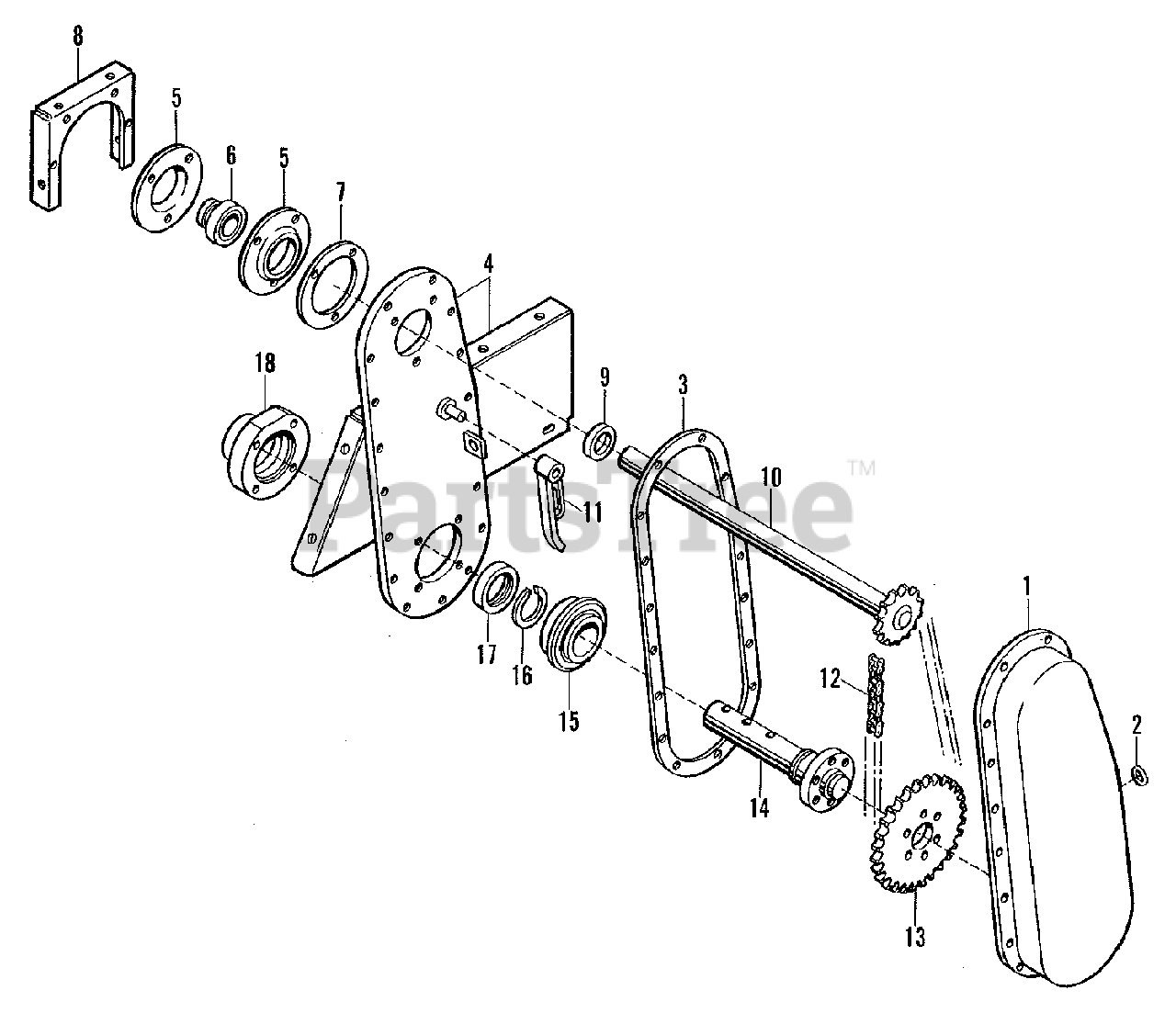

Drives - Chaincase Group (3482I123) Parts Diagram

  • Title

1

Simplicity 2070032-4

COVER, Chain Case

$

$

Not available

1

Simplicity 0921333-1

CAPSCREW, 5/16NC x 1

$

$

Not available

1

Simplicity 0920787-9

CAPSCREW, 5/16NC x 1/2

$

$

Not available

1

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

1

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

1

Simplicity 0923912-0

WASHER, Plain, 1/2 x 1 x 14 Ga.

$

$

Not available

1

Simplicity 0932567-1

CAPSCREW, Full Thread, 1/2NC x 3

$

$

Not available

1

Simplicity 0913744-9

NUT, Jam, 1/2NC

$

$

Not available

2

Simplicity 2069928-6

O-RING

$

$

Not available

3

Simplicity 2069975-7

GASKET, Cover

$

$

Not available

4

Simplicity 2069970-8

PLATE ASSEMBLY, Chaincase

$

$

Not available

5

Simplicity 2069919-5

FLANGE, Bearing

$

$

Not available

5

Simplicity 0921965-0

CAPSCREW, 3/8NC x 3/4

$

$

Not available

5

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 2069982-3

BEARING

$

$

Not available

7

Simplicity 2069979-9

GASKET, Flange

$

$

Not available

8

Simplicity 2070033-2

BRACKET, Angle Clip

$

$

Not available

9

Simplicity 2069978-1

SPACER

$

$

Not available

10

Simplicity 2069972-4

SHAFT, Input (w/Splines)

$

$

Not available

11

Simplicity 2069977-3

TIGHTENER, Chain

$

$

Not available

12

Simplicity 2069981-5

CHAIN ASSEMBLY, Roller, #80

$

$

Not available

13

Simplicity 2069980-7

SPROCKET (18T)

$

$

Not available

13

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

13

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

14

Simplicity 2069973-2

SHAFT, Output

$

$

Not available

15

Simplicity 2069983-1

BEARING

$

$

Not available

16

Simplicity 2069985-6

RING, Retaining

$

$

Not available

17

Simplicity 2069984-9

SEAL, Oil

$

$

Not available

18

Simplicity 2069974-0

HOUSING, Bearing

$

$

Not available

18

Simplicity 0921969-2

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

18

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available
