2024 D (1694066) - AGCO 60" Garden Tractor, 24.5hp Diesel Engine Radiator & Hose Group Parts Diagram

60" Garden Tractor, 24.5hp Diesel

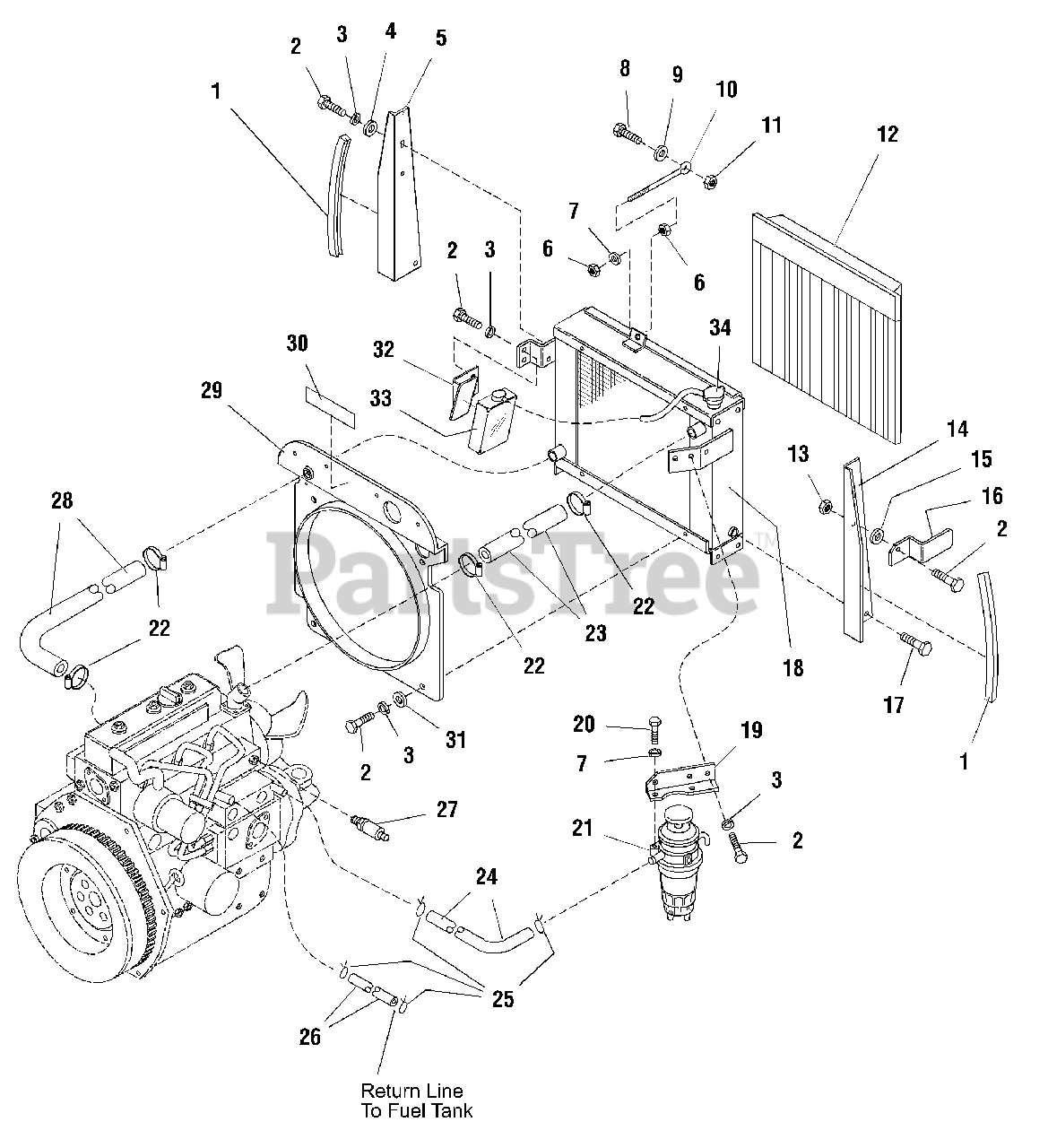

Engine Radiator & Hose Group Parts Diagram

  • Title

1

Simplicity 1718648SM

EDGING, Side

$15.99

$

Usually ships in 2-12 days

0

2

Simplicity 1923341SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

3

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1718635SM

SHIELD, RH

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1921210SM

CAPSCREW, Hex Hd, 1/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

9

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 1718594SM

ROD, Radiator

$

$

Not available

11

Simplicity 1919439SM

NUT, Hex, Nylon Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1718597ASM

SCREEN ASSY

$381.99

$

Usually ships in 2-12 days

0

13

Simplicity 1920397SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 1718636SM

SHIELD, LH

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1718642SM

LATCH, Door

$9.49

$

Usually ships in 2-12 days

0

17

Simplicity 1924856SM

CAPSCREW, Hex Hd, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

18

Simplicity 1719764SM

RADIATOR ASSY

$1341.99

$

Usually ships in 2-12 days

0

19

Simplicity 1718632SM

BRACKET, Fuel Filter

$9.49

$

Usually ships in 2-12 days

0

20

Simplicity 1950018SM

CAPSCREW, M8-1.25 x 20

$2.99

$

Usually ships in 2-12 days

0

21

FUEL FILTER ASSY.

$

$

Not available

22

Simplicity 1718679SM

CLAMP, Hose
(Superseded to 1725746SM)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1718630SM

HOSE, Engine Inlet

$27.99

$

Usually ships in 2-12 days

0

24

Simplicity 1718645SM

HOSE, Filter to Engine

$

$

Not available

25

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 1718646SM

HOSE, Engine to Tank

$

$

Not available

27

Simplicity 1718663SM

SENDER, Temperature

$46.99

$

Usually ships in 2-12 days

0

28

Simplicity 1718629SM

HOSE, Engine Return

$65.99

$

Usually ships in 2-12 days

0

29

Simplicity 1718499SM

SHROUD, Fan

$

$

Not available

30

Simplicity 1717596SM

DECAL, Radiator

$13.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960151SM

WASHER, Flat, 1/4
(Superseded to 703136)

$3.99

$

In Stock, only 1 left!

0

32

Simplicity 1718638SM

BRACKET ASSY, Overflow

$18.99

$

Usually ships in 2-12 days

0

33

RESERVOIR, Coolant

$

$

Not available

34

Simplicity 1720697SM

CAP, Radiator
(Superseded to 1737239SM)

$70.99

$

Usually ships in 2-12 days

0
