2024 D (1694066) - AGCO 60" Garden Tractor, 24.5hp Diesel Brake Control & Parking Brake Group Parts Diagram

60" Garden Tractor, 24.5hp Diesel

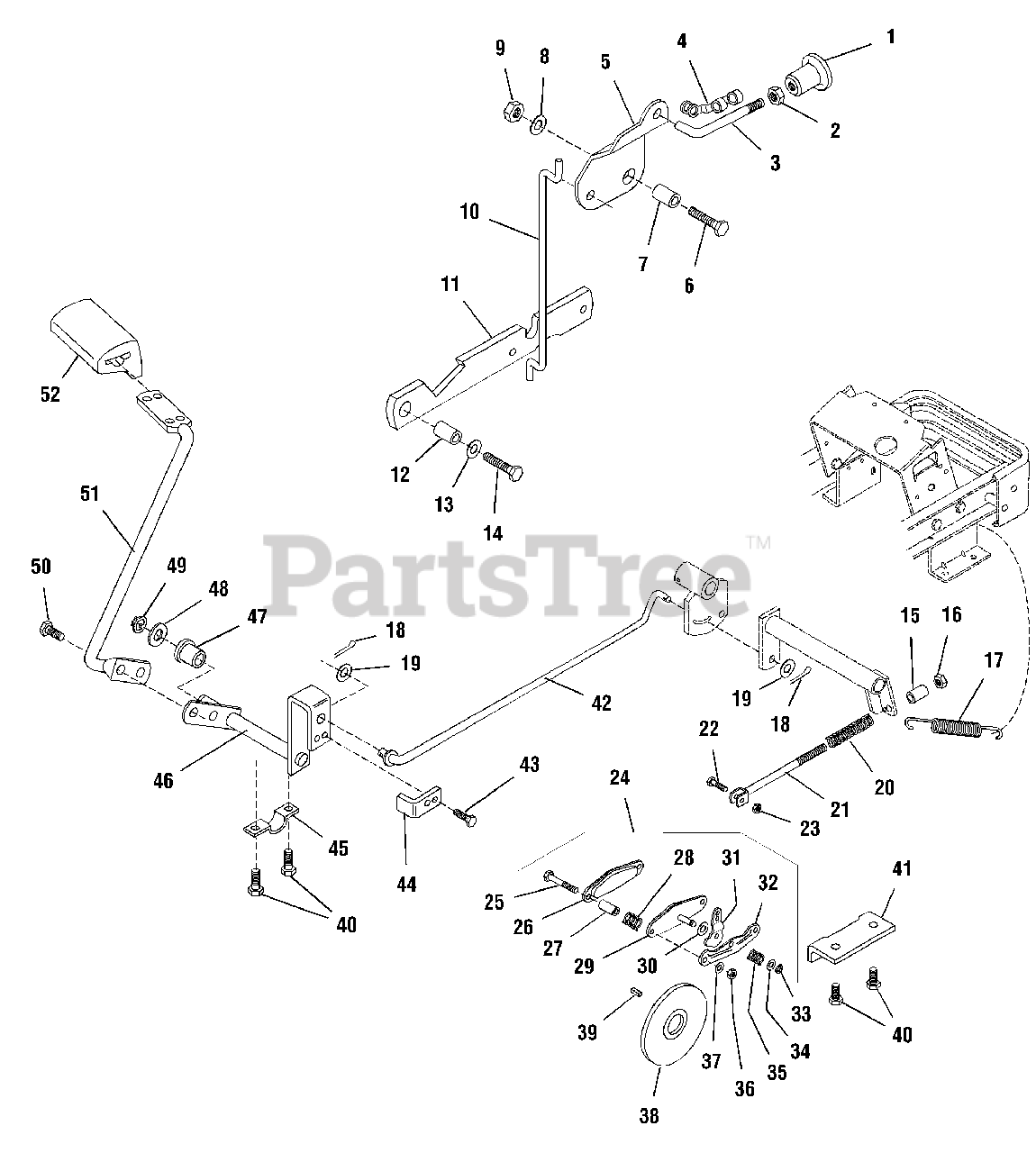

Brake Control & Parking Brake Group Parts Diagram

  • Title

1

Simplicity 1725277SM

KNOB, Parking Brake

$28.99

$

In Stock, only 3 left!

0

2

Simplicity 1960591SM

NUT, Hex Lock, #10-24

$3.49

$

In Stock, Qty 8

0

3

Simplicity 1717004SM

ROD, Park Brake

$8.99

$

In Stock, only 1 left!

0

4

Simplicity 1717024SM

CLIP, Rod

$7.49

$

In Stock, only 2 left!

0

5

Simplicity 1717006SM

BRACKET, Park Brake Pivot

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

7

Simplicity 1960234SM

SPACER, .281 x 1/2 x .32 LG

$9.99

$

Usually ships in 2-12 days

0

8

Simplicity 1921319SM

WASHER, Plain, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1923358SM

NUT, Hex, Center Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

10

Simplicity 1717005SM

ROD, Park Brake

$17.99

$

Usually ships in 2-12 days

0

11

Simplicity 1715846SM

BRACKET, Park Brake

$4.49

$

Usually ships in 2-12 days

0

12

Simplicity 1716360SM

SPACER, .325 x 3/4 x .63

$12.99

$

Usually ships in 2-12 days

0

13

Simplicity 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1931202SM

CAPSCREW, Hex Hd, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

15

Simplicity 1656397SM

SPACER

$28.99

$

In Stock, only 1 left!

0

16

Simplicity 1919439SM

NUT, Hex, Nylon Lock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 1704442SM

SPRING, Extension

$18.99

$

Usually ships in 2-12 days

0

18

Simplicity 1918451SM

PIN, Cotter, 1/8 x 3/4

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 1656632SM

SPRING, Compression

$

$

Not available

21

Simplicity 1716297SM

ROD ASSEMBLY, Brake

$23.99

$

In Stock, only 1 left!

0

22

Simplicity 1921960SM

CAPSCREW, Hex Hd, 1/4-20 x 1

$3.49

$

In Stock, only 1 left!

0

23

Simplicity 1920397SM

NUT, Hex, Nylon Lock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1716192SM

CALIPER ASSEMBLY, Brake

Note: (Includes Ref 25 thru 37 below)

$

$

Not available

25

Simplicity 1921963SM

CAPSCREW, Hex Hd, 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1718703SM

PAD, Brake, Outer

$164.99

$

Usually ships in 2-12 days

0

27

Simplicity 1718704SM

SPACER

$

$

Not available

28

Simplicity 1718705SM

SPRING, Compression

$2.49

$

Usually ships in 2-12 days

0

29

Simplicity 1718706SM

PAD, Brake, Inner

$186.99

$

Usually ships in 2-12 days

0

30

Simplicity 1718707SM

WASHER

$7.49

$

Usually ships in 2-12 days

0

31

Simplicity 1718708SM

BRACKET

$8.49

$

Usually ships in 2-12 days

0

32

Simplicity 1718709SM

BRACKET, Mounting

$18.99

$

Usually ships in 2-12 days

0

33

Simplicity 1718710SM

CLIP RING

$3.49

$

Usually ships in 2-12 days

0

34

Simplicity 1718711SM

WASHER

$

$

Not available

35

Simplicity 1718712SM

SPRING, Compression

$1.99

$

Usually ships in 2-12 days

0

36

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

38

Snapper 1716193SM

BRAKE, Disc

$

$

Not available

39

Simplicity 2805123SM

KEY, Woodruff, 3/16 x 3/4 #9
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

40

Simplicity 1664847SM

CAPSCREW, Hex Hd, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

41

Simplicity 1715860SM

BRACKET, Caliper Mtg.

$4.49

$

Usually ships in 2-12 days

0

42

Simplicity 1716190SM

ROD, Brake

$49.99

$

Usually ships in 2-12 days

0

43

Simplicity 1675044SM

RIVET, Pop, 3/16 x 7/16 lg

$3.99

$

In Stock, only 1 left!

0

44

Simplicity 1716318SM

ACTUATOR, Switch

$6.99

$

Usually ships in 2-12 days

0

45

Simplicity 1663942

STRAP

$

$

Not available

46

Simplicity 1715861SM

BRAKE ARM ASSEMBLY

$94.99

$

Usually ships in 2-12 days

0

47

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

48

Simplicity 1960114SM

WASHER, Plain, 3/4 x 1
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

49

Simplicity 2827794SM

CLIP RING, 3/4

$3.49

$

In Stock, Qty 16

0

50

Simplicity 1927187SM

CAPSCREW, Hex Hd, Taptite, 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0

51

Simplicity 1716327SM

LEVER, Brake

$30.99

$

Usually ships in 2-12 days

0

52

Simplicity 1716188SM

PAD, Brake Pedal

$

$

Not available
