20222 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1968) IMPULSE STARTER NO. 590378 Parts Diagram

Walk-Behind Mower

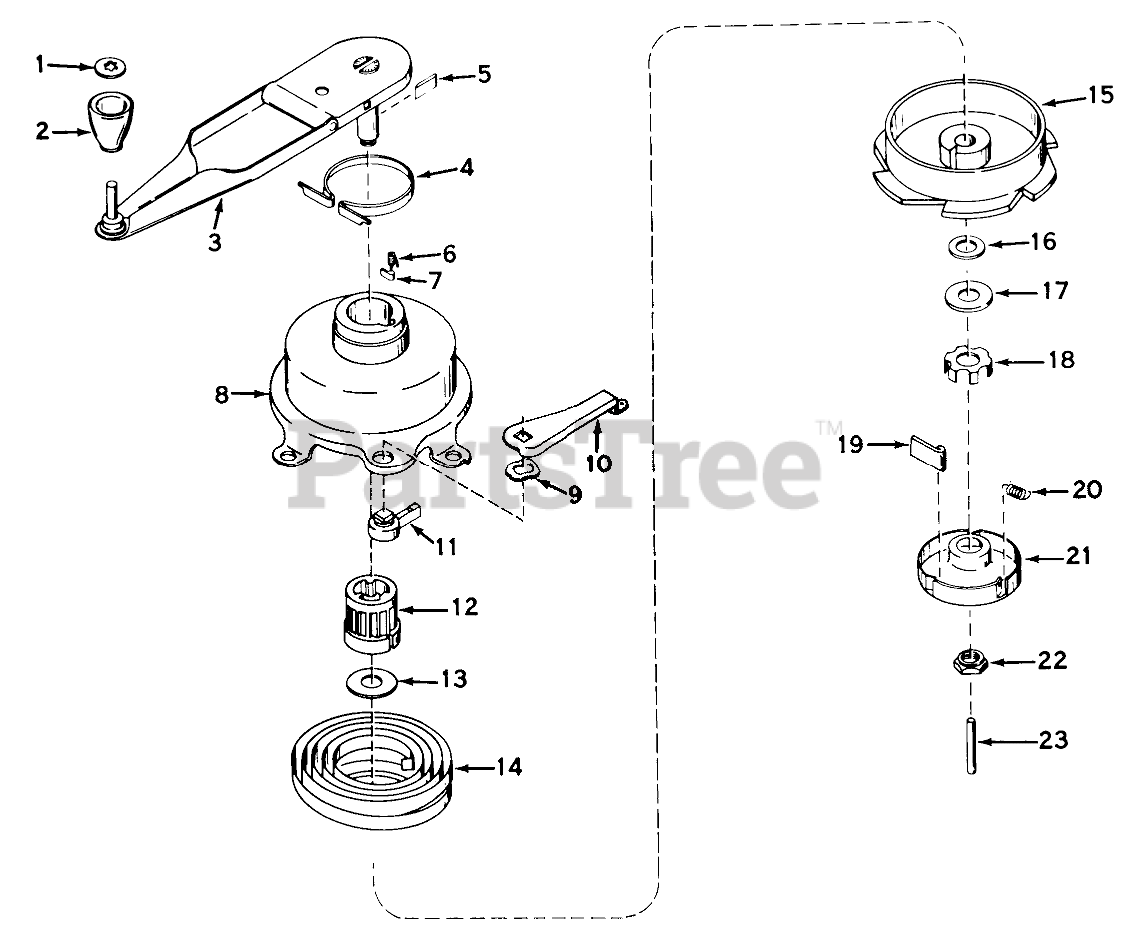

IMPULSE STARTER NO. 590378 Parts Diagram

  • Title
1

Tecumseh 29227

Fastener, Handle

$

$

Currently unavailable

2

Tecumseh 29228

Knob, Starter handle

$

$

Currently unavailable

3

Tecumseh 31458

Handle Assy., Starter Incl. Nos. 4 & 5)

$

$

Currently unavailable

4

Tecumseh 29935

Band, Brake

$

$

Currently unavailable

5

Tecumseh 29936

Dog, Wind

$

$

Currently unavailable

6

Tecumseh 30987

Spring, Lock Dog

$

$

Currently unavailable

7

Tecumseh 29937

Dog, Lock

$

$

Currently unavailable

8

Tecumseh 31421

Housing & Release Assy., Off set (Incl. Nos. 9, 10 & 11)
(Superseded to 590408)

$

$

Currently unavailable

9

Tecumseh 31412

Washer, Wave

$

$

Currently unavailable

10

Tecumseh 31422

Release Lever, Offset

$

$

Currently unavailable

11

Tecumseh 31419

Release Assy.

$

$

Currently unavailable

12

Tecumseh 31455

Bearing, Center

$

$

Currently unavailable

13

Tecumseh 31456

Washer, Spacer

$

$

Currently unavailable

14

Tecumseh 31413

Spring, Power

$

$

Currently unavailable

15

Tecumseh 31457

Hub, Spring

$

$

Currently unavailable

16

Tecumseh 31418

Washer, Shim (Use as req-d)

$

$

Currently unavailable

17

Tecumseh 29734

Washer, Brake

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 8

0

20

Tecumseh 29940

Spring, Retainer

$

$

Currently unavailable

21

Tecumseh 29942

Retainer

$

$

Currently unavailable

22

Tecumseh 31417

Nut, Shoulder

$

$

Currently unavailable

23

Tecumseh 29736

Pin, Centering

$

$

Currently unavailable
