20221x78A - Murray 20" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

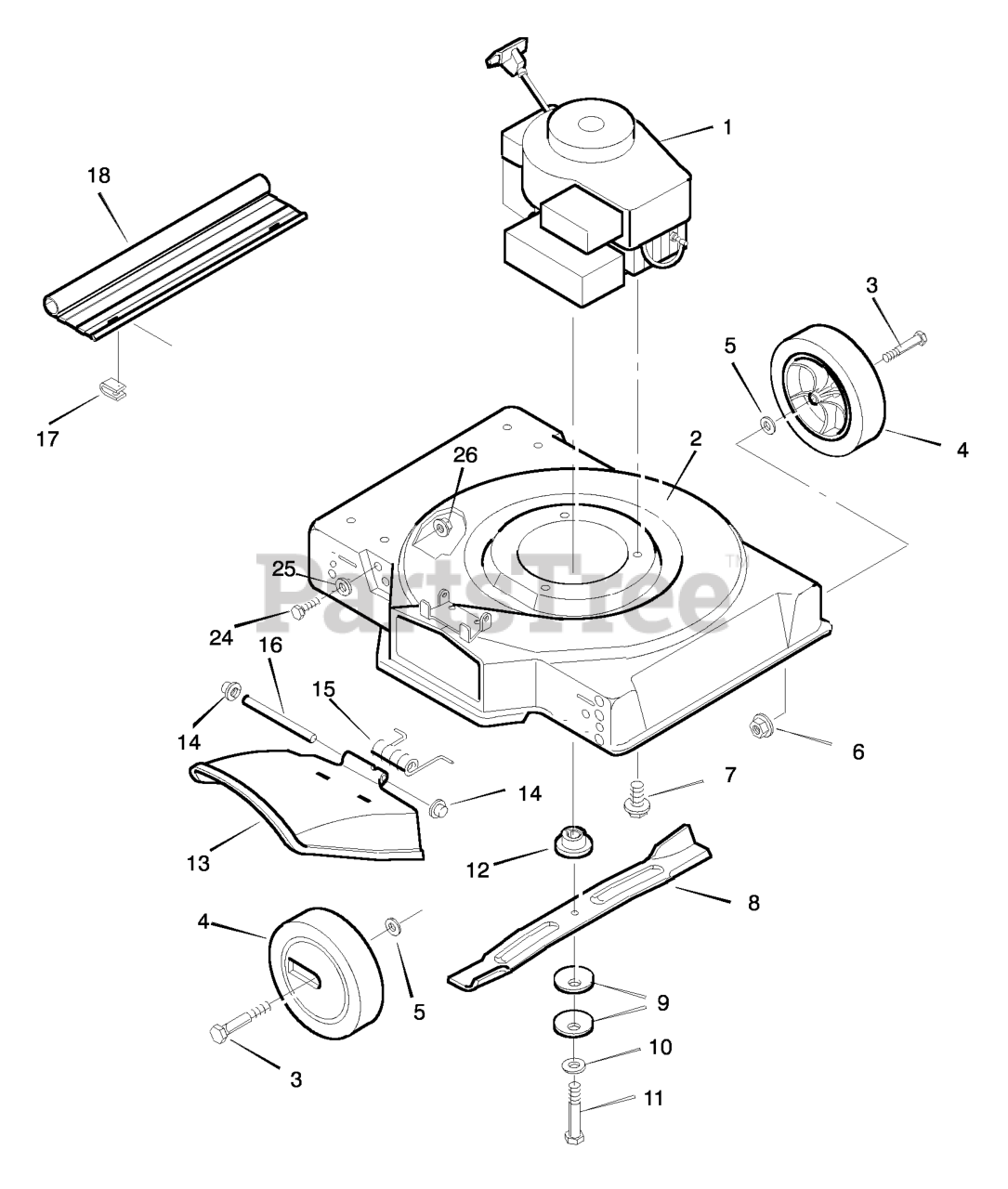

Mower Housing Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 70120A

Housing

$113.99

$

Usually ships in 2-12 days

0

3

Murray 009X10MA

Bolt, Axle

$

$

Not available

4

Murray 020270MA

Wheel and Tire
(Superseded to 336546MA)

$

$

Not available

5

Murray 010851 Z

Washer

$

$

Currently unavailable

6

Murray 015X68MA

Locknut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

8

Murray 042785E701MA

Blade

$23.99

$

Usually ships in 2-12 days

0

9

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

10

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

11

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

12

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

13

Murray 042919

Deflector, Chute

$

$

Currently unavailable

14

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

15

Murray 0166X5MA

Spring

$3.99

$

Usually ships in 2-12 days

0

16

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

17

Murray 042743MA

Retainer

$

$

Not available

18

Murray 042746MA

Guard, Rear

$

$

Not available

24

Murray 001X85MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

25

Murray 018X31MA

Washer

$4.49

$

Usually ships in 2-12 days

0

26

Murray 015X68MA

Locknut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

--

Murray F-98437

Book, Instruction

$

$

Currently unavailable
