20221Ax92A - Murray 20" Walk-Behind Mower (1996) Handle Assembly Parts Diagram

20" Walk-Behind Mower

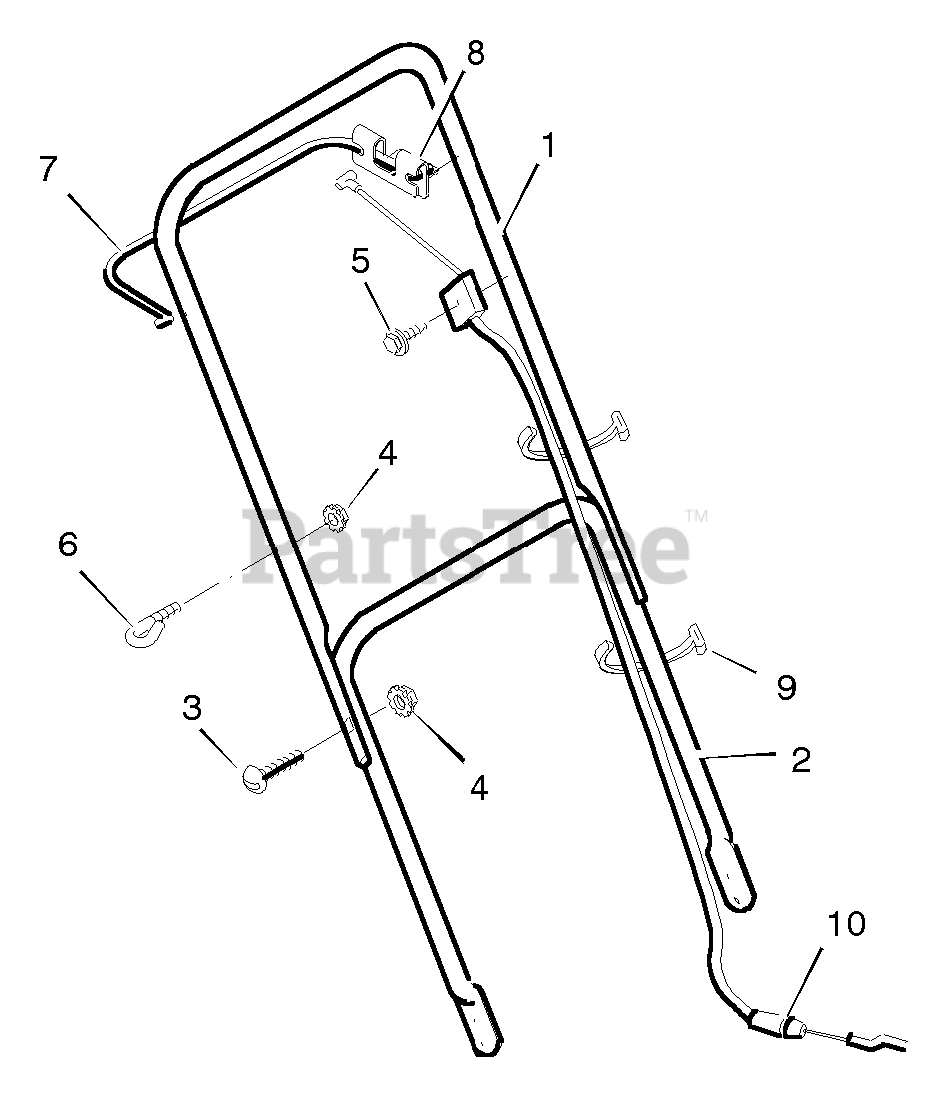

Handle Assembly Parts Diagram

  • Title
1

Murray 043838E701MA

Handle, Upper - Straight (Gray)

$112.99

$

Usually ships in 2-12 days

0

--

Murray 043838E701MA

Handle, Upper - Straight (Black)

$112.99

$

Usually ships in 2-12 days

0

2

Murray 071151E701MA

Handle, Lower (Gray)

$100.99

$

Usually ships in 2-12 days

0

--

Murray 071151E701MA

Handle, Lower (Black)

$100.99

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

4

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

$3.49

$

Usually ships in 2-12 days

0

6

Murray 043956MA

GUIDE, ROPE

$

$

Not available

7

Murray 43786E700

Engine Stop Lever - Straight

$

$

Currently unavailable

8

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

9

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

10

Murray 043824MA

Engine Stop Cable

$23.99

$

Usually ships in 2-12 days

0
