20217 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

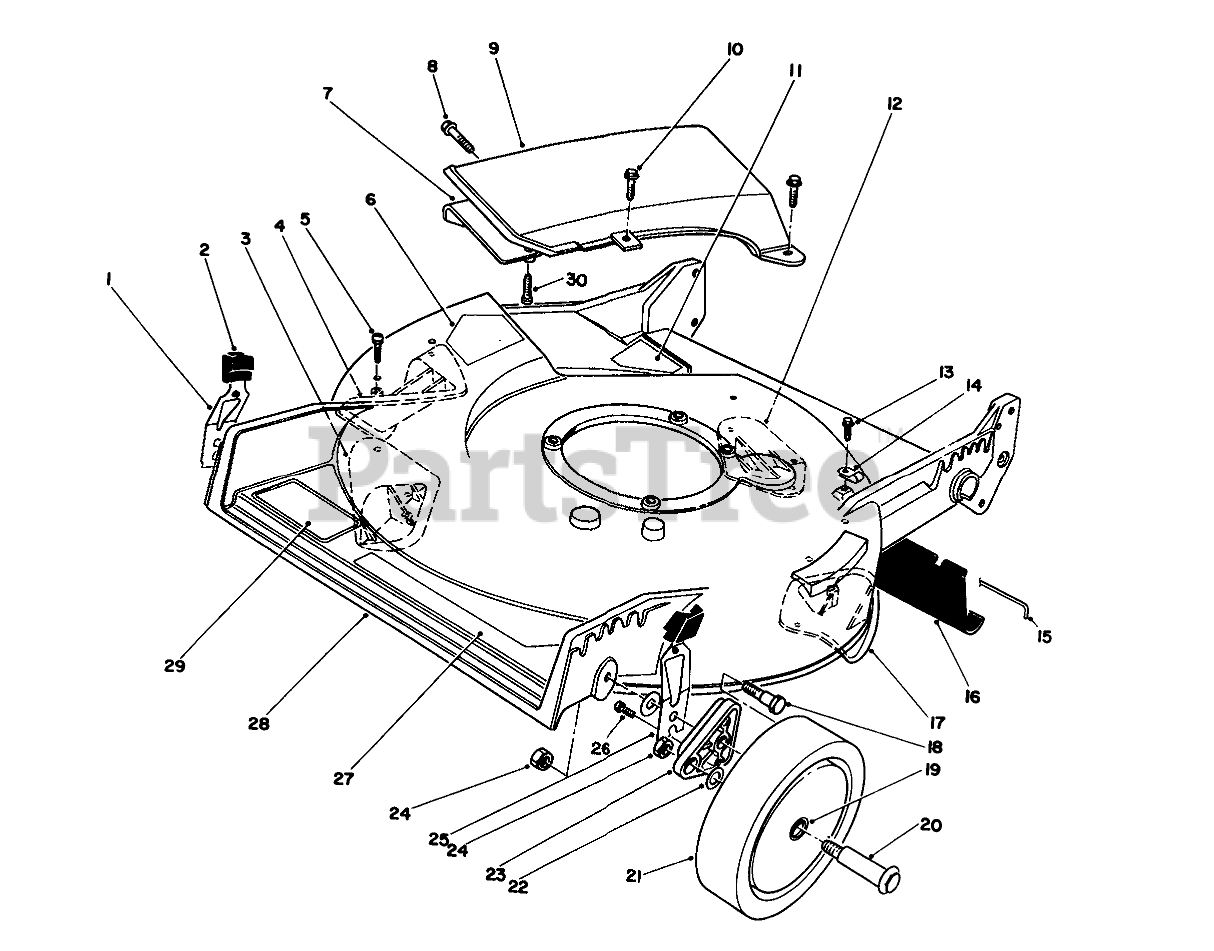

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

2

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

3

Toro 76-2120

KICKER

$29.99

$

In Stock, only 1 left!

0

4

Toro 76-2130

KICKER

$29.99

$

Usually ships in 3-6 days

0

5

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Deflector-Recycler

$

$

Not available

8

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

9

Toro 14-4069

Cover Assembly (Incl. Ref #7 & 19)
(Superseded to 17-5179)

$

$

Not available

10

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

11

Toro 82-8450

DECAL - DANGER

$

$

Not available

12

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

13

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 2412-93

CLAMP-R

$1.49

$

Usually ships in 3-6 days

0

15

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

17

Toro 76-2140

KICKER

$29.99

$

Usually ships in 3-6 days

0

18

Toro 66-0561

SCREW-SHOULDER

$5.99

$

In Stock, only 2 left!

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

20

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

21

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #19)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

22

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

23

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

24

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

25

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

26

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

27

Toro 76-1950

DECAL - DECK

$19.99

$

Usually ships in 3-6 days

0

28

Toro 14-3499

Housing Assembly (Incl. Ref. #3-6, 12, & 17)
(Superseded to 16-1579)

$1078.99

$

Usually ships in 3-6 days

0

29

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0

30

Screw-Pan Hd.

$

$

Not available
