20217 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

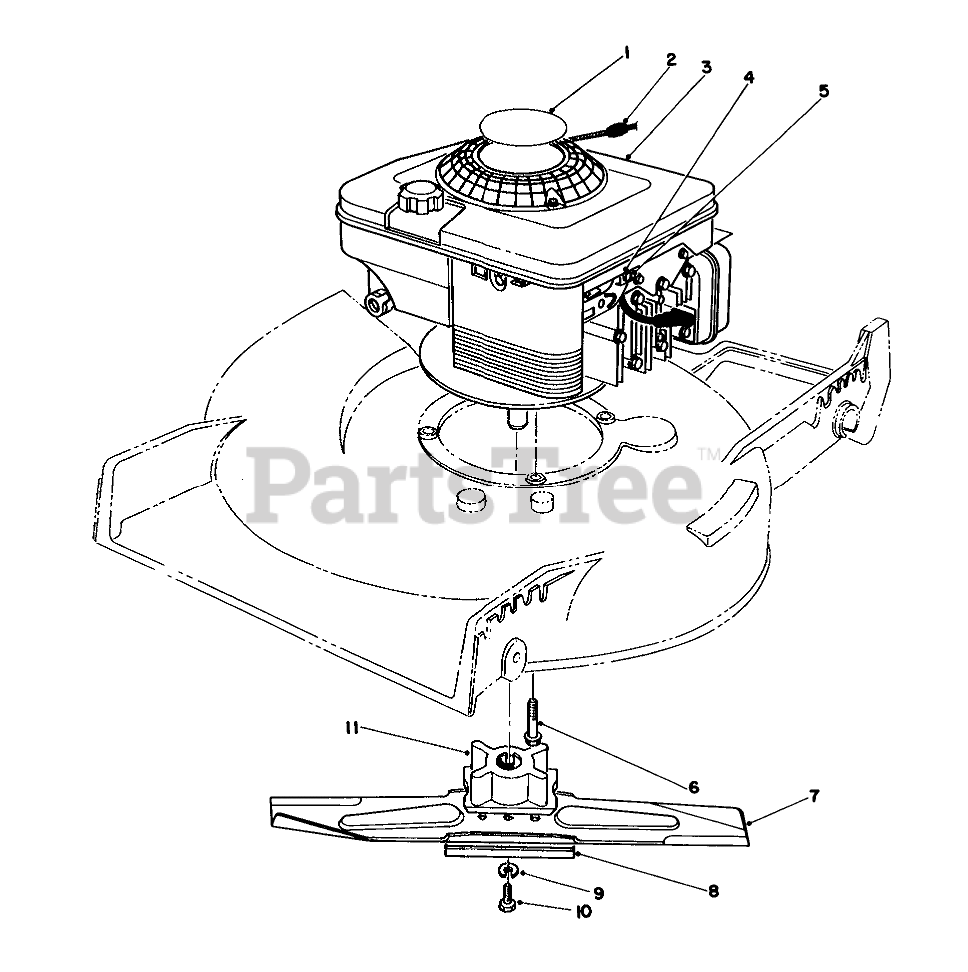

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 75-9400

DECAL - ENGINE

$

$

Not available

2

Toro 2210-316

STOP-ROPE

Note: Provided with Engine

$7.99

$

Usually ships in 3-6 days

0

3

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

4

Toro 2210-249

CLAMP-CASING

Note: Provided with Engine

$3.49

$

Usually ships in 3-6 days

0

5

Toro 2210-313

Screw
(Superseded to 86-7990)

Note: Provided with Engine

$3.49

$

Usually ships in 3-6 days

0

6

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

7

Toro 14-1659

Blade-21" (Incl. Ref. #8)
(Superseded to 91-2256-03)

$36.99

$

In Stock, Qty 8

0

8

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 26-0670

SCREW-BLADE

$

$

Not available

11

Toro 62-7540

BLADE RETAINER

$98.99

$

In Stock, only 1 left!

0
