20214 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE BRIGGS & STRATTON MODEL 124702-3115-01 Parts Diagram

Walk-Behind Mower

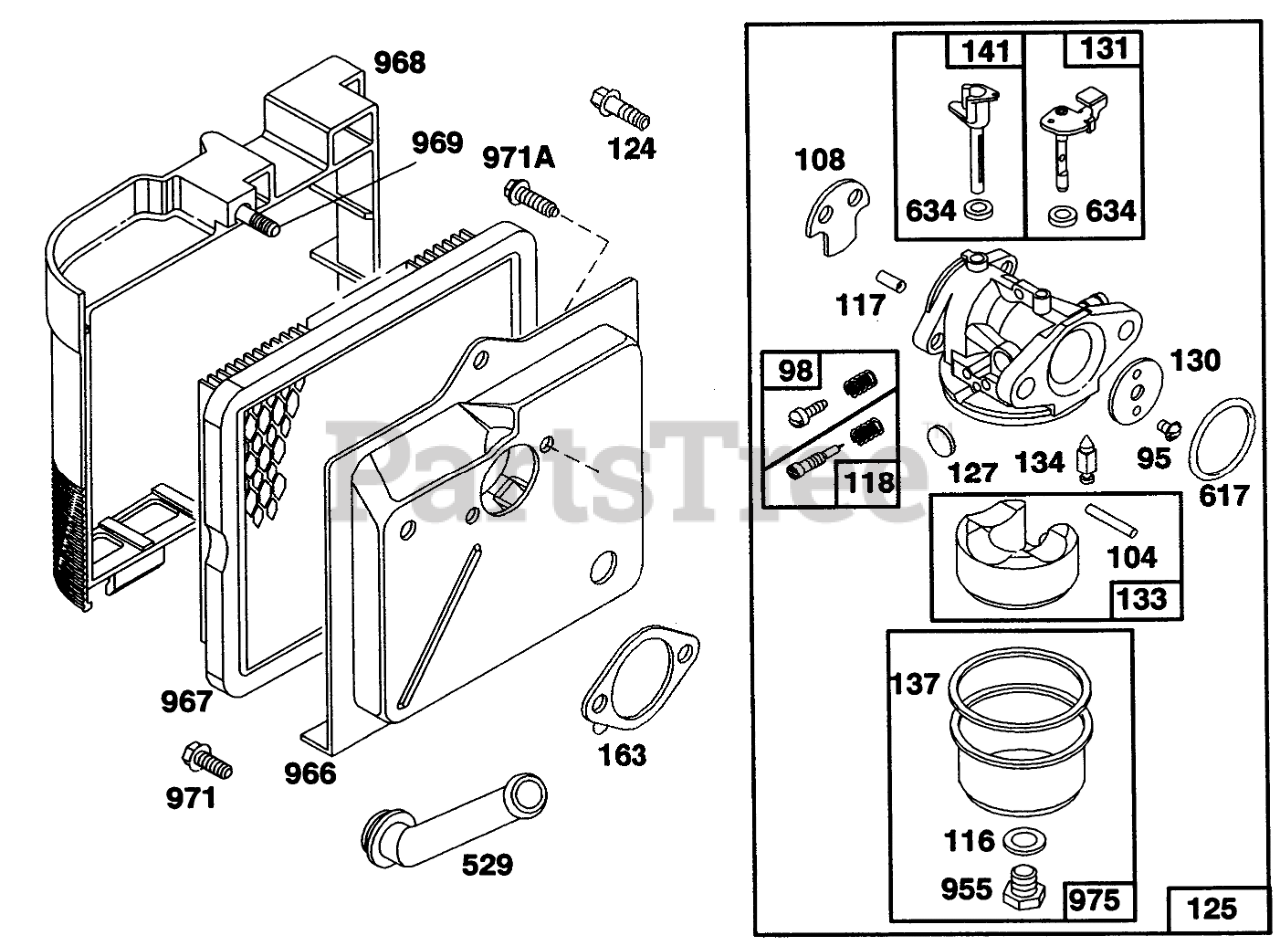

ENGINE BRIGGS & STRATTON MODEL 124702-3115-01 Parts Diagram

  • Title

95

Screw-Throttle Valve Mounting Sem

$

$

Not available

98

Briggs & Stratton 398185

Idle Speed Kit

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 223471

Valve-Choke
(Superseded to 691182)

$9.49

$

Usually ships in 2-12 days

0

116

Gasket-Sealing(Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

116

Gasket-Sealing(Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

117

Jet(Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

118

Briggs & Stratton 493765

Valve-Needle

$14.99

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 94525

Screw-Hex
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 494217

Carburetor

$

$

Not available

127

Plug-Welch(Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

130

Briggs & Stratton 223470

Valve-Throttle
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Shaft and Lever

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Valve-Inlet(Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl(Sold in Kit Only).

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

137

Gasket-Bowl(Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

141

Briggs & Stratton 494218

Shaft-Choke

$14.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 272296

Gasket-Air Cleaner

Note: Included on Gasket Set-Part No. 493263.

$4.99

$

In Stock, only 1 left!

0

529

Briggs & Stratton 280943

Grommet-Breather

$8.49

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft(Sold in Kit Only)

Note: Included in Carburetor Overhaul Kit-Part No. 493762.

$

$

Not available

634

Washer-Shaft(Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

955

Briggs & Stratton 493869

Screw-Bowl Mtg.

$19.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 492363

Base-Air Cleaner

$

$

Not available

967

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 280937

Cover-Air Cleaner
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94120

Screw-Cover Mt.
(Superseded to 690670)

$5.99

$

In Stock, only 4 left!

0

971

Briggs & Stratton 94269

Screw-Air Cleaner
(Superseded to 692779)

$3.99

$

Usually ships in 2-12 days

0

971A

Briggs & Stratton 94121

Screw-Air Cleaner
(Superseded to 692523)

$7.49

$

In Stock, only 2 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available
