20210 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

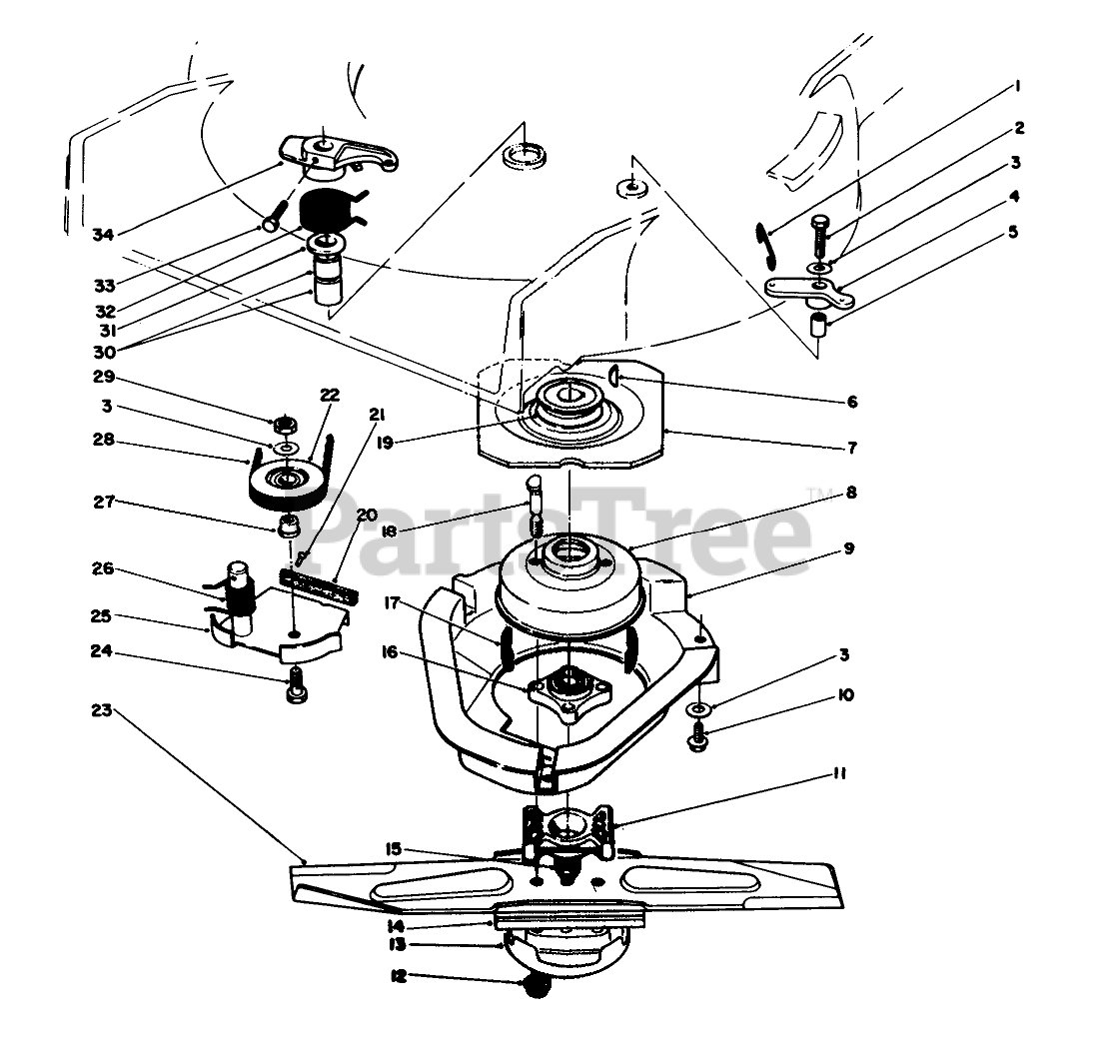

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 49-2810

LINK-CONTROL

$2.99

$

In Stock, only 1 left!

0

2

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 49-7960

BELLCRANK

$11.99

$

In Stock, only 1 left!

0

5

Toro 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

6

Toro 3257-17

KEY-WOODRUFF

$

$

Not available

7

Toro 56-6160

Flywheel
(Superseded to 56-6160-03)

$108.99

$

In Stock, only 2 left!

0

8

Toro 56-6170

Drum-Brake
(Superseded to 94-9431)

$46.99

$

In Stock, Qty 11

0

9

Toro 46-5690

SHIELD BBC

$64.99

$

In Stock, Qty 5

0

10

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 62-4280

SPACER-BLADE
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

12

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

13

Toro 80-2770

CUP-SCALP, ANTI

$16.99

$

Usually ships in 3-6 days

0

14

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0

15

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

16

Toro 42-6890

HUB ASM

$95.99

$

Usually ships in 3-6 days

0

17

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 10

0

18

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

19

Toro 62-7560

PULLEY

$46.99

$

In Stock, only 1 left!

0

20

Pad-Brake

$

$

Not available

21

Toro 3295-23

.185 DIA X .375 RT +

$11.99

$

Usually ships in 3-6 days

0

22

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

23

Toro 14-1659

Blade-21" (Incl. Ref. #14)
(Superseded to 91-2256-03)

$36.99

$

In Stock, only 1 left!

0

24

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

25

Toro 49-7920

Brake Plate (Incl. Ref. #20 & 21)
(Superseded to 94-1601)

$

$

Not available

26

Toro 46-5670

SPRING-TORSION

$11.99

$

Usually ships in 3-6 days

0

27

Toro 46-5630

HUB-PULLEY, IDLER

$19.99

$

In Stock, only 1 left!

0

28

Toro 42-0884

V-BELT

$19.99

$

In Stock, Qty 5

0

29

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

30

Toro 68-9780

BEARING

$25.99

$

Usually ships in 3-6 days

0

31

Toro 70-1160

WASHER

$5.49

$

Usually ships in 3-6 days

0

32

Toro 49-7970

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

33

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

34

Toro 49-2820

LEVER

$11.99

$

In Stock, only 1 left!

0
