20210 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) ENGINE GTS-150 77-8990 Parts Diagram

Walk-Behind Mower

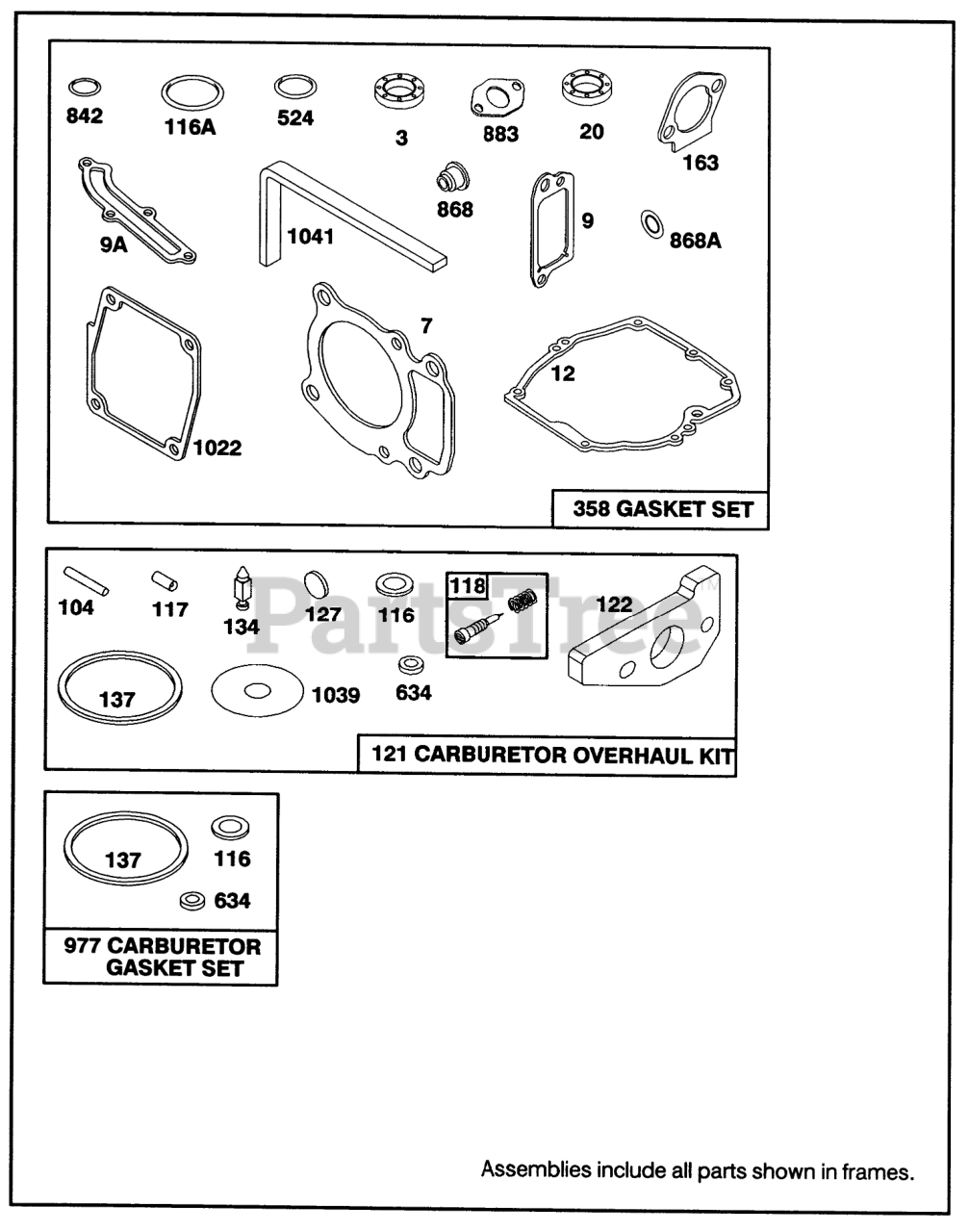

ENGINE GTS-150 77-8990 Parts Diagram

  • Title

3

Toro 77-9060

SEAL - OIL

$

$

Not available

7

Toro 77-7740

CYLINDER HEAD GASKET

$29.99

$

In Stock, only 1 left!

0

9

Toro 77-7440

Gasket-Breather
(Superseded to 99-0913)

$4.49

$

Usually ships in 3-6 days

0

9A

Toro 77-7410

GASKET-BREATHER
(Superseded to 99-0923)

$12.99

$

Usually ships in 3-6 days

0

12

Toro 77-7550

ENGINE BASE GASKET

$23.99

$

Usually ships in 3-6 days

0

20

Toro 77-7570

SEAL-OIL

$23.99

$

In Stock, only 2 left!

0

104

Toro 77-8180

FLOAT HINGE PIN

$

$

Not available

116

Toro 77-8210

SEALING GASKET

$6.99

$

In Stock, Qty 20+

0

116A

Toro 77-7660

O RING SEAL

$13.99

$

Usually ships in 3-6 days

0

117

Toro 77-8060

JET

$

$

Not available

118

Toro 77-8230

VALVE KIT - NEEDLE

$19.99

$

Usually ships in 3-6 days

0

121

Toro 77-8920

CARBURATOR OVERHAUL KIT

$64.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

$31.99

$

Usually ships in 3-6 days

0

127

Toro 77-8100

PLUG

$2.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Float (Includes Seat)

$23.99

$

Usually ships in 3-6 days

0

137

Toro 77-8200

FLOAT BOWL GASKET

$8.49

$

In Stock, only 3 left!

0

163

Toro 77-7960

AIR CLEANER GASKET

$21.99

$

Usually ships in 3-6 days

0

358

Toro 77-8900

GASKET SET

$

$

Not available

524

Toro 77-7270

O-RING

$10.99

$

Usually ships in 3-6 days

0

634

Toro 77-8150

SEAL WASHER

$

$

Not available

842

Toro 77-7300

O-RING

$4.99

$

In Stock, Qty 20+

0

868

Toro 77-7890

SealAssy-Valve
(Superseded to 94-1669)

$

$

Not available

868A

Toro 77-7900

Seal-Valve
(Superseded to 94-1669)

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

$

$

Not available

977

Toro 77-8930

CARBURATOR GASKET SET

$10.99

$

Usually ships in 3-6 days

0

1022

Toro 77-7320

ROCKER COVER GASKET

$20.99

$

In Stock, only 2 left!

0

1039

Toro 77-7250

FLOAT LIMITER

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

$

$

Not available

Toro 77-9020

Short Block

$

$

Not available

Toro 77-8990

GTS150 Key/BBC Engine
(Superseded to 77-8991)

$1478.99

$

Usually ships in 3-6 days

0

Toro 77-9000

HIGH ALTITUDE JET

$

$

Not available
