202010x18A - Murray 20" Walk-Behind Mower (2003) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

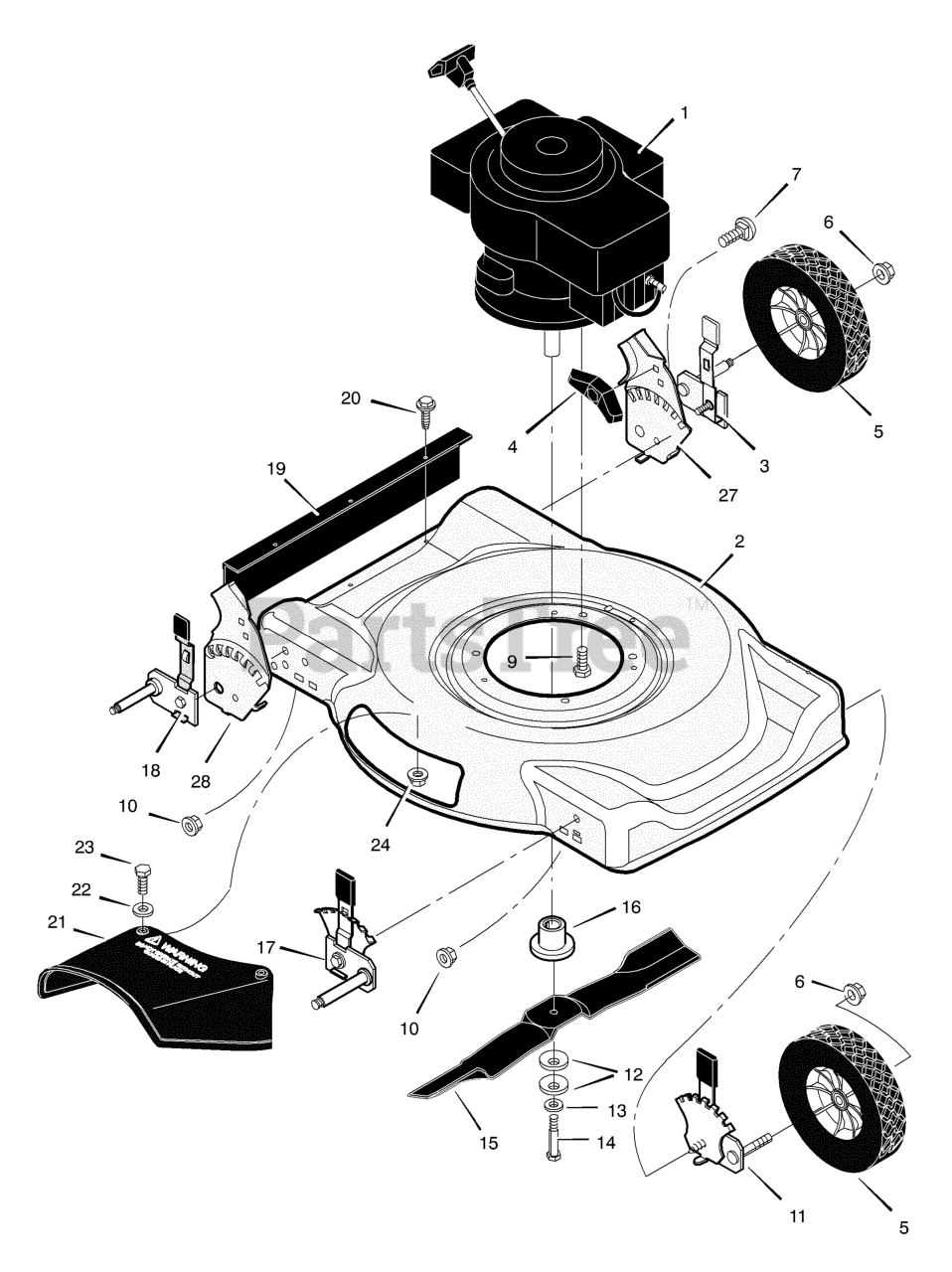

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 7501015

Housing

$

$

Currently unavailable

3

Murray 1101565MA

Height Adjuster, Left Rear

$18.99

$

Usually ships in 2-12 days

0

4

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

5

Murray 020270MA

Wheel and Tire (White)
(Superseded to 336546MA)

$

$

Not available

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 1101563MA

Height Adjuster, Left Front

$18.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

15

Murray 042785E701MA

Blade, Side Discharge

$23.99

$

Usually ships in 2-12 days

0

16

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 1101562MA

Height Adjuster, Right Front

$20.99

$

Usually ships in 2-12 days

0

18

Murray 1101564MA

Height Adjuster, Right Rear

$16.99

$

Usually ships in 2-12 days

0

19

Murray 1101675

Guard, Rear

Note: (Included with Ref. No. 1)

$7.49

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

Note: (Included with Ref. No. 1)

$4.49

$

In Stock, Qty 6

0

21

Murray 671929MA

Deflector, Chute

$27.99

$

Usually ships in 2-12 days

0

22

Murray 017X37MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

23

Murray 01X121

Bolt, Hex

$

$

Not available

24

Murray 15X116MA

Nut, NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

27

Murray 1101303E700

Bracket, Left Handle

$

$

Currently unavailable

28

Murray 1101302E700

Bracket, Right Handle

$

$

Currently unavailable

--

Murray 48X405MA

Warning, 20/22 OPEI '98

$56.99

$

Usually ships in 2-12 days

0

--

Murray 48X6458

Cut Finger

$

$

Currently unavailable

--

Murray 44X7329MA

Warning, Install Chute

$8.99

$

Usually ships in 2-12 days

0

--

Murray F-030443L

Book, Instruction

$

$

Currently unavailable
