2020 (1692343) - Simplicity Chipper Shredder Hopper & Housing Group Parts Diagram

Chipper Shredder

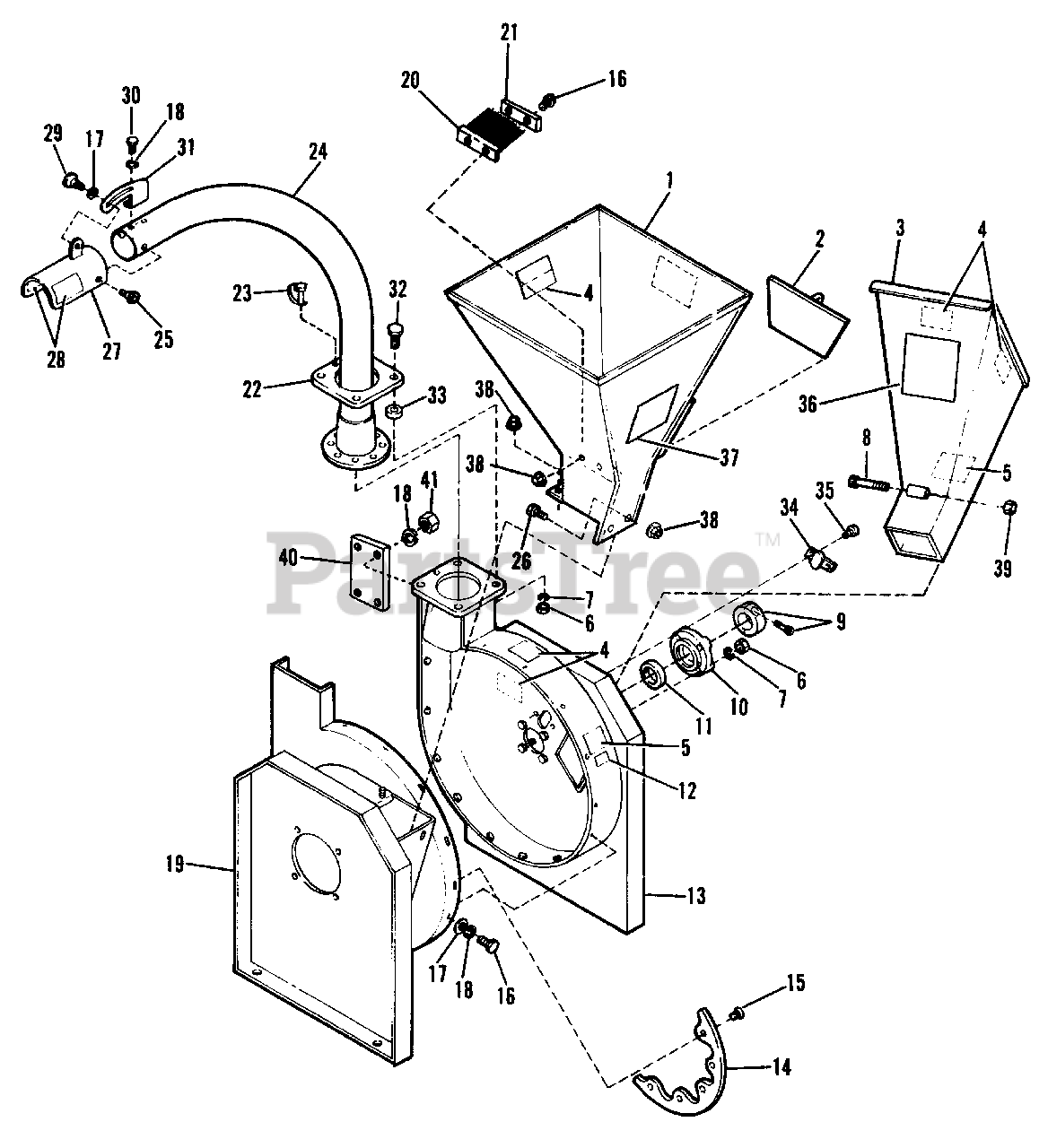

Hopper & Housing Group Parts Diagram

  • Title

1

Simplicity 1713345SM

HOPPER, Shredder

$

$

Not available

2

Simplicity 1713363

COVER PLATE, Vacuum

$

$

Not available

3

Simplicity 1069020

HOPPER, Chipper

$

$

Not available

4

Simplicity 1729207SM

DECAL, Danger, Rotating Cutters

$17.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709554SM

DECAL, Caution

$13.99

$

Usually ships in 2-12 days

0

6

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

Usually ships in 2-12 days

0

7

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

8

Simplicity 1729234SM

CAPSCREW, Socket Hd., 3/8-16 x 4-1/2

$5.49

$

Usually ships in 2-12 days

0

9

Simplicity 1729109SM

COLLAR, Lock

$51.99

$

Usually ships in 2-12 days

0

10

Simplicity 1729108SM

BEARING, w/Race Lock & Set Screws

$433.99

$

Usually ships in 2-12 days

0

11

Simplicity 1729209SM

SPACER, Bearing

$37.99

$

Usually ships in 2-12 days

0

12

PLATE, Serial No.

$

$

Not available

13

Simplicity 1713070SM

CHIPPER HOUSING, Cone Side

$

$

Not available

14

Simplicity 1713074

DEFLECTOR, 20 HP

$

$

Not available

15

Simplicity 1960492

SCREW, Flat Hd., 5/16-18 x 5/8 (Apply Loctite)

$

$

Not available

16

Simplicity 1921332SM

CAPSCREW, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

17

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 9

0

18

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1713069SM

CHIPPER HOUSING, Drive Side

$

$

Not available

20

Simplicity 1713674SM

GUARD, Hopper

$49.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713673SM

STRAP

$13.99

$

Usually ships in 2-12 days

0

22

Simplicity 1713328SM

CLAMP, Discharge

$

$

Not available

23

Simplicity 1729222SM

PIN, Lock

$

$

Not available

24

Simplicity 1729192SM

DISCHARGE TUBE

$

$

Not available

25

Simplicity 1729237SM

BOLT, Shoulder, Socket Hd., 5/16-18 x 1/2

$5.49

$

Usually ships in 2-12 days

0

26

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

27

Simplicity 1729199SM

DEFLECTOR, Discharge Tube

$

$

Not available

28

Simplicity 1729206SM

DECAL, Warning

$

$

Not available

29

Simplicity 2108848

WING NUT, 516-18

$

$

Not available

30

Simplicity 1920787SM

CAPSCREW, 5/16-18 x 1/2
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 1729198SM

BRACKET, Deflector Adjusting

$

$

Not available

32

Simplicity 1921969SM

CAPSCREW, 3/8-16 x 1-1/2
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

33

Simplicity 2157284SM

SPACER, Discharge Tube

$8.49

$

Usually ships in 2-12 days

0

34

Simplicity 1709577

PLATE, Access

$

$

Not available

35

Simplicity 1930601SM

TAPTITE SCREW, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

36

Simplicity 1709554SM

DECAL, Chipper Warning

$13.99

$

Usually ships in 2-12 days

0

37

Simplicity 1709555SM

DECAL, Shredder Warning

$24.99

$

Usually ships in 2-12 days

0

38

Simplicity 1931277SM

NUT, Hex, Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

39

Simplicity 1930645SM

NUT, Hex, Flange, Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

40

Simplicity 1709989SM

DOOR, Clear-out

$

$

Not available

41

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
