2020 (1692207) - Simplicity Chipper Shredder Engine Group - Models 2020 & 2424 Parts Diagram

Chipper Shredder

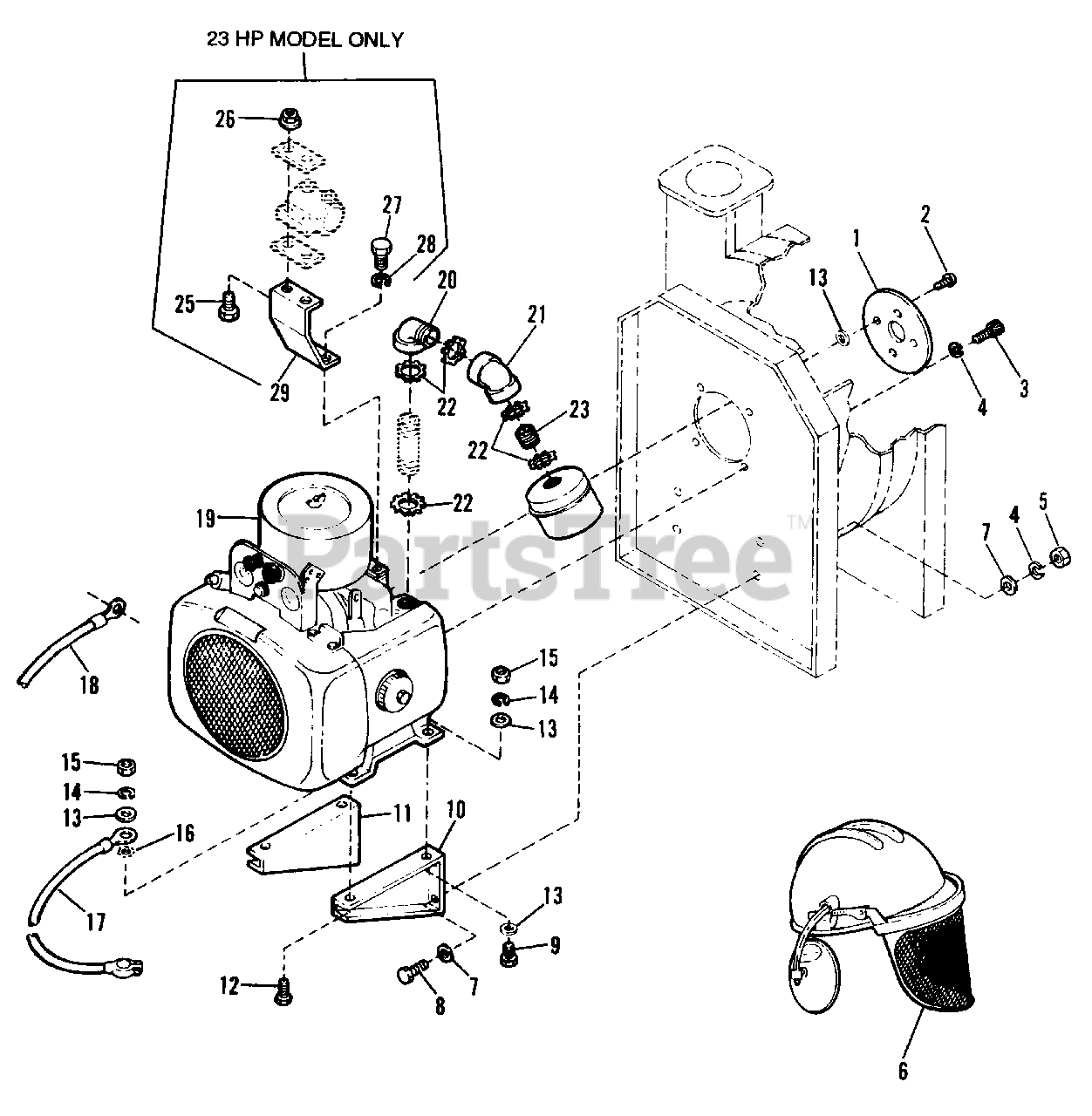

Engine Group - Models 2020 & 2424 Parts Diagram

  • Title

1

Simplicity 1729204SM

GUARD, Seal (23 HP)

$36.99

$

Usually ships in 2-12 days

0

1

Simplicity 3698320

GUARD, Seal (20 HP)

$

$

Not available

2

Simplicity 1729216SM

SCREW, Button Hd. (Qty. 2 on 23 HP model)

$3.49

$

Usually ships in 2-12 days

0

3

Simplicity 1920676SM

CAPSCREW, Hex Hd., 7/16-14 x 1

$5.49

$

In Stock, Qty 12

0

4

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 1918213SM

NUT, Hex, 7/16-14

$4.99

$

In Stock, only 2 left!

0

6

Simplicity 2005020

HARDHAT, Logger's

$

$

Not available

7

Simplicity 1925125SM

WASHER, 7/16

$6.49

$

In Stock, only 2 left!

0

8

Simplicity 1920677SM

CAPSCREW, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1920415SM

CAPSCREW, 3/8-16 x 1-1/4 (20 HP model)
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

10

Simplicity 2307820

BRACKET, Engine Mounting, R.H.

$

$

Not available

11

Simplicity 2307920

BRACKET, Engine Mourning, L H.

$

$

Not available

12

Simplicity 1921969SM

CAPSCREW, 3/8-16 x 1-1/2 (Qty. 4 on 23 HP model)
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

13

Simplicity 1924940SM

WASHER, 3/8 (Qty.10 on 23 HP model)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

15

Simplicity 1916950SM

NUT, Hex, 3/8-16 (Qty. 4 on 23 HP model)
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 2820427SM

LOCKWASHER, E x ternal Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1729248SM

CABLE, Battery, 30", Black

$

$

Not available

18

Simplicity 1729246SM

CABLE, Battery, 17", Red (20 HP Negative)

$

$

Not available

18

Simplicity 1729250SM

CABLE, Battery, 41", Red (23 HP Negative)

$

$

Not available

19

ENGINE, Kohler

$

$

Not available

20

Simplicity 7025020SM

ELBOW, Street 1", 90ø

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 7027020

ELBOW, 1", 45ø

$

$

Not available

22

Simplicity 2154378SM

LOCKNUT, Conduit, 1" (Qty. 10 on 23 HP model)

$6.99

$

Usually ships in 2-12 days

0

23

Simplicity 7026020SM

NIPPLE, 1 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1922837SM

CAPSCREW, 1/4-20 x 1-1/2
(Superseded to 703234)

Note: 23 HP Model Only

$4.49

$

In Stock, only 4 left!

0

26

Simplicity 1960294SM

NUT, Flange, 1/4-20
(Superseded to 703233)

Note: 23 HP Model Only

$4.49

$

In Stock, Qty 6

0

27

Simplicity 1921958SM

CAPSCREW, 1/4-20 x 1/2

Note: 23 HP Model Only

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

Note: 23 HP Model Only

$3.99

$

In Stock, Qty 11

0

29

Simplicity 8005024

BRACKET, Standoff

Note: 23 HP Model Only

$

$

Not available
