20199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 314200001 - 314999999) (2014) TRANSMISSION, REAR WHEEL AND HEIGHT-OF-CUT ASSEEMBLY Parts Diagram

30" TimeMaster Walk-Behind Mower

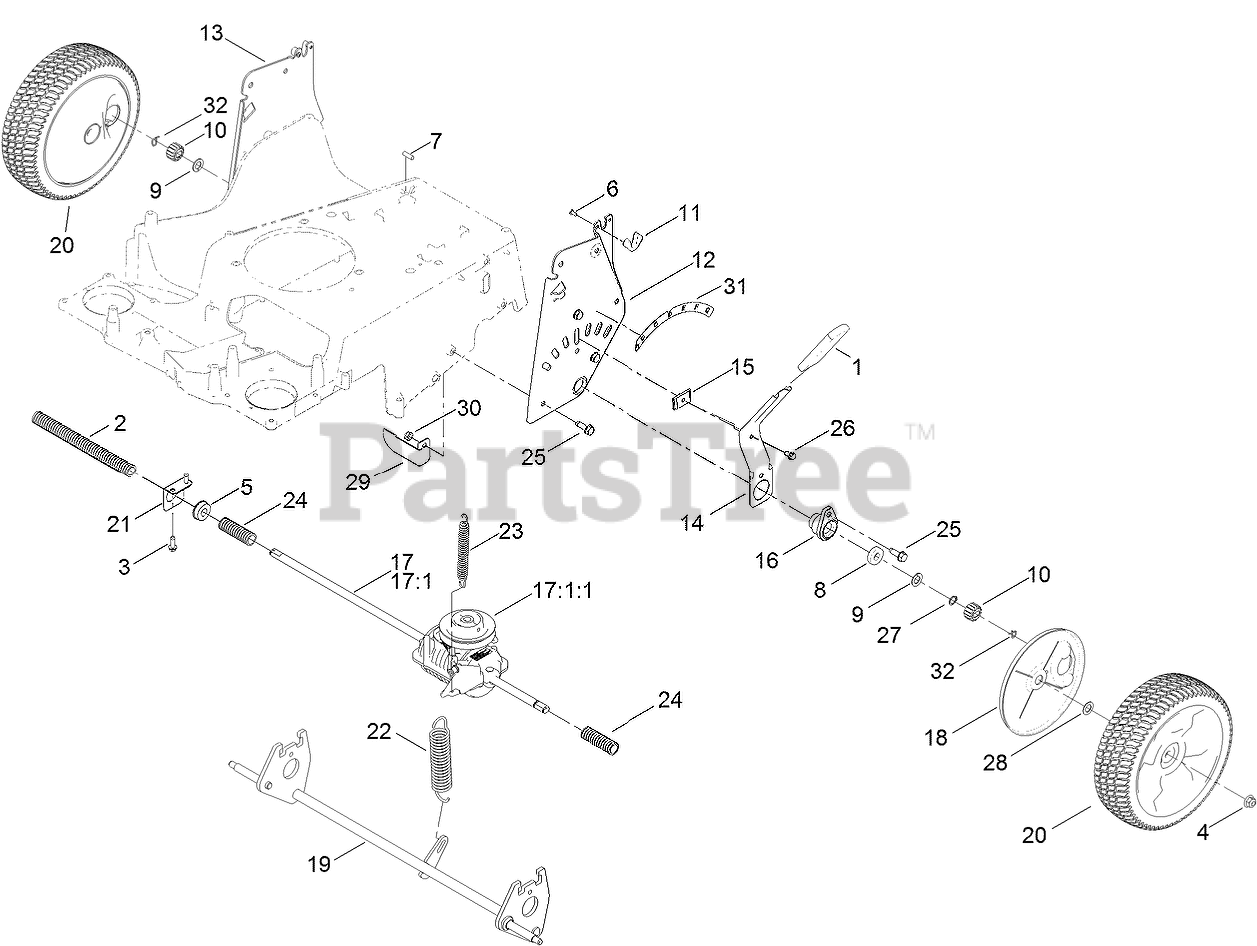

TRANSMISSION, REAR WHEEL AND HEIGHT-OF-CUT ASSEEMBLY Parts Diagram

  • Title
1

Toro 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

2

Toro 121-5799

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 20+

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 18

0

6

Toro 105-9437

Screw-PPH

$0.99

$

In Stock, Qty 8

0

7

Toro 106-5681

PIN-STOP

$3.49

$

In Stock, only 4 left!

0

8

Toro 109-8020

BEARING-BALL
(Superseded to 52-2450)

$18.99

$

In Stock, Qty 20+

0

9

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

10

Toro 110-9417

GEAR-PINION, 15T
(Superseded to 131-5399)

$5.49

$

In Stock, Qty 20+

0

11

Toro 115-8406

ANCHOR-BAG

$3.99

$

In Stock, only 2 left!

0

12

Toro 120-3342-03

PLATE-HOC, LH

$28.99

$

In Stock, only 1 left!

0

13

Toro 120-3343-03

PLATE-HOC, RH

$28.99

$

Usually ships in 3-6 days

0

14

Toro 120-5208

ARM-SPRING, REAR

$17.99

$

In Stock, Qty 15

0

15

Toro 120-5209

KEY-SPRINGARM

$3.99

$

In Stock, Qty 15

0

16

Toro 120-5210

RETAINER-BEARING
(Superseded to 131-5364)

$14.99

$

In Stock, only 3 left!

0

17

Toro 130-6670

TRANSMISSION KIT
(Superseded to 131-9665)

$182.99

$

In Stock, Qty 7

0

17:1

TRANSMISSION-MV502

Note: Not serviced separately

$

$

Not available

17:1:1

Toro 130-2370

TRANSMISSION PULLEY KIT

$32.99

$

In Stock, only 2 left!

0

18

Toro 120-6233

COVER-GEAR

$12.99

$

In Stock, only 2 left!

0

19

Toro 125-5062

AXLE-REAR
(Superseded to 139-1747)

$88.99

$

Usually ships in 3-6 days

0

20

Toro 125-2509

10 INCH WHEEL GEAR ASM

$72.99

$

In Stock, Qty 7

0

21

Toro 120-7008

MOUNT-BEARING
(Superseded to 138-3233)

$5.49

$

In Stock, only 3 left!

0

22

Toro 120-7026

SPRING-EXTENSION

$13.99

$

In Stock, only 3 left!

0

23

Toro 120-7027

SPRING-EXTENSION

$8.99

$

In Stock, Qty 13

0

24

Toro 121-5800

CONDUIT-CONVOLUTED

$1.49

$

In Stock, Qty 14

0

25

Toro 701243

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

27

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

28

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 7

0

29

Toro 121-5821

BRACKET-STOP
(Superseded to 138-5338)

$6.49

$

In Stock, Qty 8

0

30

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

31

Toro 125-2497

DECAL-HOC, REAR

$4.49

$

Usually ships in 3-6 days

0

32

Toro 130-2369

PIN-SNAP

$1.49

$

In Stock, Qty 20+

0
