20199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 314000001 - 314200000) (2014) DECK AND FRAME ASSEMBLY Parts Diagram

30" TimeMaster Walk-Behind Mower

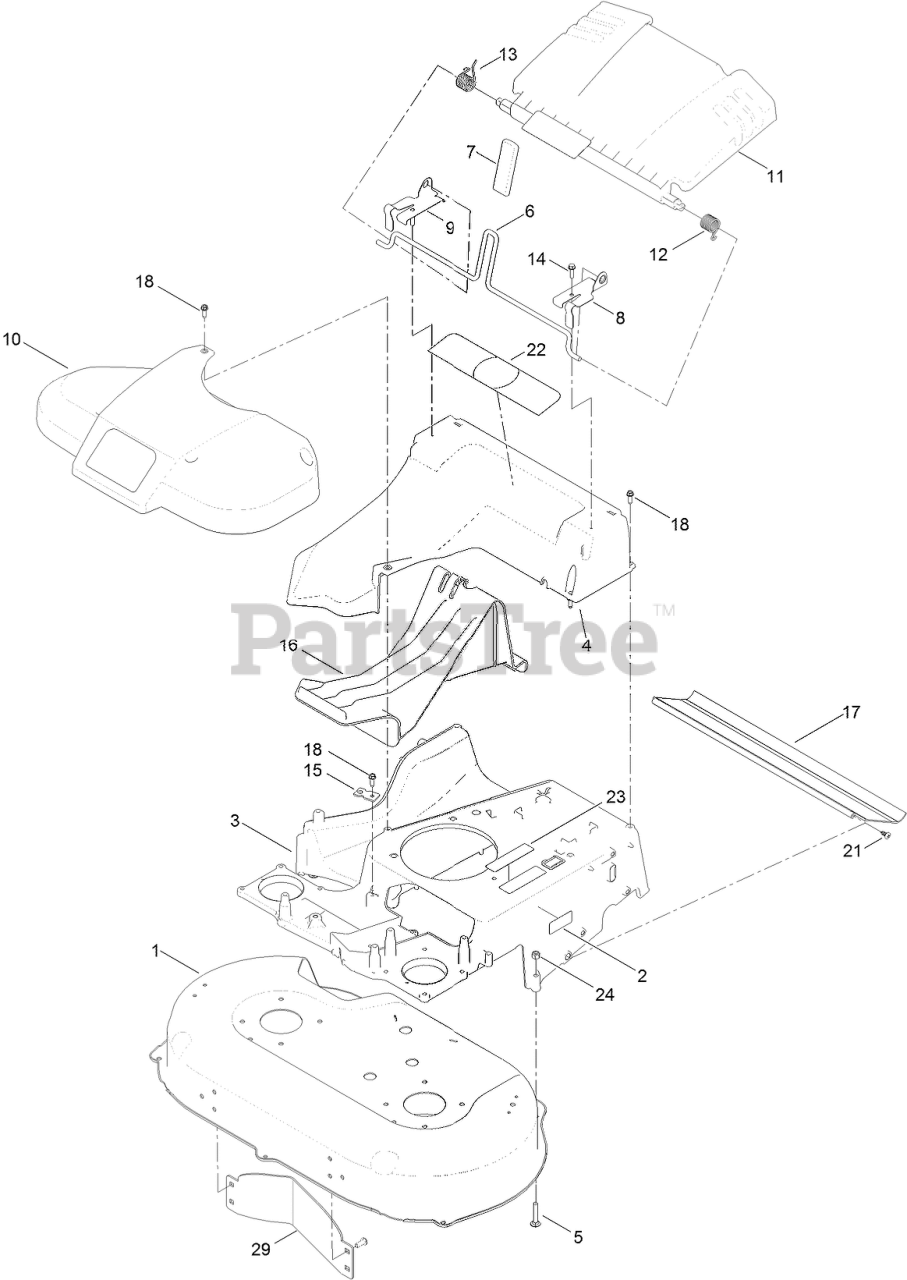

DECK AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 125-5087

HOUSING ASM
(Superseded to 136-5873)

$328.99

$

In Stock, only 1 left!

0

2

Toro 121-5684

DECAL-LOCATION, SERVICE DEALER

$1.49

$

In Stock, only 1 left!

0

3

Toro 121-9198-01

FRAME

$208.99

$

In Stock, only 2 left!

0

4

Toro 120-3336

CHUTE
(Superseded to 133-8177)

$58.99

$

Usually ships in 3-6 days

0

5

Toro 3230-5

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

6

Toro 120-3344

ROD-RELEASE, HANDLE

$33.99

$

Usually ships in 3-6 days

0

7

Toro 120-7018

GRIP-LEVER

$3.99

$

In Stock, only 1 left!

0

8

Toro 121-9114

BRACKET-DOOR, LH

$19.99

$

Usually ships in 3-6 days

0

9

Toro 121-9115

BRACKET-DOOR, RH

$19.99

$

Usually ships in 3-6 days

0

10

Toro 120-7049

BELT COVER ASM
(Superseded to 139-5408)

$53.99

$

In Stock, only 1 left!

0

11

Toro 120-7048

REAR DEFLECTOR ASM

$38.99

$

In Stock, only 1 left!

0

12

Toro 115-2859

SPRING-TORSION

$5.49

$

In Stock, only 1 left!

0

13

Toro 114-7924

SPRING-TORSION

$3.49

$

In Stock, Qty 20+

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

15

Toro 107-7497

BRACKET-CABLE, TRACTION
(Superseded to 138-3224)

$2.99

$

In Stock, Qty 6

0

16

Toro 120-5225

PLUG-MULCH

$29.99

$

In Stock, only 3 left!

0

17

Toro 120-6241

SHIELD-TRAILING

$15.99

$

In Stock, Qty 8

0

18

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

21

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 13

0

22

Toro 121-2398

DECAL-POSITION, HANDLE

$8.99

$

Usually ships in 3-6 days

0

23

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Toro 130-2352-01

BAFFLE-CONTROL

$27.99

$

Usually ships in 3-6 days

0

99

Toro 125-5072

FRAME PLATE KIT

Note: Not illustrated

$45.99

$

Usually ships in 3-6 days

0
