20199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 312017873 - 312999999) (2012) SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

30" TimeMaster Walk-Behind Mower

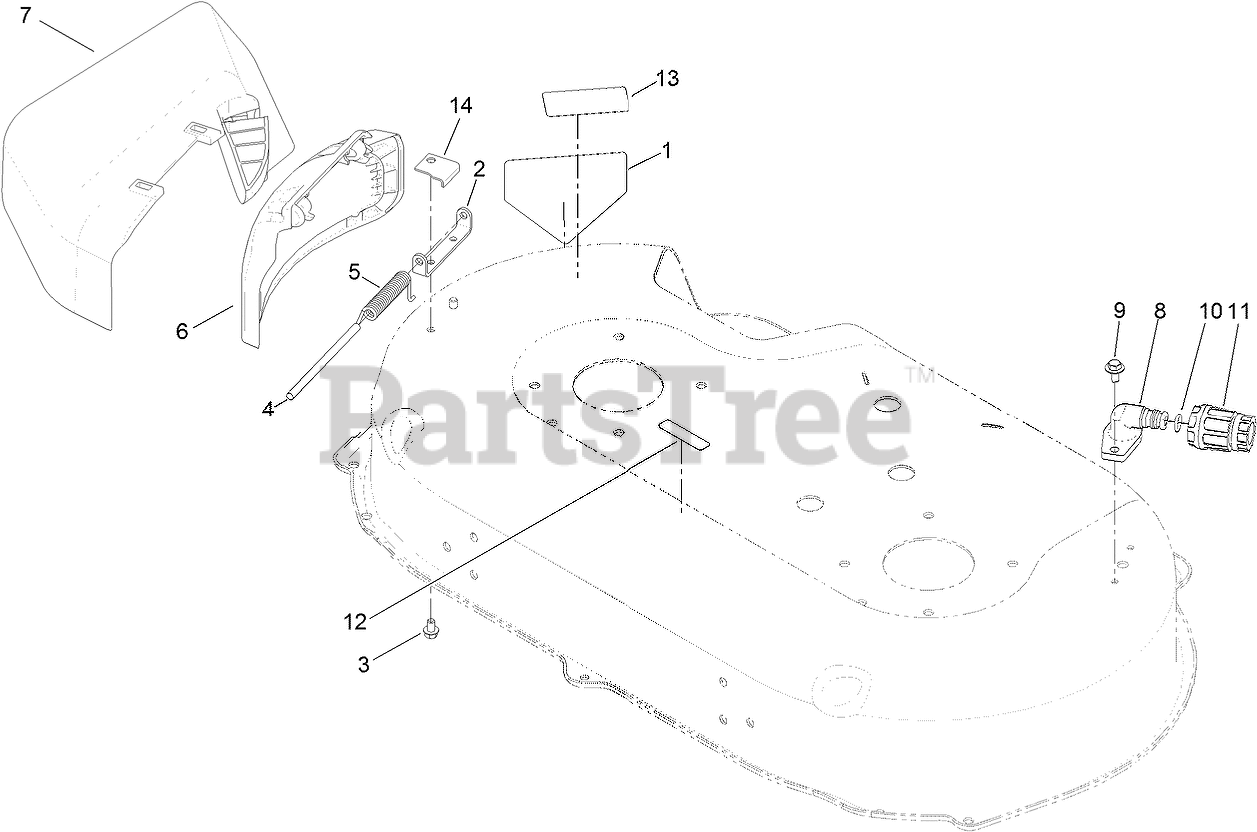

SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

2

Toro 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

3

Toro 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

4

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

5

Toro 121-5843

SPRING-TORSION, COVER

$6.49

$

In Stock, only 1 left!

0

6

Toro 121-9197

DEFLECTOR-SIDE
(Superseded to 125-5091)

$14.99

$

In Stock, only 1 left!

0

7

Toro 121-2319

CHUTE-DISCHARGE, SIDE

$29.99

$

In Stock, only 2 left!

0

8

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

10

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

11

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

12

Toro 120-9570

DECAL-WARNING

$1.49

$

In Stock, only 4 left!

0

13

Toro 108-8117

DECAL-PLACEMENT, FOOT

$6.99

$

Usually ships in 3-6 days

0

14

Toro 121-5842

PLATE-SPRING

$6.99

$

Usually ships in 3-6 days

0
