20194 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FLYWHEEL ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

Super Bagger Walk-Behind Mower

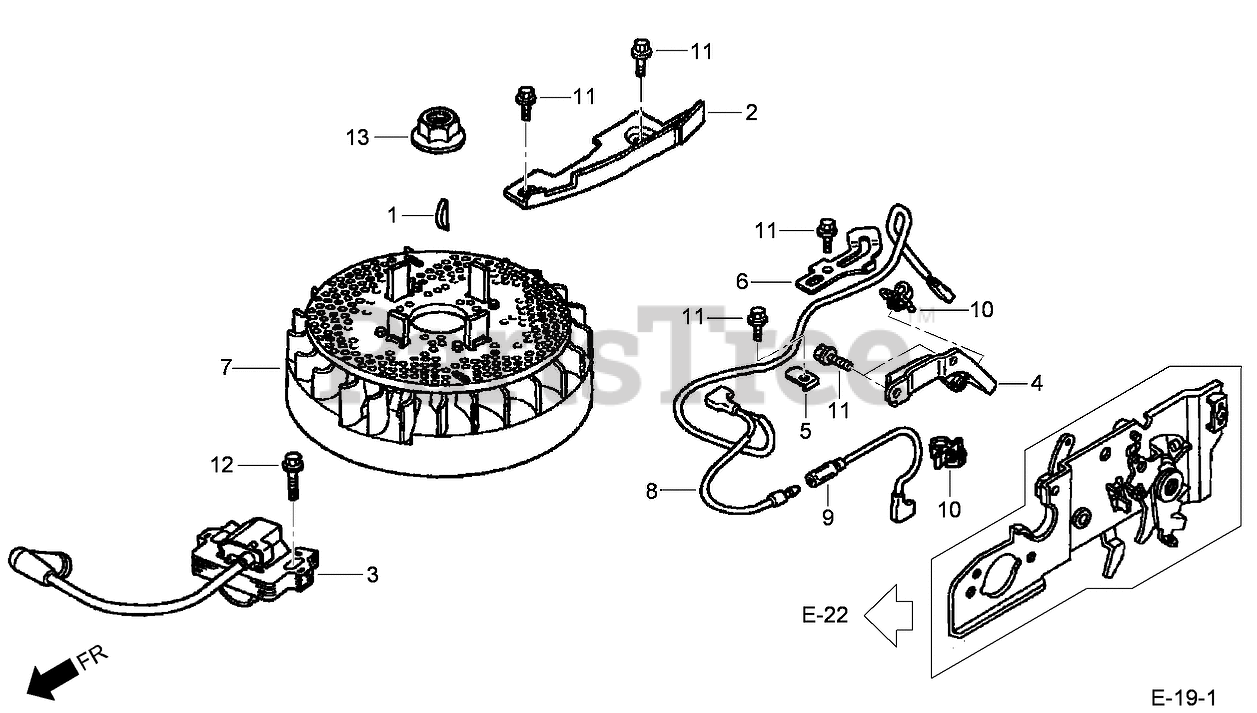

FLYWHEEL ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

  • Title

1

Honda 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, only 4 left!

0

2

Honda 19612-ZM0-J20

PLATE-SIDE (engine serial numbers up to 5008780)

Note: Obtain parts from www.honda-engines.com

$11.99

$

Usually ships in 3-6 days

0

2

Honda 19612-Z0L-000

PLATE-SIDE (engine serial numbers starting at 5008781)

Note: Obtain parts from www.honda-engines.com

$17.99

$

In Stock, only 1 left!

0

3

Honda 30500-Z0J-003

IGNITION COIL ASM (PHELON) (USE FOR FLYWHEEL OF PHELON)
(Superseded to 30500-Z8B-903)

Note: Obtain parts from www.honda-engines.com

$23.99

$

Usually ships in 3-6 days

0

4

Honda 30547-Z0L-S00

CLAMP-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$869.99

$

Usually ships in 3-6 days

0

5

Honda 30548-ZL8-000

CLAMP-WIRE, STOP SWITCH

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

6

Honda 30549-ZL8-000

CLAMP-WIRE

Note: Obtain parts from www.honda-engines.com

$5.99

$

Usually ships in 3-6 days

0

7

Honda 31105-Z0J-010

FLYWHEEL ASM (PHELON) (USE FOR IGNITION COIL OF PHELON)

Note: Obtain parts from www.honda-engines.com

$70.99

$

Usually ships in 3-6 days

0

8

Honda 32195-Z0L-S20

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$6.49

$

Usually ships in 3-6 days

0

9

Honda 32196-Z0L-S20

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

10

Honda 51125-Z0L-003

HOLDER-WIRE (FASTEX)

Note: Obtain parts from www.honda-engines.com

$8.99

$

In Stock, only 1 left!

0

10

Honda 90681-959-003

CLIP A-CABLE (3.8MM BLACK) (NIFCO)

Note: Obtain parts from www.honda-engines.com

$4.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 17

0

12

Honda 90022-888-010

BOLT-FLANGE (6X20) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

13

Honda 90201-878-003

NUT-SPECIAL (14 mm)

Note: Obtain parts from www.honda-engines.com

$7.99

$

In Stock, only 1 left!

0
