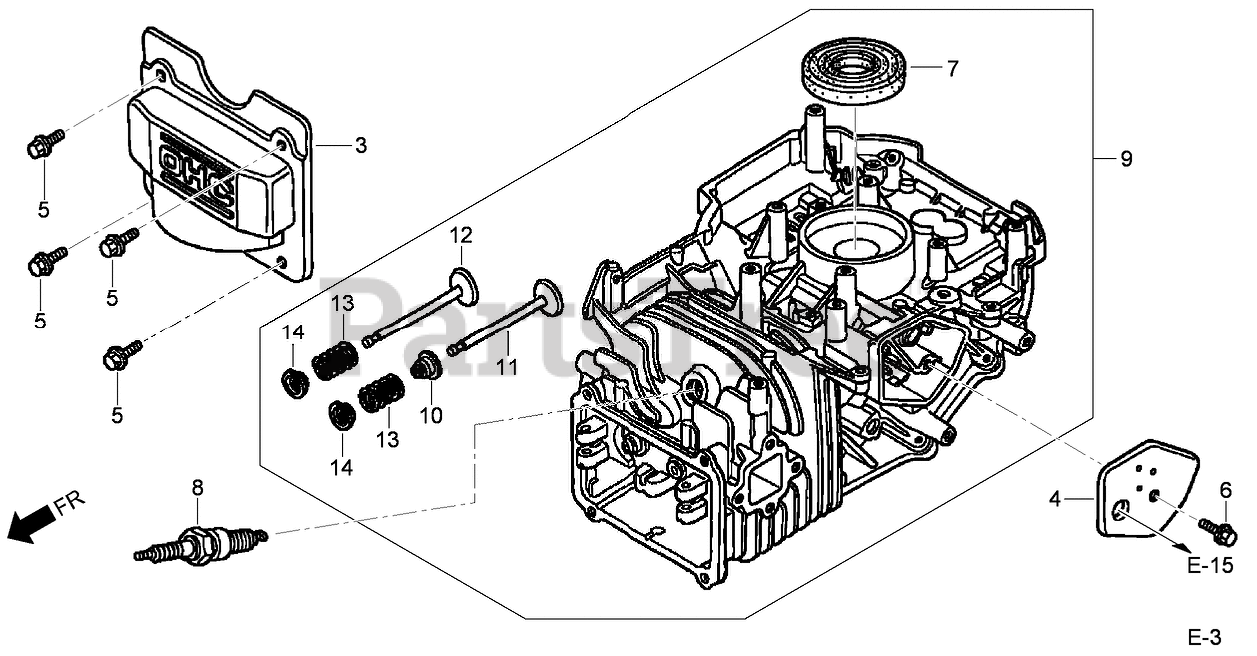

20194 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CYLINDER ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

Super Bagger Walk-Behind Mower

CYLINDER ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

  • Title

3

Honda 12310-Z0J-000

COVER-HEAD, CYLINDER
(Superseded to 12310-Z8A-000)

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 2 left!

0

3

Honda 12311-ZL8-D00

COVER-HEAD
(Superseded to 12310-Z8A-000)

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 2 left!

0

3

Honda 12311-ZL8-000

COVER-HEAD
(Superseded to 12310-Z8A-000)

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 2 left!

0

4

Honda 12355-ZL8-000

COVER-BREATHER (BREATHER VALVE ASM)

Note: Obtain parts from www.honda-engines.com

$9.49

$

Usually ships in 3-6 days

0

5

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, Qty 19

0

6

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 2 left!

0

7

Honda 91201-ZL8-003

SEAL (25.4X62X6)

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, Qty 12

0

8

Honda 98079-56846

SPARK PLUG (B P R 6E S) (N G K)

Note: Obtain parts from www.honda-engines.com

$3.99

$

In Stock, Qty 20+

0

9

Honda 12000-Z0L-840

CYLINDER ASM
(Superseded to 06120-Z0L-305)

Note: Obtain parts from www.honda-engines.com

$109.99

$

Usually ships in 3-6 days

0

10

Honda 12209-ZM0-003

SEAL-STEM, VALVE

Note: Obtain parts from www.honda-engines.com

$9.99

$

In Stock, only 4 left!

0

11

Honda 14711-Z0J-000

VALVE-INTAKE (ROCKNEL) (engine serial numbers up to 6330748)
(Superseded to 14711-ZL8-000)

Note: Obtain parts from www.honda-engines.com

$71.99

$

In Stock, only 3 left!

0

11

Honda 14711-Z0J-800

VALVE-INTAKE (engine serial numbers starting at 6330749)
(Superseded to 14711-ZL8-000)

Note: Obtain parts from www.honda-engines.com

$71.99

$

In Stock, only 3 left!

0

12

Honda 14721-ZL8-000

VALVE-EXHAUST

Note: Obtain parts from www.honda-engines.com

$63.99

$

In Stock, Qty 8

0

13

Honda 14751-ZL8-000

SPRING-VALVE

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 12

0

14

Honda 14771-Z0J-000

RETAINER-SPRING, VALVE

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, Qty 6

0
