20194 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CONTROL ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

Super Bagger Walk-Behind Mower

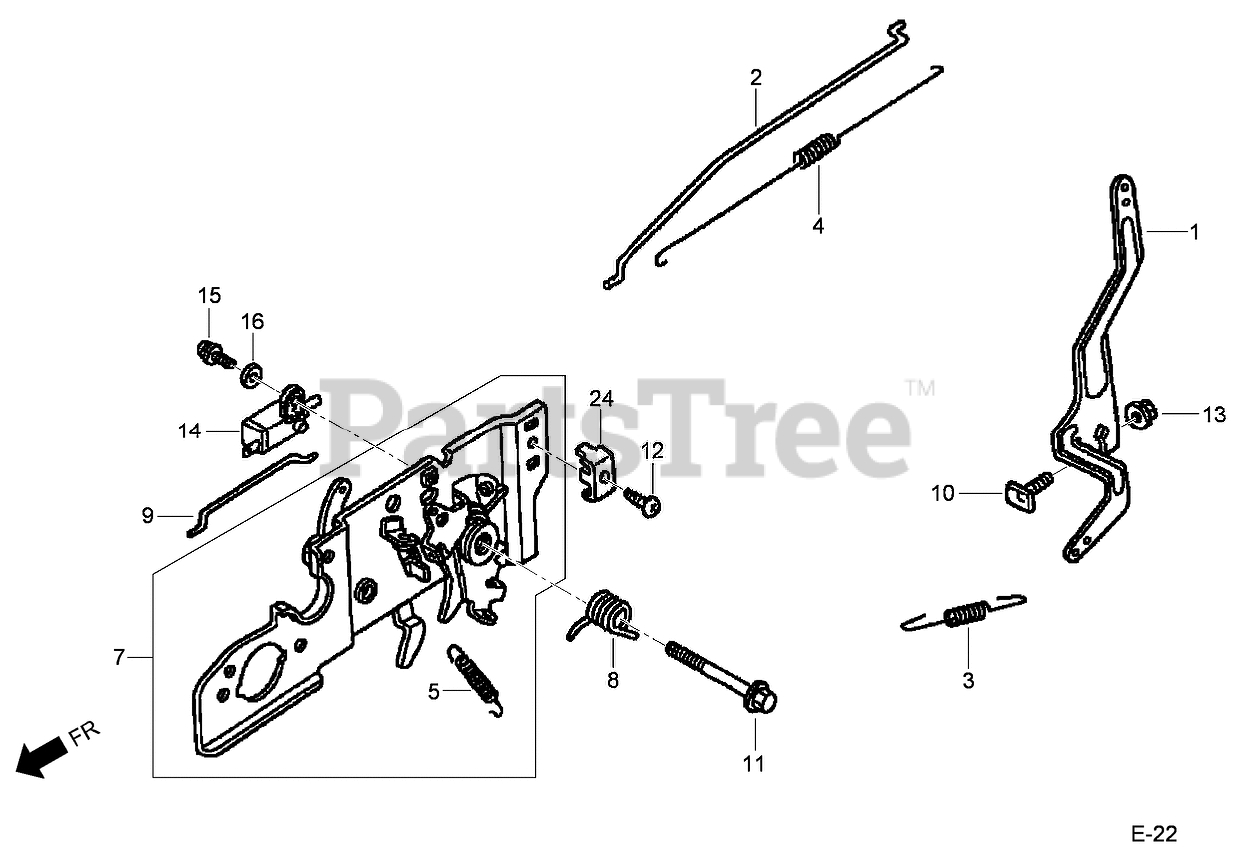

CONTROL ASSEMBLY HONDA GCV160A NBL1 Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16555-Z0L-800

ROD-GOVERNOR (engine serial numbers up to 6349022)
(Superseded to 16555-Z0L-801)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 2 left!

0

2

Honda 16555-Z0L-801

ROD-GOVERNOR (engine serial numbers starting at 6349023)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-Z0L-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

4

Honda 16562-ZM0-000

SPRING-RETURN, THROTTLE

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 8

0

5

Honda 16576-ZE7-300

Spring-Lever

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 10

0

7

Honda 16580-ZM0-J23

BASE-CONTROL

Note: Obtain parts from www.honda-engines.com

$34.99

$

In Stock, only 1 left!

0

8

Honda 16593-ZM0-000

SPRING-RETURN, CONTROL LEVER

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

9

Honda 16674-ZM0-000

ROD-CHOKE

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 1 left!

0

10

Honda 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

11

Honda 90016-ZM0-000

BOLT-FLANGE (6X45) (CT200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

12

Honda 93500-05016-0A

Screw-Pan (5X16)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, Qty 7

0

13

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

14

Honda 35120-ZL8-003

ENGINE STOP SWITCH ASM

Note: Obtain parts from www.honda-engines.com

$14.99

$

In Stock, only 1 left!

0

15

Honda 93892-04012-00

SCREW-WASHER (4X12)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 8

0

16

Honda 94103-04000

WASHER-PLAIN (4MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 7

0

24

Honda 16617-VG3-000

HOLDER-CABLE

Note: Obtain parts from www.honda-engines.com

$6.49

$

In Stock, only 4 left!

0
