20192 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) MUFFLER ASSEMBLY HONDA GCV160L AS3A Parts Diagram

Super Bagger Walk-Behind Mower

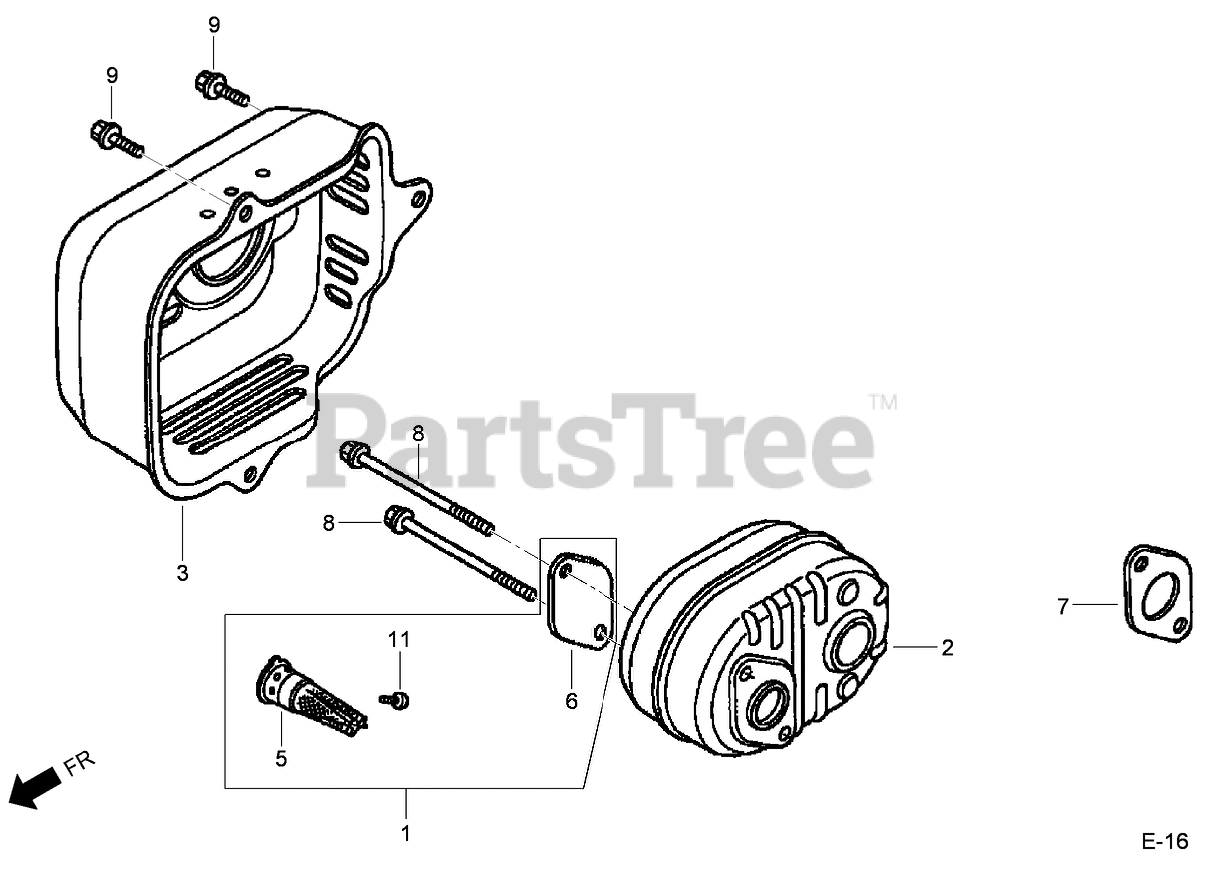

MUFFLER ASSEMBLY HONDA GCV160L AS3A Parts Diagram

  • Title

1

Honda 06180-Z0J-000

SPARK ARRESTER KIT (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$18.99

$

In Stock, only 1 left!

0

2

Toro 18310-ZM0-000

MUFFLER

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

3

Honda 18321-Z0L-J00

PROTECTOR-MUFFLER
(Superseded to 18321-Z0L-J01)

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

5

Honda 18350-ZL8-000

ARRESTER-SPARK (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$38.99

$

Usually ships in 3-6 days

0

6

Honda 18356-ZL8-000

PLATE-NUMBER, ARRESTER (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, only 2 left!

0

7

Honda 18381-ZL8-305

GASKET-MUFFLER (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$5.49

$

In Stock, Qty 17

0

8

Honda 90004-ZL8-000

BOLT-FLANGE (6X79) (C T200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

9

Honda 90013-883-000

BOLT-FLANGE (6X12) (C T200)

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 20+

0

11

Honda 90055-ZE1-000

SCREW-TAPPING (4X6) (Optional Equipment)

Note: Obtain parts from www.honda-engines.com

$1.49

$

In Stock, only 2 left!

0
