20192 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FLYWHEEL ASSEMBLY HONDA GCV160L AS3A Parts Diagram

Super Bagger Walk-Behind Mower

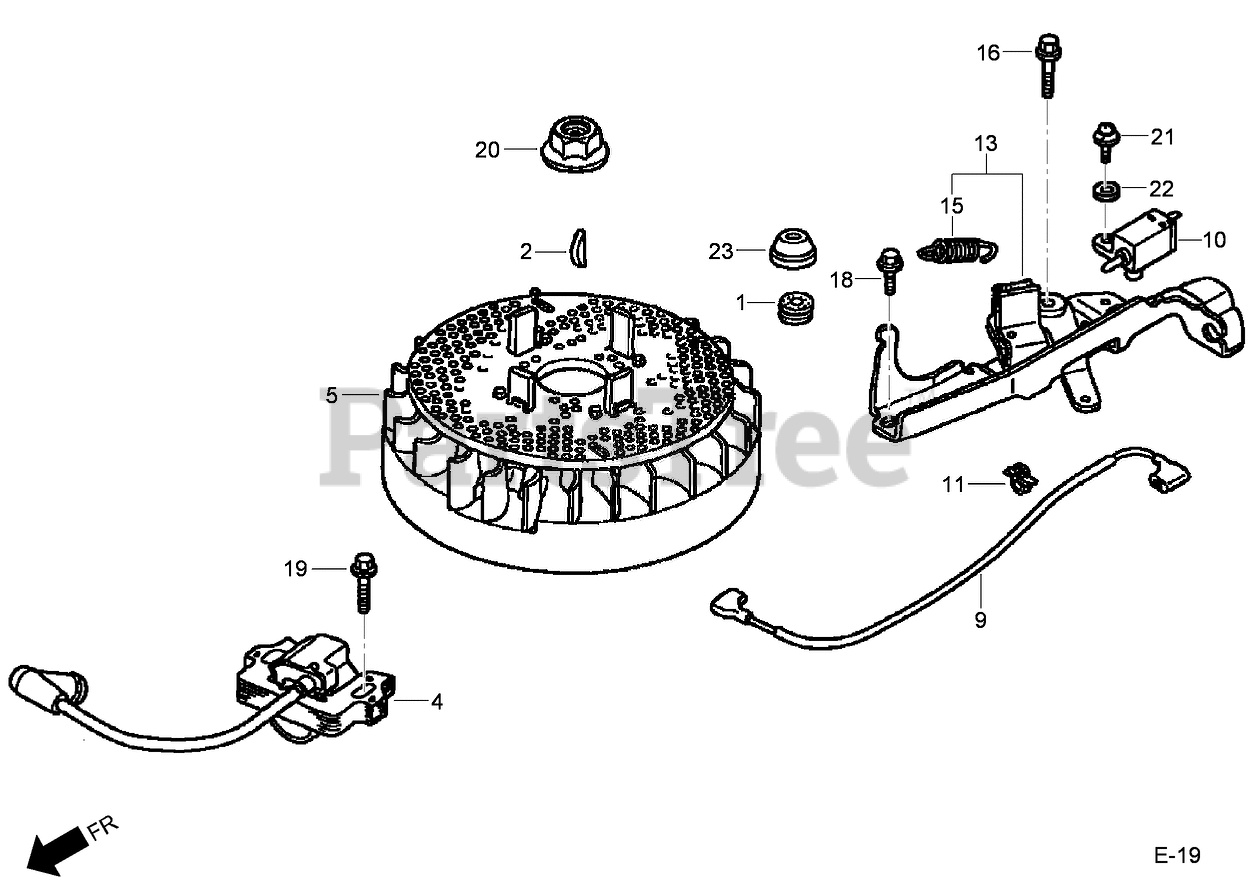

FLYWHEEL ASSEMBLY HONDA GCV160L AS3A Parts Diagram

  • Title

1

Honda 11344-MB0-000

GROMMET A-COVER, REAR (8X16X6.6) (engine serial numbers up to 7132770)

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

1

Honda 11344-Z0L-800

GROMMET A-COVER, REAR (8X16X8) (engine serial numbers up to 7132770)

Note: Obtain parts from www.honda-engines.com

$0.99

$

Usually ships in 3-6 days

0

2

Honda 13331-357-000

KEY-WOODRUFF, SPECIAL (25X18)

Note: Obtain parts from www.honda-engines.com

$4.99

$

In Stock, Qty 7

0

4

Honda 30500-ZL8-004

IGNITION COIL ASM (USE FOR FLYWHEEL OF TEC)
(Superseded to 30500-ZL8-014)

Note: Obtain parts from www.honda-engines.com

$54.99

$

Usually ships in 3-6 days

0

5

Honda 31105-ZM0-000

FLYWHEEL ASM (USE FOR IGNITION COIL OF TEC)

Note: Obtain parts from www.honda-engines.com

$60.99

$

In Stock, only 1 left!

0

9

Honda 32195-ZM0-800

WIRE-SWITCH, STOP

Note: Obtain parts from www.honda-engines.com

$11.99

$

In Stock, only 1 left!

0

10

Honda 35120-ZM0-003

ENGINE STOP SWITCH ASM (N C)

Note: Obtain parts from www.honda-engines.com

$12.99

$

In Stock, only 2 left!

0

11

Honda 51125-Z0L-003

HOLDER-WIRE (FASTEX)

Note: Obtain parts from www.honda-engines.com

$8.49

$

In Stock, only 1 left!

0

11

Honda 90681-959-003

CLIP A-CABLE (3.8MM BLACK) (NIFCO)

Note: Obtain parts from www.honda-engines.com

$3.99

$

Usually ships in 3-6 days

0

13

Toro 75110-Z0L-800

BRAKE ASM (engine serial numbers up to 7132770)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

13

Toro 75110-Z0Y-000

BRAKE ASM (engine serial numbers starting at 7132771)

Note: Obtain parts from www.honda-engines.com

$

$

Currently unavailable

15

Honda 75113-ZM0-000

SPRING-LEVER, BRAKE

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90018-ZE1-000

BOLT-FLANGE (6X23) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

18

Honda 90014-952-000

BOLT-FLANGE (6X14) (C T200)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 4 left!

0

19

Honda 90018-ZE1-000

BOLT-FLANGE (6X23) (C T200) (engine serial numbers starting at 6702083)

Note: Obtain parts from www.honda-engines.com

$2.49

$

In Stock, only 2 left!

0

19

Honda 90022-888-010

BOLT-FLANGE (6X20) (C T200) (engine serial numbers up to 6702082)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

20

Honda 90201-878-003

NUT-SPECIAL (14 mm)

Note: Obtain parts from www.honda-engines.com

$7.99

$

Usually ships in 3-6 days

0

21

Honda 93892-04012-00

SCREW-WASHER (4X12)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 8

0

22

Honda 94103-04000

WASHER-PLAIN (4MM)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 7

0

23

Honda 91601-Z0L-300

GROMMET-PLATE, BRAKE (engine serial numbers starting at 7132771)

Note: Obtain parts from www.honda-engines.com

$0.99

$

Usually ships in 3-6 days

0
