20192 - Toro Super Bagger Walk-Behind Mower (SN: 290000001 - 290999999) (2009) CONTROL ASSEMBLY HONDA GCV160L AS3A Parts Diagram

Super Bagger Walk-Behind Mower

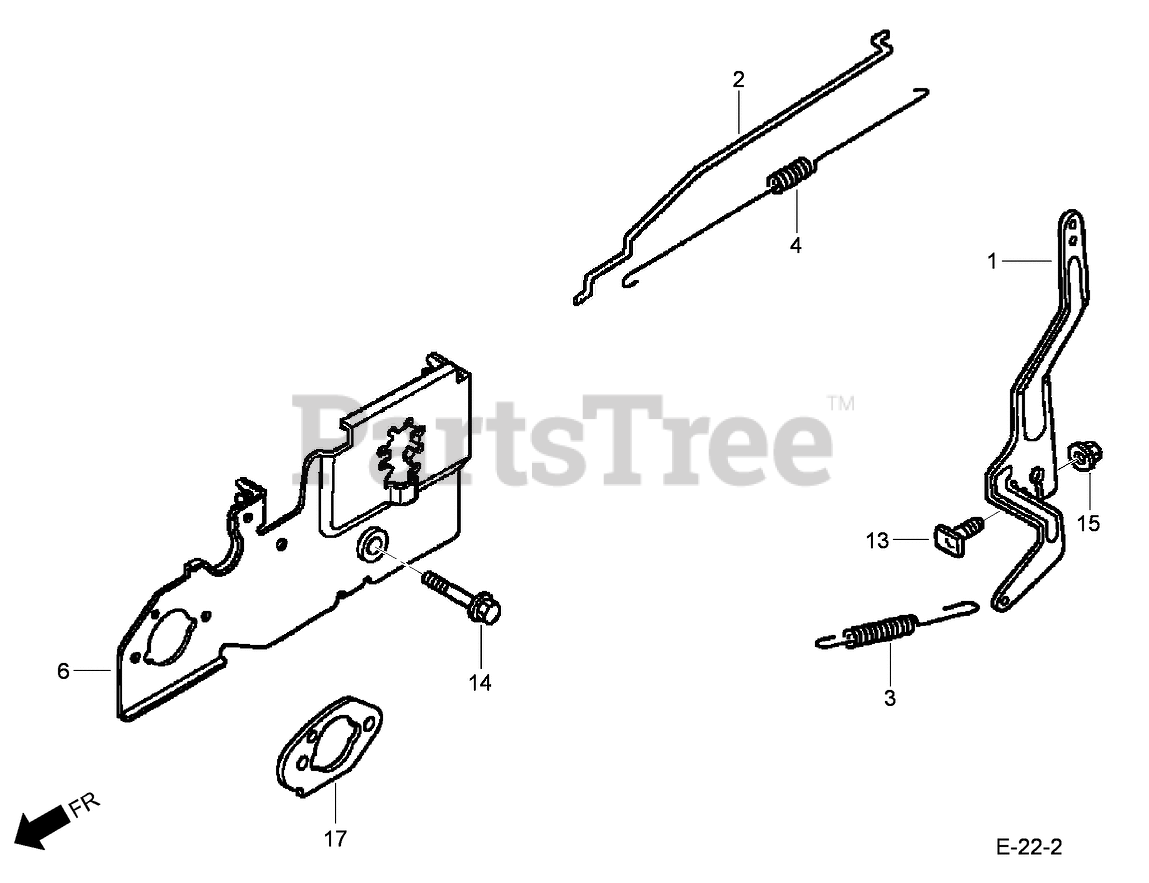

CONTROL ASSEMBLY HONDA GCV160L AS3A Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16555-Z0L-800

ROD-GOVERNOR (engine serial numbers up to 6349022)
(Superseded to 16555-Z0L-801)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 2 left!

0

2

Honda 16555-Z0L-801

ROD-GOVERNOR (engine serial numbers starting at 6349023)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-Z0L-000

SPRING-GOVERNOR

Note: Obtain parts from www.honda-engines.com

$1.99

$

In Stock, Qty 5

0

4

Honda 16562-ZM0-000

SPRING-RETURN, THROTTLE

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, Qty 8

0

6

Honda 16580-Z0L-810

BASE-CONTROL (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$148.99

$

Usually ships in 3-6 days

0

13

Honda 90015-ZE5-010

BOLT-ARM, GOVERNOR

Note: Obtain parts from www.honda-engines.com

$3.49

$

In Stock, only 3 left!

0

14

Honda 90016-ZE8-000

BOLT-FLANGE (6X45) (C T200) (engine serial numbers up to 6901760)

Note: Obtain parts from www.honda-engines.com

$2.99

$

In Stock, only 2 left!

0

15

Honda 94050-06000

NUT-FLANGE (6 mm)

Note: Obtain parts from www.honda-engines.com

$0.99

$

In Stock, Qty 20+

0

17

Honda 16221-Z0L-900

SPACER-CARBURETOR (engine serial numbers starting at 6901761)

Note: Obtain parts from www.honda-engines.com

$2.99

$

Usually ships in 3-6 days

0
