20182 - Toro Walk-Behind Mower (SN: 039000001 - 039999999) (1993) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

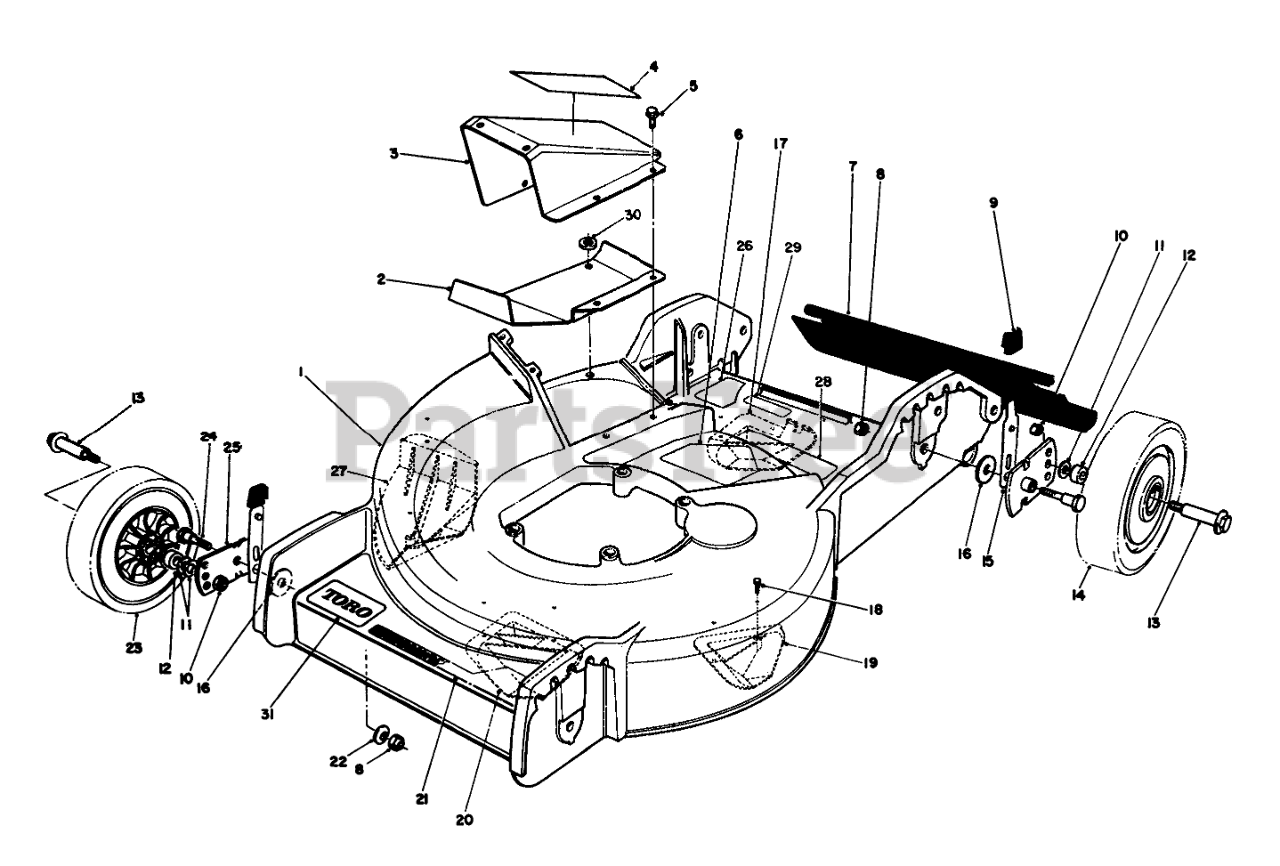

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 14-7389

Housing-18-(Incl. Ref. #6, 17-20, & 26-29)

$

$

Not available

2

Toro 85-7150

DISCHARGE KICKER

$

$

Not available

3

Toro 14-7369

Cover-Discharge (Incl. Ref. #4)

$

$

Not available

4

Toro 85-7060

DECAL - COVER

$

$

Not available

5

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

6

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

7

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

11

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

12

Toro 86-9680

WHEEL SPACER

$3.49

$

Usually ships in 3-6 days

0

13

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

14

Toro 27-6201

8" WHL & TIRE ASM

$

$

Not available

15

Toro 25-8000

SPRING ARM ASM

$

$

Not available

16

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

17

Toro 85-7130

KICKER

$

$

Not available

18

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 85-7110

KICKER

$

$

Not available

20

Toro 85-7120

KICKER

$

$

Not available

21

Toro 86-9750

DECAL - DECK

$

$

Not available

22

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

23

Toro 27-6211

7" WHL & TIRE ASM

$

$

Not available

24

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

25

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

26

Toro 82-8450

DECAL - DANGER

$

$

Not available

27

Toro 85-7140

KICKER

$

$

Not available

28

Toro 92-1780

DECAL - DANGER

$

$

Not available

29

Toro 92-1779

DECAL-WARNING

$9.49

$

Usually ships in 3-6 days

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0
