20181 WF - Toro 18" Recycler II Walk-Behind Mower (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 95902-3148-01 Parts Diagram

18" Recycler II Walk-Behind Mower

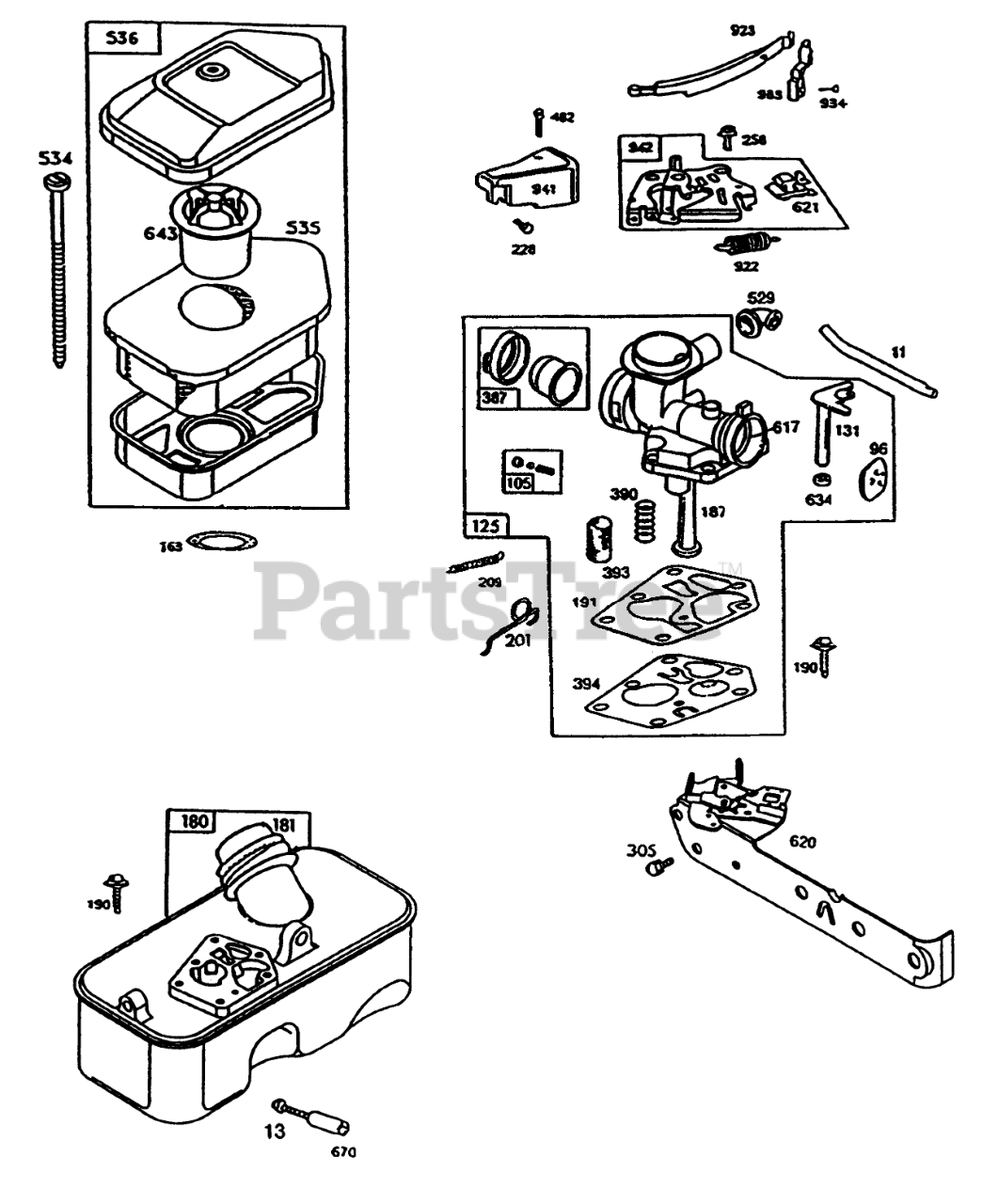

ENGINE BRIGGS & STRATTON MODEL 95902-3148-01 Parts Diagram

  • Title

11

Briggs & Stratton 231774

Tube-Breather
(Superseded to 691245)

$8.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93111

Screw-Cylinder Hd.
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

96

Briggs & Stratton 224412

Valve-Throtte
(Superseded to 691190)

$7.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 494409

Needle Valve Seat Assy.

$

$

Not available

125

Briggs & Stratton 494407

Carburetor Assembly
(Superseded to 498809)

$52.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 281047

Shaft and Lever-Throtte
(Superseded to 691931)

$19.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

Note: Included in Gasket Set-Part No. 298989.

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 494406

Tank Assembly-Fuel

$79.99

$

In Stock, only 4 left!

0

181

Briggs & Stratton 493982

Cap-Fuel Tank
(Superseded to 493982S)

$

$

Not available

187

Briggs & Stratton 493981

Pipe-Fuel Pick-Up
(Superseded to 496046S)

$8.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 93440

Screw-Fuel Tank
(Superseded to 692200)

$

$

Not available

191

Briggs & Stratton 272372

Gasket-Pump
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

201

Briggs & Stratton 262753

Link-Govemor
(Superseded to 690347)

$5.99

$

In Stock, Qty 10

0

209

Briggs & Stratton 262760

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

228

Briggs & Stratton 93490

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

258

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

305

Briggs & Stratton 94153

Screw-Blo. Hsg. Mtg.
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

387

Briggs & Stratton 494408

Primer Bulb Assy.
(Superseded to 694394)

$4.49

$

In Stock, Qty 12

0

390

Briggs & Stratton 262764

Spring-Diaphragm
(Superseded to 691839)

$5.99

$

In Stock, Qty 5

0

393

Briggs & Stratton 262734

Screen-Jet
(Superseded to 691837)

$7.49

$

In Stock, only 3 left!

0

394

Briggs & Stratton 281028

Diaphragm-Carburetor
(Superseded to 795083)

$4.49

$

In Stock, Qty 20+

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

Grommet
(Superseded to 692189)

$4.49

$

In Stock, Qty 16

0

534

Briggs & Stratton 93865

Screw-Air Cleaner
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

535

Briggs & Stratton 272235

Element-Air Cleaner
(Superseded to 272235S)

$5.99

$

In Stock, Qty 6

0

536

Briggs & Stratton 493492

Cleaner Assembly-Air
(Superseded to 698472)

$

$

Not available

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 494630

Plate-Carb. Control
(Superseded to 691446)

$39.99

$

In Stock, only 4 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 281080

Seal-Throtte Shaft
(Superseded to 691321)

$4.99

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280972

Cup-Air Cleaner
(Superseded to 691911)

$9.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94038

Spacer-Fuel Tank
(Superseded to 691631)

$5.99

$

Usually ships in 2-12 days

0

922

Briggs & Stratton 261647

Spring-Brake
(Superseded to 691809)

$8.49

$

Usually ships in 2-12 days

0

923

Briggs & Stratton 394867

Band Brake Assy.

$39.99

$

Usually ships in 2-12 days

0

933

Briggs & Stratton 223448

Pivot-Band Brake
(Superseded to 690428)

$5.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 94037

Screw-Brake Pivot
(Superseded to 690324)

$3.49

$

Usually ships in 2-12 days

0

941

Briggs & Stratton 280395

Cover-Linkage

$

$

Not available

942

Briggs & Stratton 493248

Bracket Assembly-Lever

$10.99

$

Usually ships in 2-12 days

0
