20111x92C - Briggs & Stratton 20" Walk-Behind Mower (2002) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

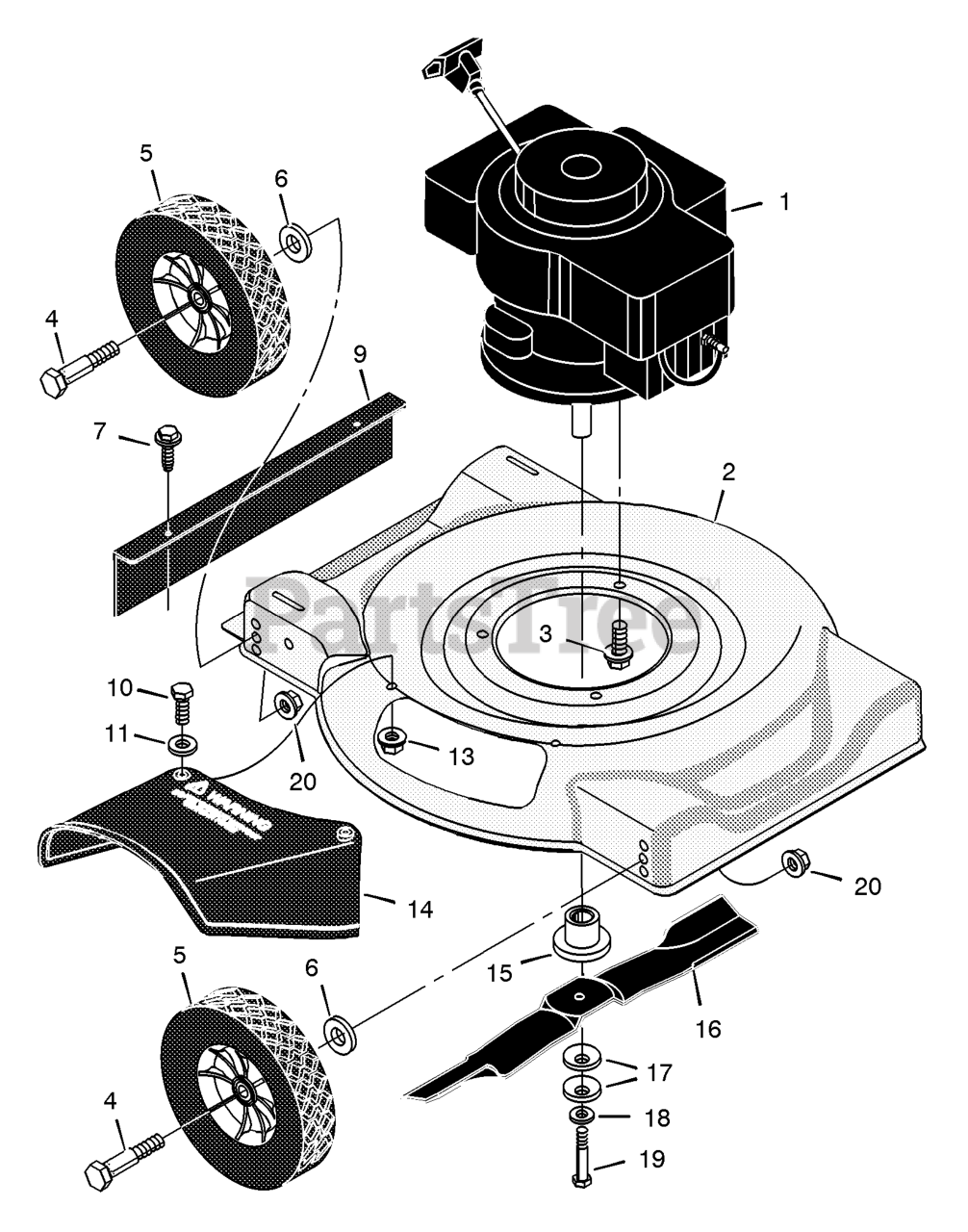

Mower Housing Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 7950007MA

Housing

$364.99

$

Usually ships in 2-12 days

0

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 009X10MA

Bolt, Axle

$

$

Not available

5

Murray 020270MA

Wheel and Tire
(Superseded to 336546MA)

$

$

Not available

6

Murray 000845

Washer

$6.49

$

Usually ships in 2-12 days

0

7

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

9

Murray 671912MA

Deflector, Rear

Note: (Included with Ref. No. 2)

$14.99

$

In Stock, only 2 left!

0

10

Murray 01X121

Bolt

$

$

Not available

11

Murray 017X37 Z

Washer

$

$

Currently unavailable

13

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929MA

Deflector, Chute

Note: (Included with Ref. No. 2)

$27.99

$

Usually ships in 2-12 days

0

15

Murray 071056MA

Blade Adapter

$10.99

$

Usually ships in 2-12 days

0

16

Murray 042785E701MA

Blade - 20

$23.99

$

Usually ships in 2-12 days

0

17

Murray 17X137MA

Washer, Blade

$5.49

$

Usually ships in 2-12 days

0

18

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

19

Murray 01X142MA

Bolt

$8.49

$

In Stock, only 2 left!

0

20

Murray 015X68MA

Locknut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

--

Murray 672733MA

Loose Parts Hardware Bag

$22.99

$

In Stock, only 1 left!

0

--

Murray 48X405MA

Warning, OPEI '98

Note: (Included with Ref. No. 2)

$56.99

$

Usually ships in 2-12 days

0

--

Murray 44X6458

Cut Finger

Note: (Included with Ref. No. 2)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 44X7329MA

Warning, Install Chute

Note: (Included with Ref. No. 2)

$8.99

$

Usually ships in 2-12 days

0

--

Murray F-020403L

Book, Instruction

$

$

Currently unavailable
