20111x194D - Briggs & Stratton 20" Walk-Behind Mower (2003) Handle Assembly Parts Diagram

20" Walk-Behind Mower

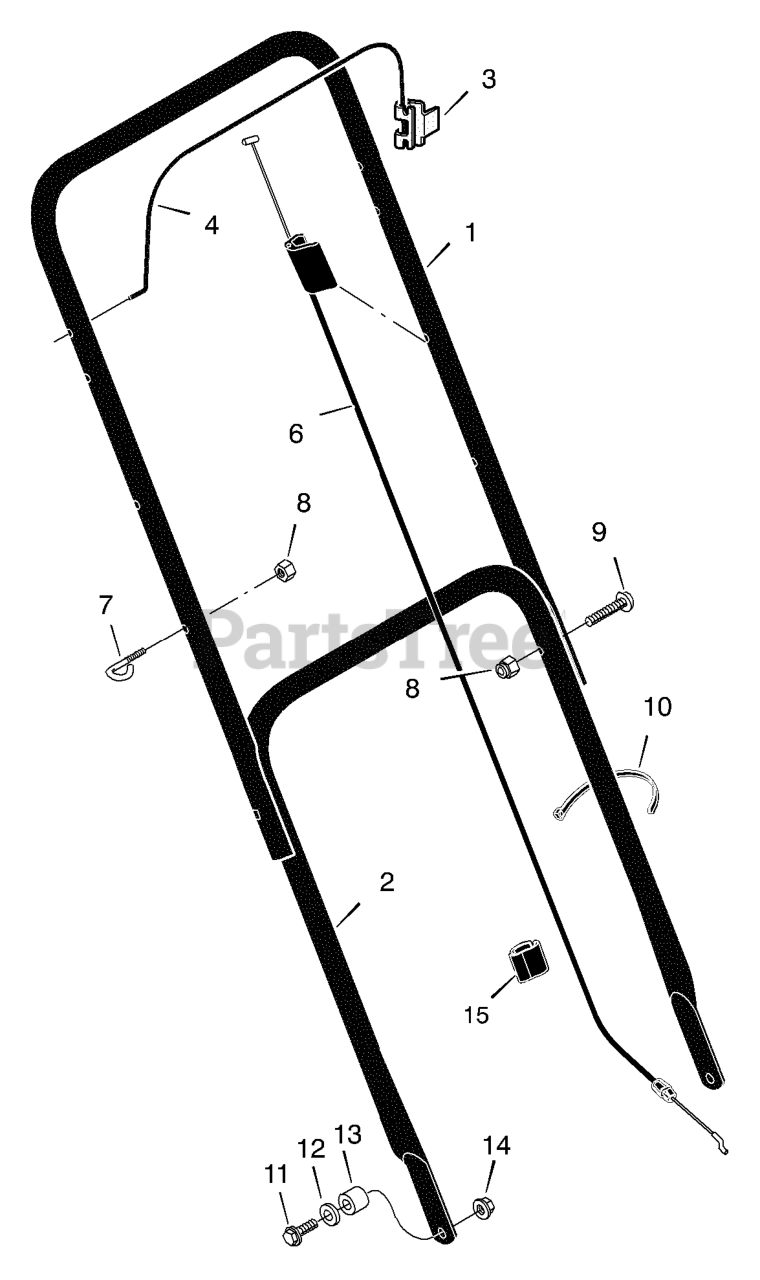

Handle Assembly Parts Diagram

  • Title

1

Murray 1101095E701MA

Handle, Upper (Black)
(Superseded to 7101741AYP)

$43.99

$

Usually ships in 2-12 days

0

2

Murray 672874E701MA

Handle, Lower (Black)

$113.99

$

Usually ships in 2-12 days

0

3

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 1 left!

0

4

Murray 671924E701MA

Lever, Stop
(Superseded to 7101742AYP)

$6.49

$

Usually ships in 2-12 days

0

6

Murray 1101093MA

Engine Stop Cable

$14.99

$

Usually ships in 2-12 days

0

7

Murray 043956MA

GUIDE, ROPE

$

$

Not available

8

Murray 015X68MA

Locknut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 03X136MA

Screw

$3.49

$

Usually ships in 2-12 days

0

10

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

11

Murray 01X111MA

Bolt

$4.49

$

In Stock, only 1 left!

0

12

Murray 000845

Washer

$6.49

$

Usually ships in 2-12 days

0

13

Murray 671914MA

Spacer

$7.49

$

Usually ships in 2-12 days

0

14

Murray 015X84MA

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 1101353MA

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

--

Murray 48X4035

Decal, Warning Symbols

$10.99

$

Usually ships in 2-12 days

0

--

Murray 48X4033MA

Decal, Cut Finger

$11.99

$

Usually ships in 2-12 days

0

--

Murray 48X116

Decal, Install Chute

$8.99

$

Usually ships in 2-12 days

0
