20111x14B - Murray 20" Walk-Behind Mower (2001) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

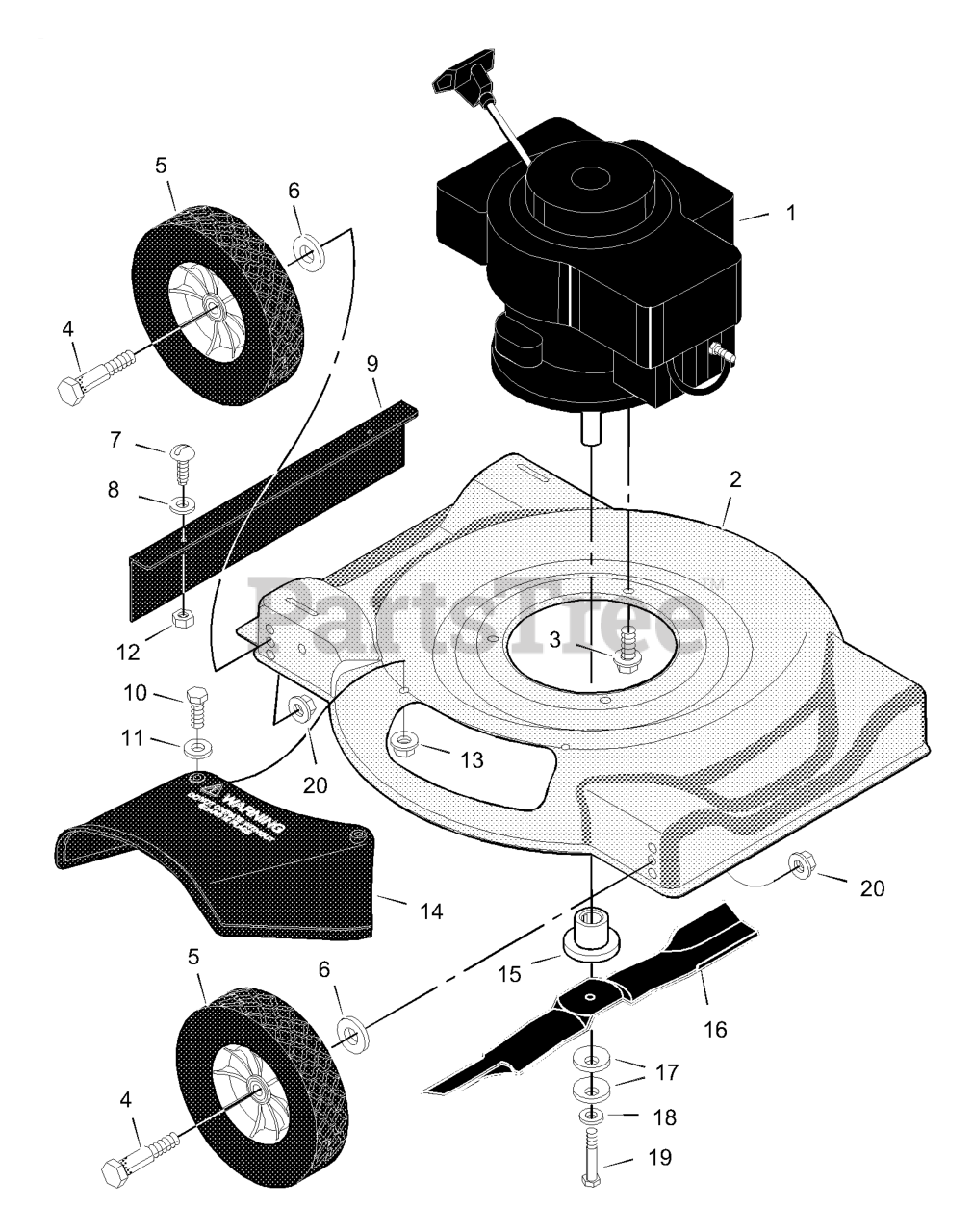

Mower Housing Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 7950007MA

Housing

$364.99

$

Usually ships in 2-12 days

0

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 009X10MA

Bolt, Axle

$

$

Not available

5

Murray 020270MA

Wheel and Tire
(Superseded to 336546MA)

$

$

Not available

6

Murray 000845

Washer

$6.49

$

Usually ships in 2-12 days

0

7

Murray 26X235MA

Screw

$4.49

$

Usually ships in 2-12 days

0

8

Murray 017X38 Z

Washer

$

$

Currently unavailable

9

Murray 671912MA

Deflector, Rear

$14.99

$

In Stock, only 2 left!

0

10

Murray 01X121

Bolt

$

$

Not available

11

Murray 017X37MA

Washer
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

12

Murray 15X102MA

Nut

$3.99

$

Usually ships in 2-12 days

0

13

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

14

Murray 671929MA

Deflector, Chute

$27.99

$

Usually ships in 2-12 days

0

15

Murray 071056MA

Blade Adapter

$10.99

$

Usually ships in 2-12 days

0

16

Murray 042785E701MA

Blade - 20"

$23.99

$

Usually ships in 2-12 days

0

17

Murray 17X137MA

Washer, Blade

$5.49

$

Usually ships in 2-12 days

0

18

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

19

Murray 01X142MA

Bolt

$8.49

$

In Stock, only 2 left!

0

20

Murray 015X68MA

Locknut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

--

Murray F-010450L

Book, Instruction

$

$

Currently unavailable
