20107 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

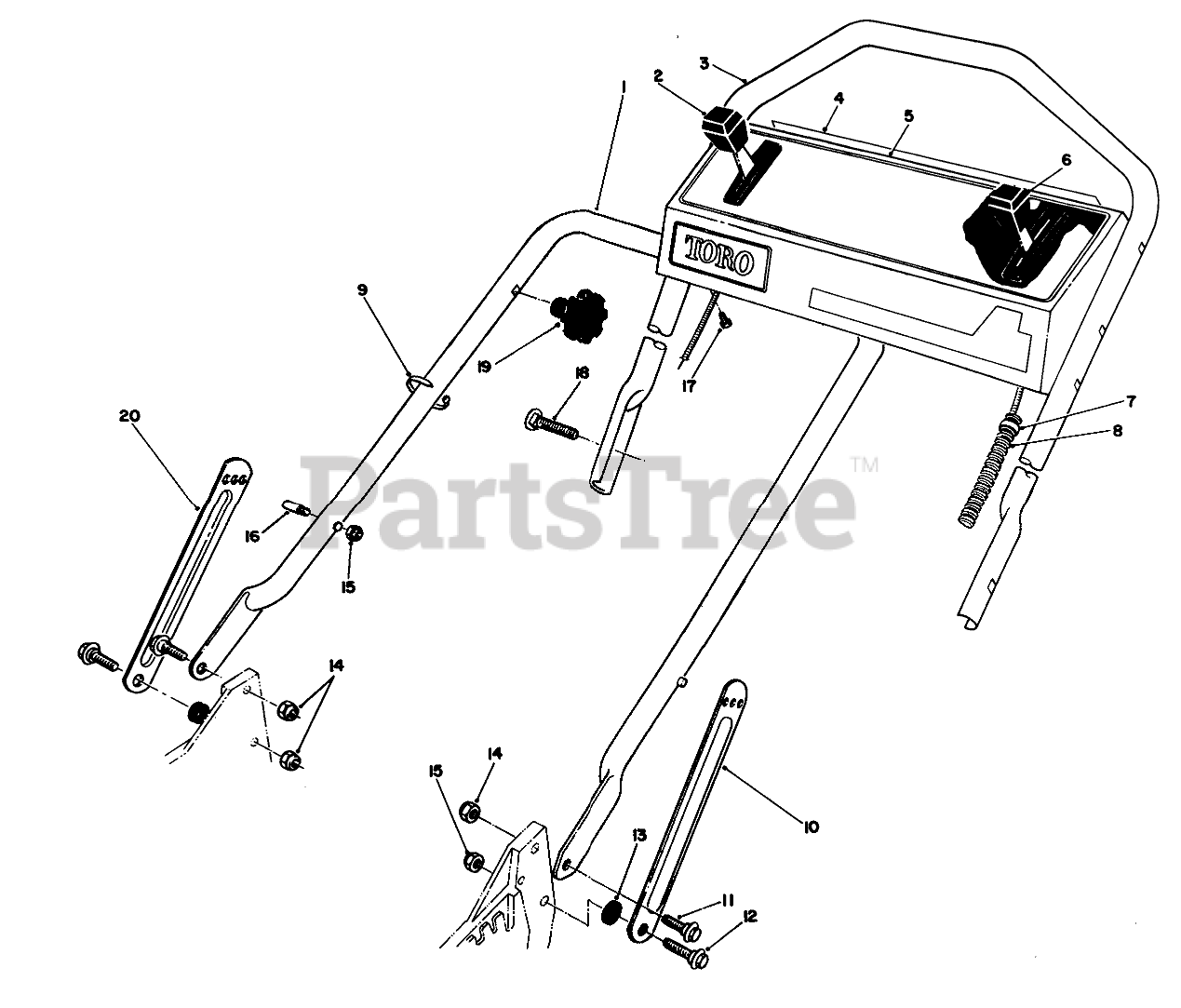

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 82-5530

LOWER HANDLE ASM

$

$

Not available

2

Toro 76-2711

Control-Ground Speed
(Superseded to 76-2712)

$45.99

$

In Stock, only 2 left!

0

3

Toro 46-5410

UPPER HANDLE

$

$

Not available

4

Toro 63-9060

DECAL-PANEL, DANGER

$

$

Not available

5

Toro 14-4099

Panel-Control (Incl. Ref. #4)
(Superseded to 16-1619)

$

$

Not available

6

Toro 66-0236

THROTTLE CONTROL

$139.99

$

Usually ships in 3-6 days

0

7

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

8

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

10

Toro 84-8360

LH HANDLE LATCH

$20.99

$

Usually ships in 3-6 days

0

11

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 7

0

12

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 11

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

16

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$38.99

$

Usually ships in 3-6 days

0

17

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

18

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

19

Toro 19-4050

KNOB

$18.99

$

In Stock, only 3 left!

0

20

Toro 84-8400

RH HANDLE LATCH

$

$

Not available
