20107 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

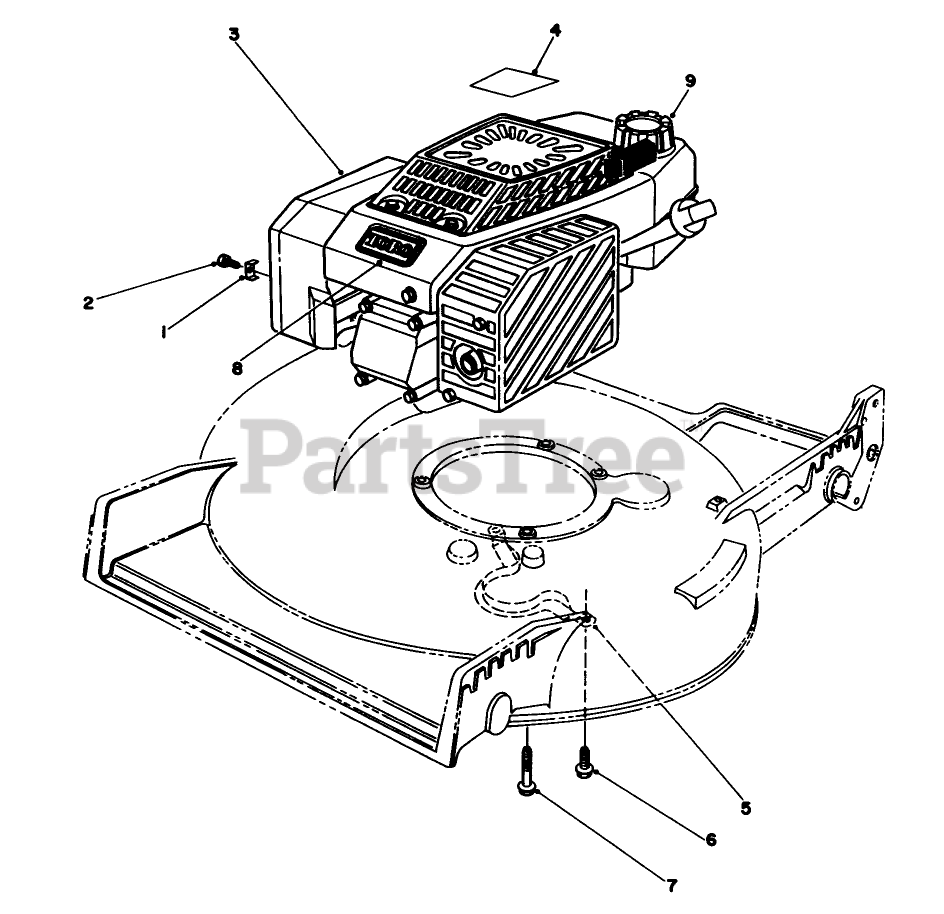

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

2

Toro 2210-313

Screw
(Superseded to 86-7990)

$3.49

$

Usually ships in 3-6 days

0

3

Toro 77-8980

Engine (Incl. Ref. #4 & 8)
(Superseded to 77-9280)

$1086.99

$

In Stock, only 1 left!

0

4

Toro 80-4800

DECAL - ENGINE

$

$

Not available

5

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 76-4710

TORO LOGO PLATE

$

$

Not available

9

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0
